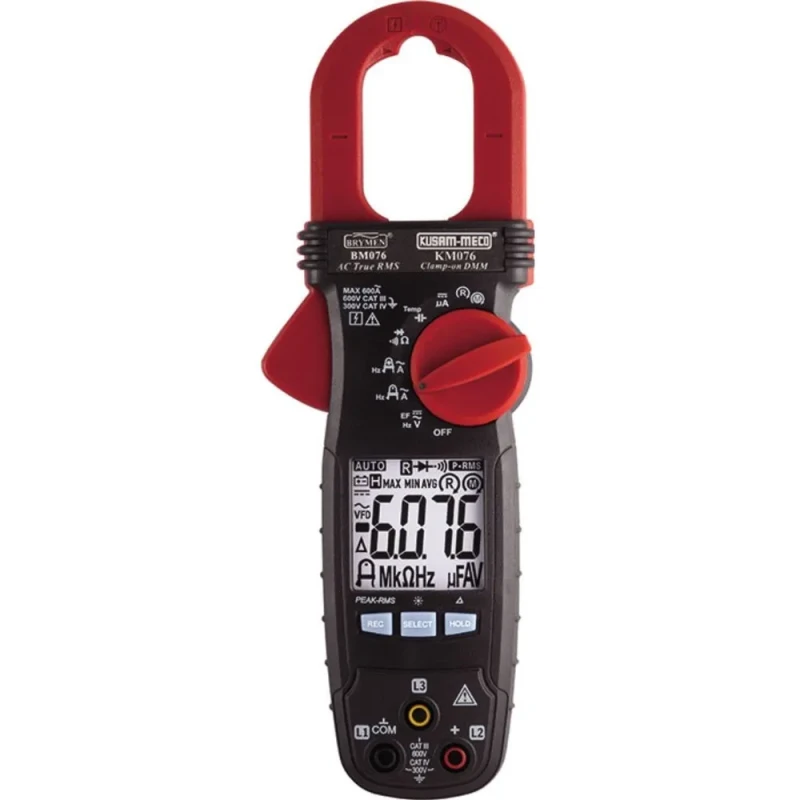

Kusam Meco Digital Clamp Meter KM076

Name: Kusam Meco Digital Clamp Meter KM076
Brand: KUSAM-MECO
SKU: ADPHO
Price: 149.07 USD
Availability: InStock



SKU ADPHO Category Clamp Meters Brand KUSAM-MECO Condition New

Specifications

Country of Origin	India
Package Contents	Kusam Meco KM076 Digital Clamp Meter / Test Leads Set / Users Manual / Soft Carrying Pouch / Bkp60 Banana Plug K-Type Thermocouple / Alligator Clip Set
Power Consumption	Typical 4.3 MA
Display	3~5/6 Digits 6000 Counts
Relative Humidity	Max 80% RH Up To 31°C Decreasing Linearly To 50% RH
Brand	Kusam Meco
Power Supply	1.5 V AAA Battery×2
Dimension	217(L)×76(W)×37(H) mm
Storage Temperature	-20°C~60°C Less Than 80% RH(Battery Removed)
Function	Digital Clamp Meter
Altitude	Less Than 2000 M
Model	KM076
Temperature	0°C~40°C
Weight	Approx 186 G
Temperature Coefficient	0.15×(Specified Accuracy)/°C
Sensing	AC True RMS
Update Rate	5 per second nominal
Polarity	Automatic
Low Battery	Below Approx 2.85 V For Capacitance & Hz Below Approx 2.5 V For Other Functions
APO Timing	Idle For 32 Minutes
APO Consumption	Typical 5 µA
Jaws Opening Size & Conductor Diameter	30mmMax

Key Features

AmpTip low-current range calibrated for precision in slim conditions
MAX/MIN/AVG recording with auto-ranging functionality
VFD-V & Hz mode for variable frequency drives
Non-contact EF detection and 80ms peak-RMS capture
Supports 3-phase rotation testing with probe contact

Product Description

The Kusam Meco KM076 Digital Clamp Meter is a professional-grade True RMS device ideal for precise AC measurements up to 600A. Featuring AmpTip technology for low-current precision and VFD-V & Hz functions for testing variable frequency drives, it ensures consistent results across complex systems. The meter also includes EF detection for live wire identification and a bright backlit LCD display for visibility in all environments. Additional functions include phase rotation and MAX/MIN readings. Compact and rugged, the KM076 provides reliability for industrial maintenance, repair, and testing applications.

Available on EnvMart, these Clamp Meters feature True RMS accuracy with AmpTip and VFD-Hz functions. Kusam Meco Devices deliver precision for electrical diagnostics and field measurements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Kusam Meco KM076 Digital Clamp Meter can measure AC currents up to 600A.

The KM076 includes VFD-V and Hz functions specifically designed for testing variable frequency drives.

The KM076 features a display that can show 3 to 5/6 digits with a maximum of 6000 counts.

The Kusam Meco KM076 operates on two 1.5 V AAA batteries.

The KM076 weighs approximately 186 grams.

The dimensions of the Kusam Meco KM076 are 217 mm in length, 76 mm in width, and 37 mm in height.

The jaws of the Kusam Meco KM076 can accommodate conductors with a maximum diameter of 30 mm.

The operating temperature range for the Kusam Meco KM076 is from 0°C to 40°C.

The KM076 comes with a test leads set, user manual, soft carrying pouch, BKP60 banana plug K-type thermocouple, and an alligator clip set.

The Kusam Meco KM076 can operate in relative humidity conditions of up to 80% RH at 31°C, decreasing linearly to 50% RH.

The KM076 indicates low battery when the voltage drops below approximately 2.85 V for capacitance and Hz functions, and below 2.5 V for other functions.

The maximum altitude for operating the Kusam Meco KM076 is less than 2000 meters.
