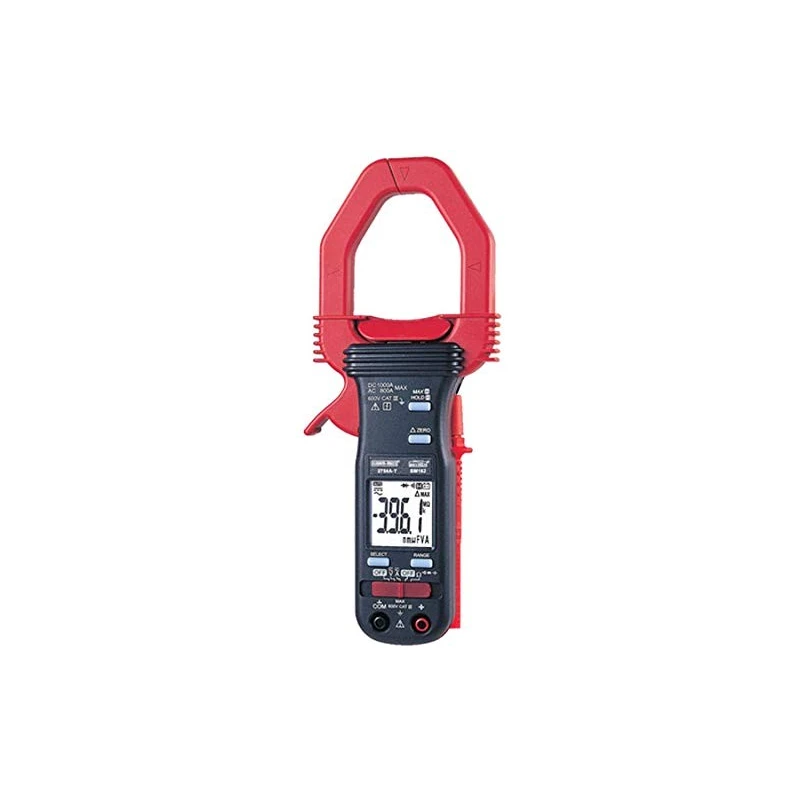

Kusam Meco Digital Clamp Meter 2754A(T)
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusma Meco 2754A(T) Digital Clamp Meter / Test Lead Pair / Batteries Installed / User’s Manual / Carrying Case |
| Power Consumption | 11 MA(DCA/ACA)&2.9 MA Other Functions |
| Display | 3¾ Digits 4000 Counts |
| Relative Humidity | Max 80% RH Up To 31°C Decreasing Linearly To 50% RH |
| Brand | Kusam Meco |
| Power Supply | 1.5 V AAA×2 |
| Dimension | 227(L)×78(W)×40(H) mm |
| Storage Temperature | -20~60°C Less Than 80% RH |
| Function | Digital Clamp Meter |
| Altitude | Less Than 2000 M |
| Model | 2754A(T) |
| Temperature | 0~40℃ |
| Weight | Approx 290 G |
| Temperature Coefficient | 0.15×(Specified Accuracy)/°C |
| Sensing | AC TRMS Voltage & Current Functions |
| Update Rate | 3 per second nominal |
| Polarity | Automatic |
| Pollution Degree | 2 |
| Low Battery | Below Approx 2.5 V |
| APO Timing | Idle 30 Minutes |
| APO Consumption | 190 µA Typical |
| Jaws Opening Size | 50mmMax |
| Transient Protection | 6.5 KV(1.2/50 µs) Surge |
| DC Voltage Range/Accuracy | 400 MV/±(0.3%Rdg+3dgt) 4 V/±(0.5%Rdg+3dgt) 40 V/±(0.5%Rdg+3dgt) 400 V/±(0.5%Rdg+3dgt) 600 V/±(1.0%Rdg+4dgt) |
| AC Voltage Range/Accuracy | 400 MV/±(4.0%Rdg+4dgt) 4 V/±(1.0%Rdg+4dgt) 40 V/±(1.0%Rdg+4dgt) 400 V/±(1.0%Rdg+4dgt) 600 V/±(2.0%Rdg+4dgt) |
| DC Current Range/Accuracy | 400 A/±(1.5%Rdg+4dgt) 1000 A/±(2.0%Rdg+4dgt) |
| AC Current Range/Accuracy | 400 A/±(2.0%Rdg+5dgt) 800 A/±(1.5%Rdg+5dgt) 1000 A/±(2.0%Rdg+5dgt) |
| Resistance Range/Accuracy | 400 Ω/±(0.8%Rdg+6dgt) 4 KΩ/±(0.6%Rdg+4dgt) 40 KΩ/±(0.6%Rdg+4dgt) 400 KΩ/±(0.6%Rdg+4dgt) 4 MΩ/±(1.0%Rdg+4dgt) 40 MΩ/±(2.0%Rdg+4dgt) |
| Capacitance Range/Accuracy | 500 NF/±(3.5%Rdg+6dgt) 5 µF/±(3.5%Rdg+6dgt) 50 µF/±(3.5%Rdg+6dgt) 500 µF/±(3.5%Rdg+6dgt) 3000 µF/±(3.5%Rdg+6dgt) |
Key Features
- DC 1000A / AC 800A clamp meter with full multimeter functions
- Auto-ranging and ergonomic handheld design
- Backlit display with 30ms in-rush current capture
- Data hold, MAX hold, and relative zero modes
- Fast continuity and diode test with auto power-off
Product Description
The Kusam Meco KM2754A-T Digital Clamp Meter is an advanced TRMS instrument designed for accurate current and voltage measurement. It handles up to 1000A DC and 800A AC with a wide 50mm jaw opening and 4000-count LCD for precise readings. Equipped with backlight, Max Hold, and auto-ranging functions, it simplifies complex measurements in industrial settings. Built for durability and safety, this clamp meter supports inrush current analysis and overload protection. Ideal for electricians, technicians, and maintenance teams, the KM2754A-T ensures accuracy, stability, and reliability across all electrical testing tasks.
Available on EnvMart, these Digital Clamp Meters measure up to 1000 A DC and 800 A AC with TRMS accuracy. Kusam Meco Instruments ensure dependable performance for industrial and maintenance testing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco Digital Clamp Meter 2754A(T) can measure up to 1000A DC and 800A AC.
The clamp meter features a 3¾ digit LCD display with a maximum count of 4000 counts.
The jaw opening size of the Kusam Meco Digital Clamp Meter 2754A(T) is 50mm.
The power supply for the Kusam Meco Digital Clamp Meter 2754A(T) is 1.5 V AAA batteries, with two batteries installed.
For AC current measurements, the accuracy is ±(2.0% reading + 5 digits) for 800 A and ±(1.5% reading + 5 digits) for 400 A.
The meter includes features such as auto-ranging, a backlit display, Max Hold, and modes for data hold and relative zero.
The weight of the Kusam Meco Digital Clamp Meter 2754A(T) is approximately 290 grams.
The operating temperature range for the Kusam Meco Digital Clamp Meter 2754A(T) is 0 to 40°C.
The package includes the Kusam Meco 2754A(T) Digital Clamp Meter, a test lead pair, batteries installed, a user’s manual, and a carrying case.
The resistance measurement range is from 400 Ω to 40 MΩ, with varying accuracy from ±(0.6% reading + 4 digits) to ±(2.0% reading + 4 digits) depending on the range.
The Kusam Meco Digital Clamp Meter 2754A(T) has a transient protection rating of 6.5 kV (1.2/50 µs) surge.
The maximum relative humidity tolerance for the Kusam Meco Digital Clamp Meter 2754A(T) is 80% RH at up to 31°C, decreasing linearly to 50% RH.
