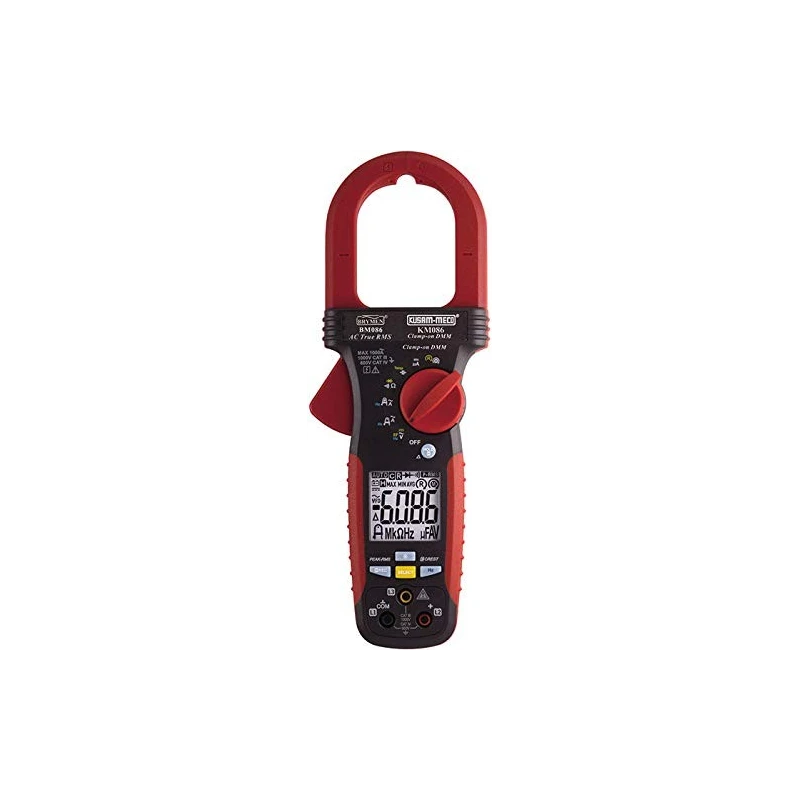

Kusam Meco Ul Approved Digital Clampmeter KM86

Name: Kusam Meco Ul Approved Digital Clampmeter KM86
Brand: KUSAM-MECO
SKU: ADPBZ
Price: 180.38 USD
Availability: InStock



SKU ADPBZ Category Clamp Meters Brand KUSAM-MECO Condition New

Specifications

Country of Origin	India
Package Contents	Kusam Meco KM 086 UL ' APPROVED DIGITAL CLAMPMETER / Test Leads Set / Users Manual / Soft Carrying Pouch / Bkp60 Banana Plug K-Type Thermocouple / Alligator Clip Set / BKB32 Banana Plug To Type-K Socket Plug Adaptor (For Optional Purchase)
Power Consumption	4.3mA
Display	3.5/6 Digits 6000 Counts
Relative Humidity	Max 90%RH
Brand	Kusam Meco
Power Supply	1.5V AA×2
Dimension	217L×76W×37H mm
Storage Temperature	-20°C~60°C / Less Than 80%RH(Battery Removed)
Altitude	Below 2000m(Storage Below 12000m)
Model	KM86
Temperature	-10°C~40°C
Weight	Approx 312g
Sensing	AC True RMS
Update Rate	5 Per Second
Polarity	Automatic
Low Battery	Below 2.85V Capacitance & Hz / 2.5V Others
APO Timing	Idle 32min
APO Consumption	5µA
Temp Coefficient	10×(Specified Accuracy)/°C
Jaws Opening	30mm Max

Key Features

AmpTip low-current jaw for high precision in slim conditions
Auto-ranging MAX/MIN/AVG recording mode
VFD-V & Hz for variable-frequency drive testing
Non-contact EF-Detection with back-lit display
3-phase rotation functions for mains and motor testing

Product Description

Kusam Meco KM86 UL Approved Digital Clamp Meter is a professional True RMS instrument that measures AC/DC current up to 1000A. It features a 51mm jaw opening and AmpTip technology for high accuracy at low currents. The device also includes 3 phase rotation detection and VFD-V/Hz functions. Its NCV detection, backlit display, and rugged design make it reliable for industrial and electrical maintenance tasks. Ideal for power engineers, it ensures stable readings and advanced safety for high-demand applications.

Available on EnvMart, these Clamp Meters are UL-approved for safety and accuracy in professional applications. Kusam Meco Meters guarantee consistent performance and reliable measurements for technicians.

Kusam Meco Ul Approved Digital Clampmeter KM86

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Kusam Meco KM86 clamp meter can measure AC/DC current up to 1000A.

The KM86 features AmpTip technology that provides high accuracy in low current conditions, along with a 51mm jaw opening.

The KM86 has a display that can show 3.5/6 digits with a maximum count of 6000 counts.

The Kusam Meco KM86 requires a power supply of 1.5V AA batteries, specifically two batteries.

The operating temperature range for the KM86 is from -10°C to 40°C.

The dimensions of the Kusam Meco KM86 are 217L x 76W x 37H mm, and it weighs approximately 312g.

Yes, the Kusam Meco KM86 includes non-contact voltage (NCV) detection as one of its features.

The KM86 provides VFD-V and Hz functions for variable-frequency drive testing, as well as 3-phase rotation detection.

The relative humidity tolerance for the Kusam Meco KM86 is a maximum of 90% RH.

The package includes the Kusam Meco KM86 digital clamp meter, test leads set, user manual, soft carrying pouch, K-type thermocouple, and alligator clip set.

The storage temperature range for the Kusam Meco KM86 is from -20°C to 60°C, with less than 80% relative humidity and battery removed.

The update rate of the Kusam Meco KM86 is 5 readings per second.
