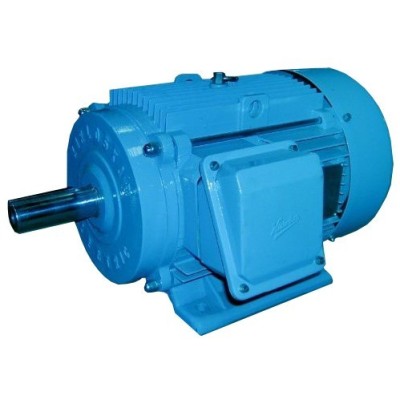

Kirloskar 132 kW/180 HP 6 Pole 415V 3 Phase IE2 Foot Mounted Induction Motor (RC315L)
Specifications
| Frequency | 50 Hz5% |
|---|---|
| Type | Induction Motor |
| Voltage (V) | 415V10% |
| Mounting | Foot Mounted |
| Model | EF158 |
| Insulation Class Type | Class F |
| class | B |
| Protection Class | IP55 |
| Ambient Temperature (ºC) | 0-50 ºC |
| Rated Voltage (V) | 415V |
| Cooling | IC 411 |
| Casing | Squirrel Cage |
| Pole | 6 |
| Frame | RC315L |
| Output Power Rating (kW) | 132 kW |
| Squirrel Cage | IE2 Efficiency |
| Combined Variations | 0.1 |
Key Features
- IE2 level efficiency as per IS 12615 - 2011 and IEC 60034-30
- High starting and pull-up torgues to accelerate the load.
- Robust and shock resistant stator construction with optimally designed ribs for cooling.
- Die-cast aluminum rotors designed to withstand the severe forces encountered during starting.
Product Description
Kirloskar 132 kW / 180 hp 6 pole 415 V 3 phase induction motor is ideal for industrial applications such as heavy duty compressors, pumps, fans, conveyor belts, etc. This motor has been designed to meet the requirements of industries like food processing, pharmaceuticals, chemical, petrochemical, pulp & paper, power generation, oil & gas, mining, cement, steel, textile, etc. The motor can be used for both single speed and variable speed operation.
- Terminal box located at RHS from driving End.
- Large terminal boxes with sufficient electrical clearances and imporved aesthetics.
- Optimum fan design for better cooling & minimum energy consumption.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output power rating of this model is 132 kW, equivalent to 180 HP.
This induction motor operates at a rated voltage of 415V with a tolerance of 10%.
It is an induction motor with a squirrel cage design.
The insulation class type for this model is Class F.
The motor has a protection class rating of IP55.
This model can operate within an ambient temperature range of 0 to 50 ºC.
The motor operates at a frequency of 50 Hz with a tolerance of 5%.
This induction motor is designed for foot mounting.
The cooling method for this model is IC 411.
This model features a 6 pole configuration.
The terminal box is located at the right-hand side from the driving end.
