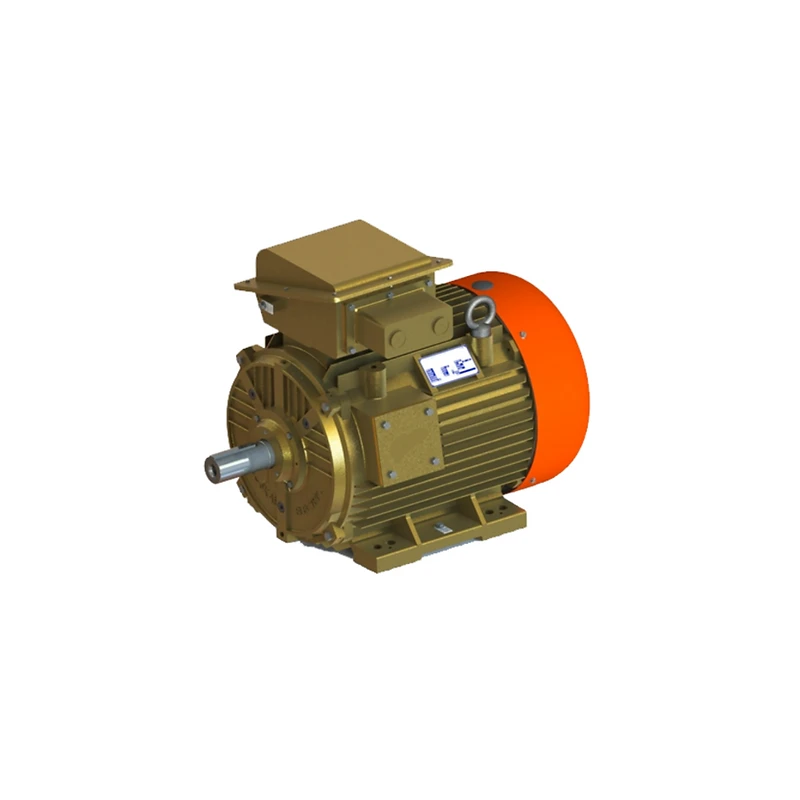

Kirloskar 2.2 kW/ 3 HP 8 Pole 415V 3 Phase IE2 Foot Mounted Induction Motor (RC132SM)
Specifications
| Frequency | 55 Hz |
|---|---|
| Type | Induction Motor |
| Voltage (V) | 415V10% |
| Mounting | Foot Mounted |
| Power Rating (kW) | 2.2 kW |
| Insulation Class Type | Class F |
| class | B |
| Protection Class | IP55 |
| Ambient Temperature (ºC) | 0-50 ºC |
| Rated Voltage (V) | 415V |
| Cooling | IC 411 |
| Casing | Squirrel Cage |
| Pole | 8 |
| Frame | RC132SM |
| Squirrel Cage | IE2 Efficiency |
| Combined Variations | 0.1 |
Key Features
- IE2 level efficiency as per IS 12615 - 2011 and IEC 60034-30
- High starting and pull-up torgues to accelerate the load.
- Robust and shock resistant stator construction with optimally designed ribs for cooling.
- Die-cast aluminum rotors designed to withstand the severe forces encountered during starting.
Product Description
Kirloskar 2.2 KW/ 3 HP 8 Pole 415V 3 Phase IE2 Foot Mounted Induction Motor (RC132SM) are used for induction motors up to 300 HP. The squirrel cage design provides superior cooling and high efficiency. These motors have been proven to be reliable and durable. They are available in various configurations and can be customized as per customer requirements.
- Terminal box located at RHS from driving End.
- Large terminal boxes with sufficient electrical clearances and imporved aesthetics.
- Optimum fan design for better cooling & minimum energy consumption.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kirloskar RC132SM induction motor has a power rating of 2.2 kW (3 HP).
This motor operates at a rated voltage of 415V with a tolerance of 10%.
The RC132SM is an induction motor, specifically designed with a squirrel cage construction.
The frequency specification for the Kirloskar RC132SM motor is 55 Hz.
The protection class of this motor is IP55, which indicates a good level of protection against dust and water.
The ambient temperature range for this motor is from 0 to 50 ºC.
The Kirloskar RC132SM induction motor is foot mounted, allowing for stable installation.
The insulation class type for the RC132SM is Class F.
This motor utilizes IC 411 cooling, which is designed to enhance efficiency and performance.
The rotor of the Kirloskar RC132SM is designed as a die-cast aluminum squirrel cage, which can withstand severe forces during starting.
Key features include IE2 efficiency, high starting and pull-up torques, and robust stator construction for improved cooling.
Yes, the Kirloskar RC132SM motor can be customized according to customer requirements.
