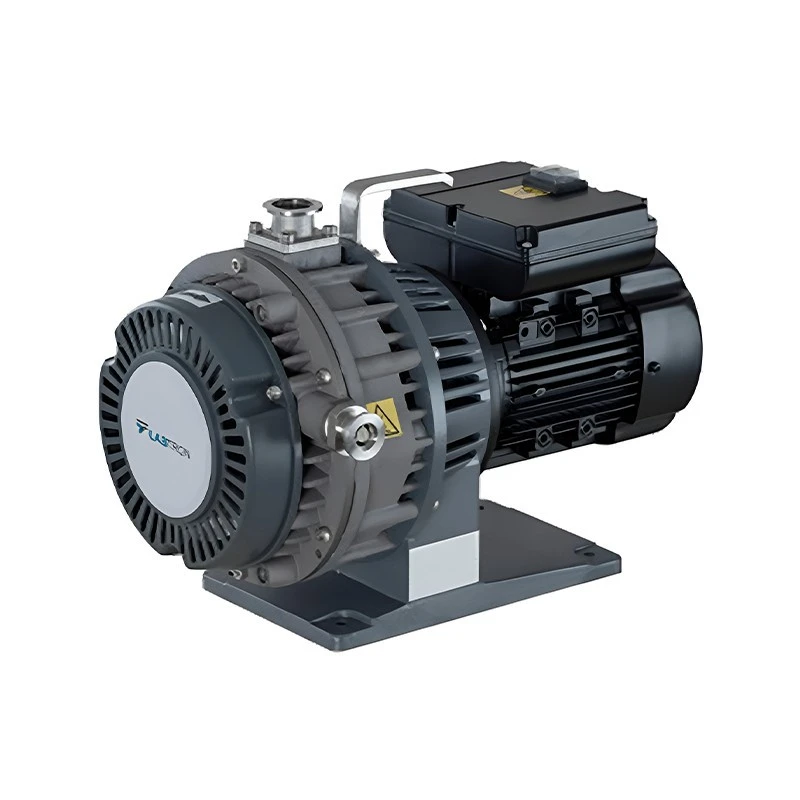

Labtron LSVP-A10 Scroll Vacuum Pump
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Particle size | ≤ 40 microns |
| Model | LSVP-A10 |
| Noise Level | ≤ 52 dB |
| Type of Product | Lab Vacuum Pump |
| Cooling Type | Air cooled |
| Others | With air flush |
| Leakage | 1 × 10⁻¹³ mbar·l/s |
| Pressure (psi) | ≤ 9.0×10-4 psi |
| Ultimate Pressure | ≤ 6.0×10-2 mbar / ≤ 4.0 × 10² Torr |
| Ambient Operation Temperature | 41 to 104°F |
| Maximum Inlet and Exhaust Pressure | 0.1 / 0.13 MPa |
| Pumping Speed (50 Hz) | 2.0 L/s / 120.0 L/min / 7.2 m3/h / 4.3 cfm |
| Pumping Speed (60 Hz) | 2.4 L/s / 144 L/min / 8.6 m3/h / 5.1 cfm |
| Power (1 phase) | 0.25 kW |
| Voltage (1 phase) | 50 to 60 Hz / 110 to 115 or 220 to 230 V |
| Speed (1 phase) | 50 Hz / 1425 rpm | 60 Hz / 1725 rpm |
| Connect (1 phase) | North America / Europe / UK / Ireland / India |
| Power (3 phase) | 0.37 kW |
| Voltage (3 phase) | 50 Hz / 200 V to 230 V or 380 V to 460 V |
| Speed (3 phase) | 50 Hz / 1425 rpm | 60 Hz / 1725 rpm |
| Inlet and Exhaust Flange (3 phase) | KF25/16 |
| Dimensions (1 Phase) | 405 × 225 × 260 mm |
| Dimensions (3 Phase) | 445 × 265 × 305 mm |
| Net Weight (1 Phase) | 15 kg |
| Net Weight (3 Phase) | 16 kg |
Key Features
- High efficiency, low vibration and low noise
- No oil mist exhaust, and no oil back diffusion
- Integrated with motor 1 and motor 3 phase
- Suitable to use for cleaning processes
- Constantly operated between vacuum and atmospheric
- Easy to clean, operate and less maintenance
- Suitable for various type of power supply around the world
Product Description
Scroll Vacuum Pump LSVP-A10 is a reliable, durable, oil-free, high-performance vacuum pump, combined with lower power consumption and lower ultimate pressures. Offers ambient operation temperature ranges from 41 to 104°F and maximum inlet and exhaust pressure of 0.1 / 0.13 MPa. Designed with an air cooling system, air flush, and innovative scroll design that reduces vibration and noise. It is suitable for use in molecular pump backing, accelerators and synchrotrons, capacitor exhaust, surface analysis instruments, E-beam and laser melting, spectroscopy and scanning electron microscopy, leak detection, space environment simulation, glove boxes, and coating PVD, CV, and PLD.
Applications:
Scroll Vacuum Pump is widely used in hydrogen fuel cell processes, oil vapor recovery, LED, LCD, and laser tubes, load lock and transfer chambers, freeze drying and gel drying, special gas recovery and recirculation, vacuum ovens, lithium-ion battery processes, distillation, purification and filtration, and Cryo pump regeneration.
