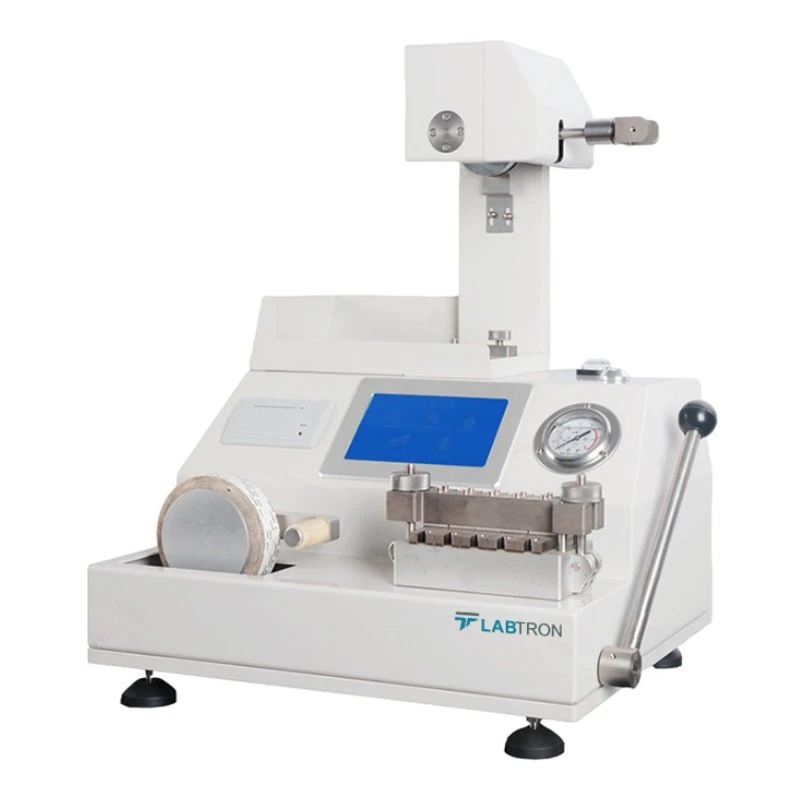

Labtron TP-J11 Internal Ply Bond Tester
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | 0.001 lbf/in² |
| Measuring range | A file — 20 to 500 J/m² / B file — 500 to 1000 J/m² |
| Measurement Units | LB · FT/in² or J/m² |
| Brand | Labtron |
| Model | TP-J11 |
| Weight | 65 KG |
| Type of Product | Testing Instrument |
| Specimen Size | 25.4 mm x 25.4 mm |
| Dimension (L x W x H) | 700 x 345 x 630 mm |
| Indication error | A — ± 1 J/m² / B — ± 2 J/m² |
| Packaging Weight | 75 kg |
| Packaging dimension (L x W x H) | 750 x 400 x 680 mm |
| Sample Amount | 5 pcs |
| Sample Clamping Force | 0 to 400 N (adjustable) |
| Impact Angle | 90° |
Key Features
- Microcomputer control
- Digital LCD screen
- Conforms to TAPPI-UM403 standards
- Evaluate the Z-direction tensile internal strength
- Modular one-type printer for printing test results
- Automated measurements with statistical analysis
- Hydraulic glue pressing
- Adjustable pressure settings
Product Description
The Internal Ply Bond Tester TP-J11 assesses the internal bonding strength of diverse paperboards. With a sample clamping force of 0 to 400 N, it focuses on an impact angle of 90º. Each test can accommodate up to five samples. Designed with a modern mechatronics concept, it features an elegant appearance and simple maintenance. The tester employs a falling pendulum mechanism, delivering a high-speed impact to a paper specimen.
Applications:
The Internal Ply Bond Tester is used for testing the internal bonding strength of various paperboards. It is applicable in the paper, corrugated paper, and packaging industries.
