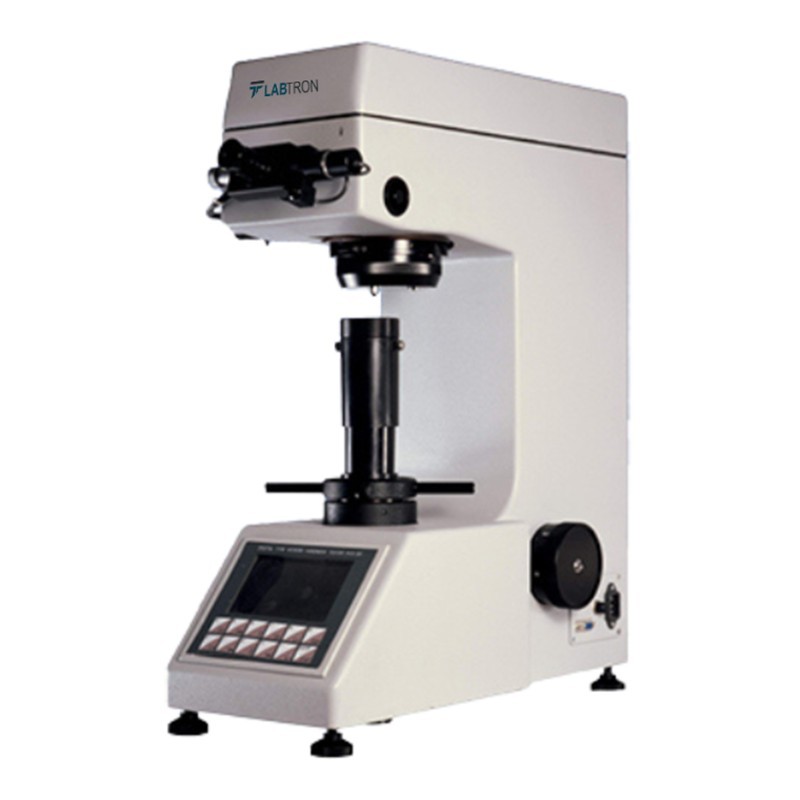

Labtron TDVH-A10 Digital Low Load Vickers Hardness Tester
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Power Supply | AC 220 V / 50 Hz |
| Model | TDVH-A10 |
| Weight | 40 Kg |
| Type of Product | Hardness Tester |
| Dimension of Machine | 540 x 220 x 650 mm |
| Test Force | 9.8 N / 49 N / 98 N / 196 N / 294 N / 490 N |
| Loading Control | Automatic |
| Magnification of Microscope | 100x |
| Hardness Indication | Digital display |
| Illumination Light | LED |
| Hardness Value Symbol | HV1 / HV5 / HV10 / HV20 / HV30 / HV250 |
| Error Range In Display | ± 3.0% / ± 2.0% |
| Hardness Value Range In Measure | 5 HV To 2500 HV |
| Pressure Holding Time | 5 To 60 s |
| Min. Measurable Unit | 0.25 μm |
| Max. Height Of Sample | 160 mm |
| Indenter-To-Wall Distance | 135 mm |
Key Features
- High-Resolution LCD Display
- Integrated Camera and Eyepiece System
- Customizable Adjustable Light Source
- Intuitive Soft Key Interface
- Advanced Data Recording System
- RS232 Interface for Connectivity
Product Description
The Digital Low Load Vickers Hardness Tester TDVH-A10 is designed with a test force range of 9.8 N to 490 N, delivering precise and versatile testing. With a display error range of ±3.0% or ±2.0%, it ensures accurate and consistent results. The built-in microscope offers 100× magnification for detailed and reliable analysis. Automatic loading control provides stable pressure holding times, enhancing testing accuracy. It also supports data recording and analysis, making it ideal for microhardness testing in research, education, and industrial applications.
Applications:
Our Digital Low Load Vickers Hardness Tester TDVH-A10 is an essential tool for evaluating the microhardness of materials in research laboratories. It ensures precise measurements, making it suitable for material development and quality control in academic settings.
