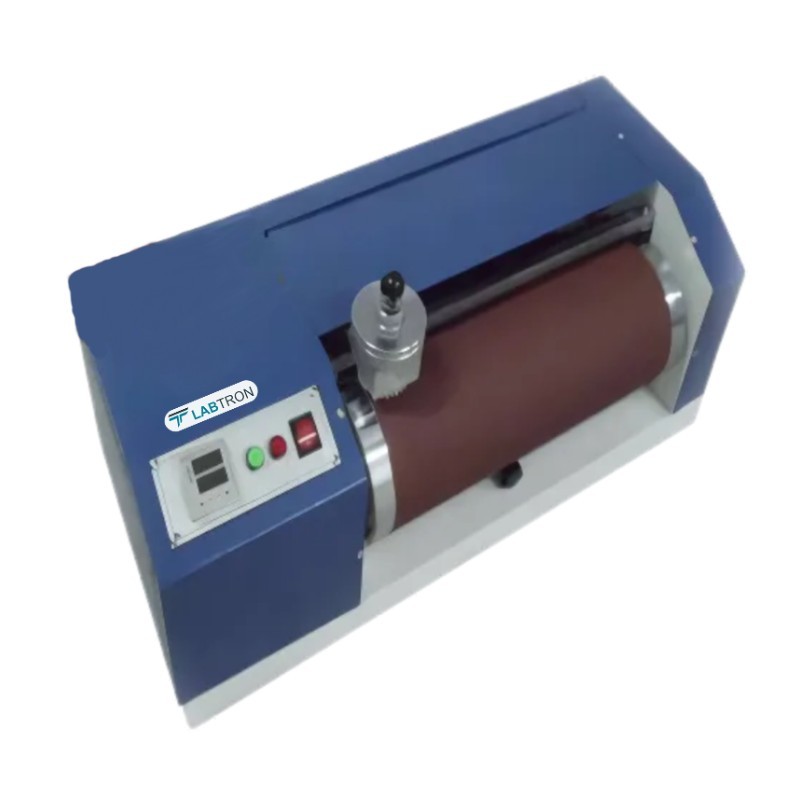

Labtron TDAT-A10 DIN Abrasion Tester
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Power Supply | 220 V / 50/60 Hz |
| Dimension | 950 x 660 x 310 mm |
| Net Weight | 75 Kg |
| Model | TDAT-A10 |
| Type of Product | Abrasion Tester |
| Stroke | 20 m/40 m presetting |
| Specimen Size | Diameter 16 mm / thickness at least 6 mm |
| Measurement Mode | Auto/manual presetting |
| Test Arm Weight | 2.5 N |
| Additional Loads | 2.5 ± 0.1 N / 5 ± 0.1 N / 10 ± 0.1 N |
| Idler | 150 mm |
| Abrasion Stroke | 40 ± 0.2 M |
| Horizontal Displacement | 4.2 mm/rotation |
| Grips Lateral Displacement | 4.2 ± 0.04 mm/rotation |
| Idler Wheel Speed | 40 ± 1 rpm |
| Emery Cloth Specifications | 60 # seam is less than 2 mm |
| Shift Screw | 6 teeth/inch |
| Limit Rotation | 85 rotate |
| Set Rotation | 84 rotation of 40 meters |
| Return Form | Electric automatic reset |
Key Features
- Automatic electric lock for the rotating cylinder
- Mechanical unlocking of the cylinder for easy abrasive replacement
- Screw for adjustment of abrasion specimen
- Enables control uniformity of specific material
- Machine with metallic base plate, polished paint & zinc coating
- High quality machine design with reproducible results
- Easy to operate
Product Description
The DIN Abrasion Tester TDAT-A10 determines the abrasion resistance of rubber-made products, natural rubber, vulcanized rubber, and thermoplastic amorphous polymers to withstand long-term damage due to friction from excessive use. The ratio between the standard loss of rubber material and the test rubber material, expressed as a percentage, marks the abrasion resistance index of the sample under test.
Applications:
The DIN Abrasion Tester is used to determine the abrasion resistance of elastomers by the frictional loss of rubber in products such as tires, conveyor belts, hoses, footwear, floor coverings, thermoplastic amorphous polymers, etc.
