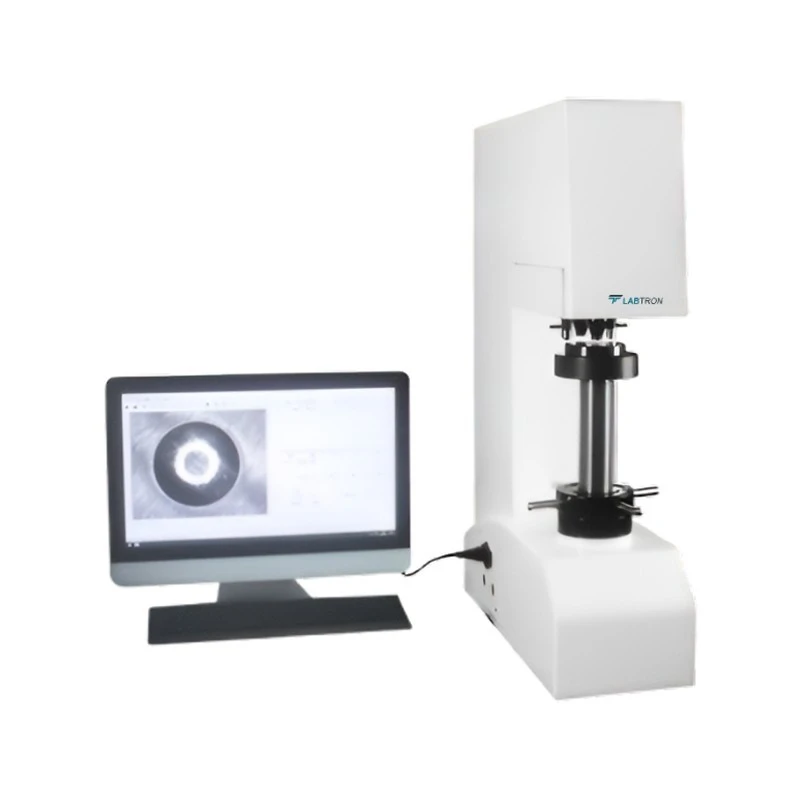

Labtron LTBH-C11 Digital Brinell Hardness Tester
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Power Supply | AC220 ±5% / 50-60 Hz |
| Model | LTBH-C11 |
| Operating System | Windows 10 |
| Weight | 110 kg |
| Type of Product | Hardness Tester |
| Camera | 1.3 million pixel (500 pixel optional) |
| MONITOR | 19-inch |
| Test Force Accuracy | ≤1% (62.5 kgf to 250 kgf) / ≤0.5% (500 kgf to 3000 kgf) |
| Load Retention Time | 1 to 9 seconds adjustable |
| Test Force Range | 62.5 kgf (612.9 N) / 100 kgf (980.7 N) / 125 kgf (1226 N) / 187.5 kgf (1839 N) / 250 kgf (2452 N) / 500 kgf (4903 N) / 750 kgf (7355 N) / 1000 kgf (9807 N) / 1500 kgf (14710 N) / 3000 kgf (29420 N) |
| Hardness Scales | HBW2.5/62.5 / HBW2.5/187.5 / HBW5/62.5 / HBW5/125 / HBW5/250 / HBW5/750 / HBW10/100 / HBW10/250 / HBW10/500 / HBW10/1000 / HBW10/1500 / HBW10/3000 |

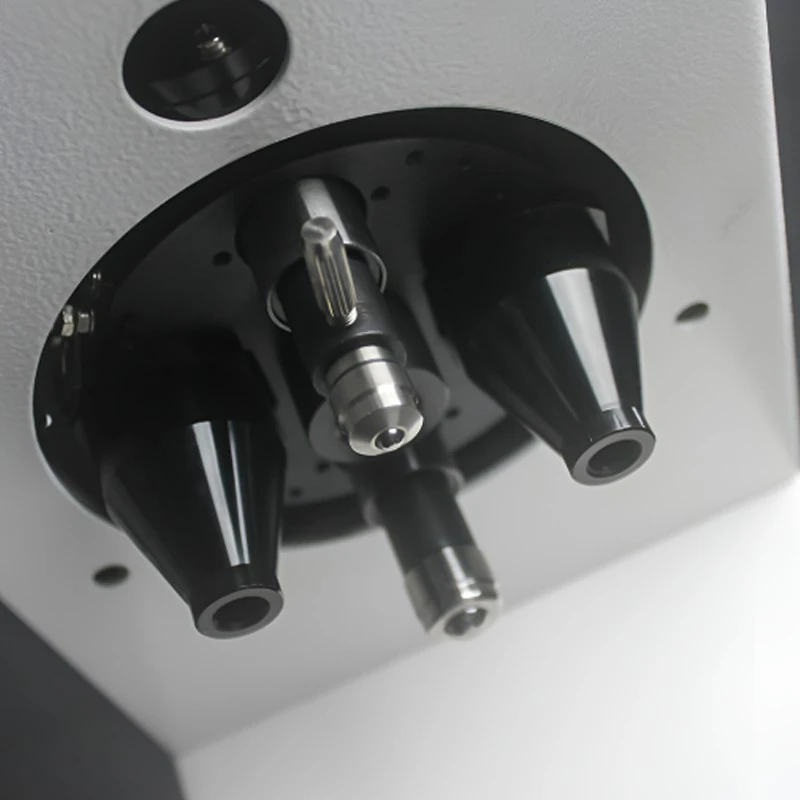

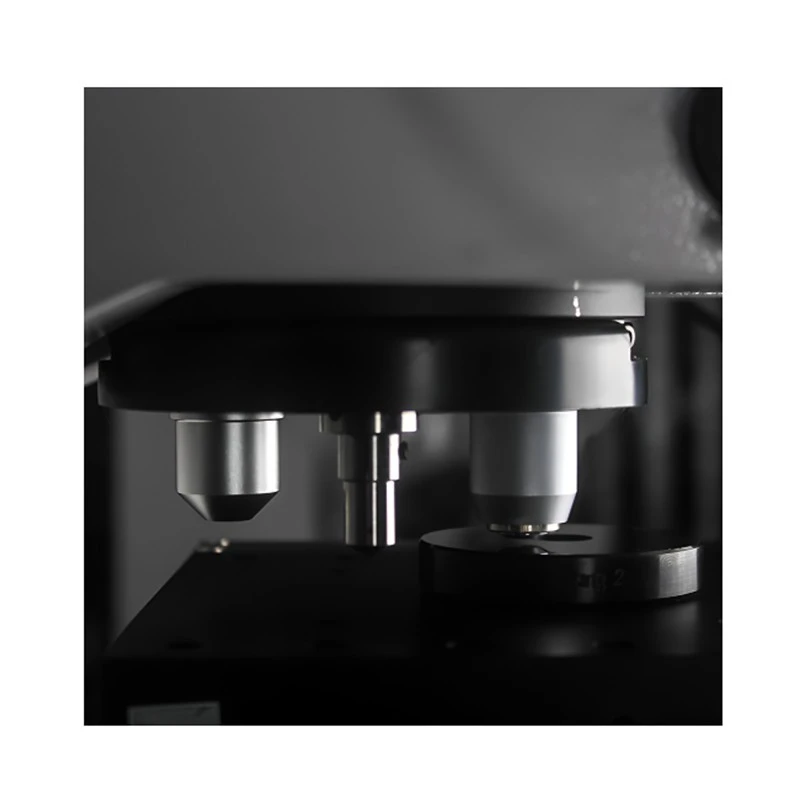

| Pressure Head | Three pressure heads |
| Minimum Measurement Unit | 0.01 µm |
| Resolution of Hardness Values | 0.1 HBW |
| Height of Specimen | Maximum 200 mm |
| Distance from Head to Machine Wall | 155 mm |
| Automatic Turret | Yes |
Key Features
- Optional advanced imaging capabilities
- Adjustable specimen height up to 200 mm
- Extensive hardness scale support
- High-Precision Force Sensor
- Real-Time Data Analysis
Product Description
The Digital Brinell Hardness Tester LTBH-C11 is equipped with three pressure heads and a test force range from 62.5 kgf to 3000 kgf. It offers test force accuracy of ≤1% for 62.5 kgf - 250 kgf and ≤0.5% for 500 kgf - 3000 kgf. The adjustable load retention time from 1 to 9 seconds provides flexibility in testing conditions. The integrated touch screen computer with a 19-inch monitor running Windows 10 ensures user-friendly operation. Suitable for materials science, mechanical testing, automotive analysis, metallurgy, and manufacturing.
Applications:
Our Digital Brinell Hardness Tester LTBH-C11 is designed for precise hardness testing in research laboratories and quality control settings, providing accurate measurements for metals, plastics, and composites in demanding industrial applications.
Standard Accessories:
- All-in-One Computer or Industrial Control Touch-Screen Computer: 1
- Camera: 1
- Camera Interface: 1
- Large Testing Table: 1
- Medium Testing Table: 1
- "V"-Shaped Testing Table: 1
- Standard Block HBW10/3000: 1
- Standard Block HBW10/1000: 1
- Standard Block HBW2.5/187.5: 1
- Diameter 2.5mm Hard Alloy Steel Ball Indenter: 1
- Diameter 5mm Hard Alloy Steel Ball Indenter: 1
- Diameter 10mm Hard Alloy Steel Ball Indenter: 1
- Dust Bag: 1
- Standby Fuses (2A): 2
- Power Cord: 1
