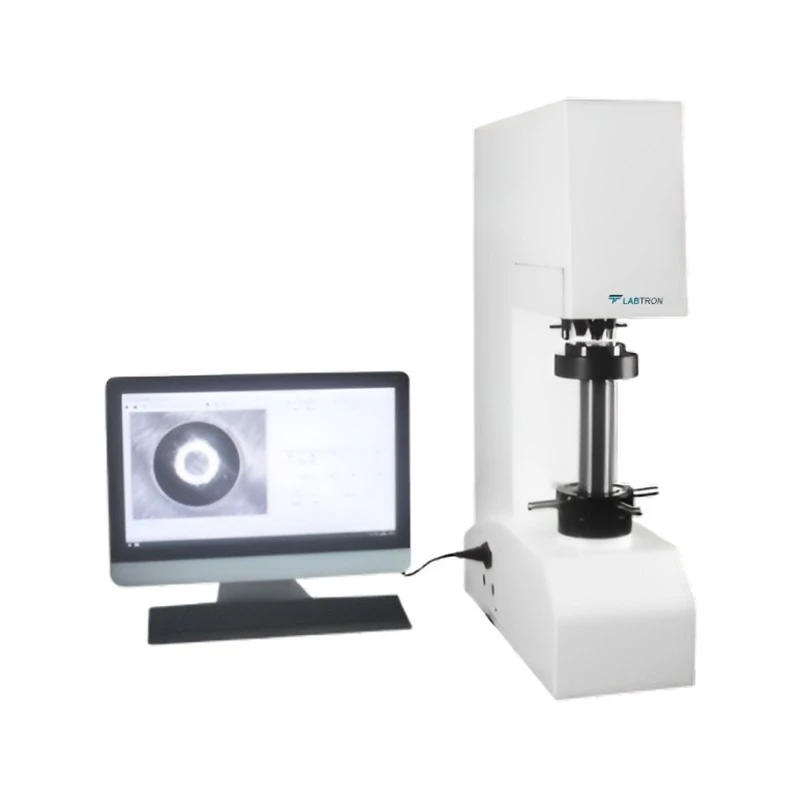

Labtron LTBH-C10 Digital Brinell Hardness Tester
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Power Supply | AC220 ±5% / 50-60 Hz |
| Model | LTBH-C10 |
| Operating System | Windows 10 |
| Weight | 110 kg |
| Type of Product | Hardness Tester |
| Camera | 1.3 million pixel (500 pixel optional) |
| MONITOR | 19-inch |
| Test Force Accuracy | ≤1% (62.5 kgf to 250 kgf) / ≤0.5% (500 kgf to 3000 kgf) |
| Load Retention Time | 1 to 9 seconds adjustable |
| Test Force Range | 62.5 kgf (612.9 N) / 100 kgf (980.7 N) / 125 kgf (1226 N) / 187.5 kgf (1839 N) / 250 kgf (2452 N) / 500 kgf (4903 N) / 750 kgf (7355 N) / 1000 kgf (9807 N) / 1500 kgf (14710 N) / 3000 kgf (29420 N) |
| Hardness Scales | HBW2.5/62.5 / HBW2.5/187.5 / HBW5/62.5 / HBW5/125 / HBW5/250 / HBW5/750 / HBW10/100 / HBW10/250 / HBW10/500 / HBW10/1000 / HBW10/1500 / HBW10/3000 |
| Pressure Head | Dual pressure head |
| Minimum Measurement Unit | 0.01 µm |
| Resolution of Hardness Values | 0.1 HBW |
| Height of Specimen | Maximum 200 mm |
| Distance from Head to Machine Wall | 155 mm |
Key Features
- Compact and robust construction
- User-friendly touchscreen interface
- Automatic Hardness Scale Correction
- ≤1% accuracy for lower forces
- Customizable load settings
- Integrated 1.3 million pixel camera
Product Description

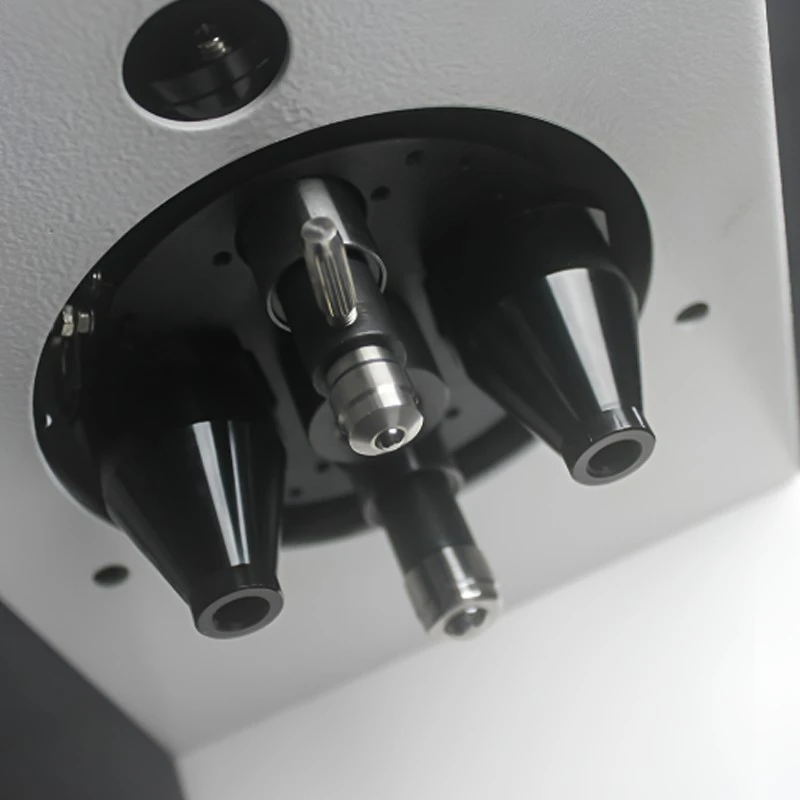

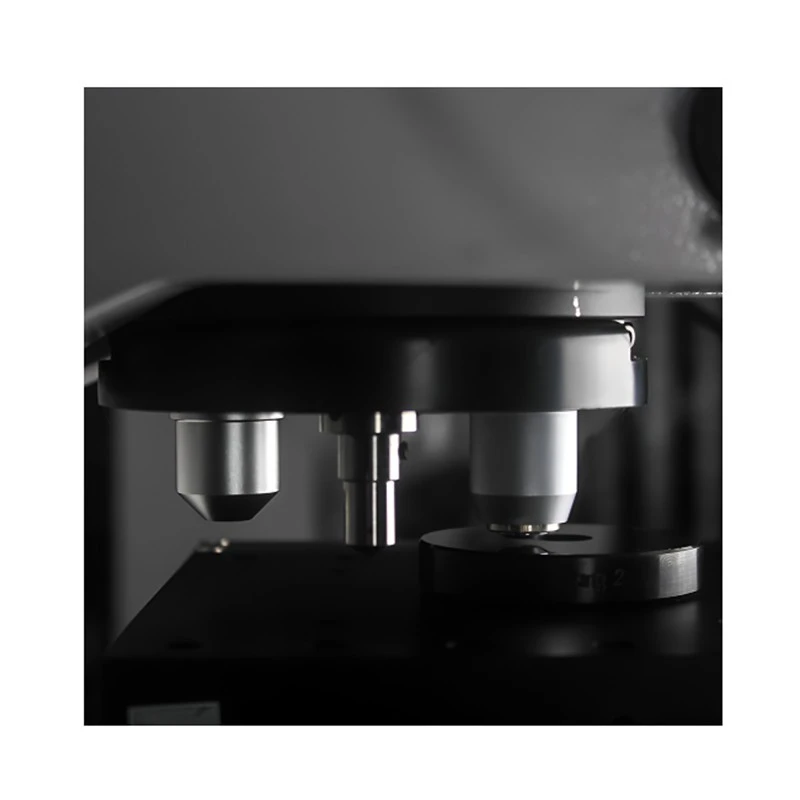

The Digital Brinell Hardness Tester LTBH-C10 is equipped with a dual pressure head and a test force range from 62.5 kgf to 3000 kgf, enabling versatile testing. It features an automatic turret for efficient handling of samples. The tester supports a wide range of hardness scales, from HBW2.5/62.5 to HBW10/3000. The minimum measurement unit is 0.01 µm, ensuring precise readings. This model is perfect for quality control, material testing, research, and manufacturing, delivering precise and reliable results.
Applications:
Our Digital Brinell Hardness Tester LTBH-C10 is ideal for high-throughput hardness testing in metal fabrication and manufacturing, allowing for efficient measurement of various materials with its automatic loading and unloading features.
Standard Accessories:
- All-in-One Computer or Industrial Control Touch-Screen Computer: 1
- Camera: 1
- Camera Interface: 1
- Large Testing Table: 1
- Medium Testing Table: 1
- "V"-Shaped Testing Table: 1
- Standard Block HBW10/3000: 1
- Standard Block HBW10/1000: 1
- Standard Block HBW2.5/187.5: 1
- Diameter 2.5mm Hard Alloy Steel Ball Indenter: 1
- Diameter 5mm Hard Alloy Steel Ball Indenter: 1
- Diameter 10mm Hard Alloy Steel Ball Indenter: 1
- Dust Bag: 1
- Standby Fuses (2A): 2
- Power Cord: 1
