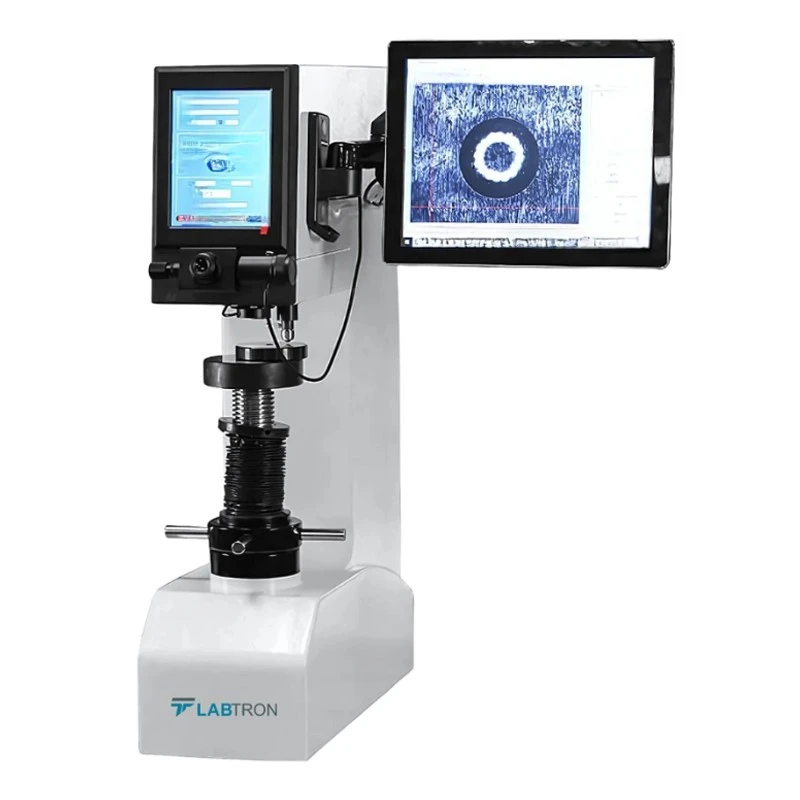

Labtron LTBH-A12 Digital Brinell Hardness Tester
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Power Supply | AC220 +5% / 50-60 Hz |
| Model | LTBH-A12 |
| Weight | 110 kg |
| Standard | BSEN 6506 / ISO 6506 / ASTM E10 / GB/T231 |
| Type of Product | Hardness Tester |
| Data output | LCD display |
| Dwell Time | 0 to 99 seconds |
| Dimension (W×D×H) | 550 × 210 × 800 mm |
| Brinell Scale | HBW2.5/62.5 / HBW2.5/187.5 / HBW5/62.5 / HBW5/125 / HBW5/250 / HBW5/750 / HBW10/100 / HBW10/250 / HBW10/500 / HBW10/1000 / HBW10/1500 / HBW10/3000 |
| Test Force (Kgf) | 62.5 kgf (612.9 N) / 100 kgf (980.7 N) / 125 kgf (1226 N) / 187.5 kgf (1839 N) / 250 kgf (2452 N) / 500 kgf (4903 N) / 750 kgf (7355 N) / 1000 kgf (9807 N) / 1500 kgf (14710 N) / 3000 kgf (29420 N) |
| Test Force Accuracy | 62.5 to 250 kgf ≤1% / 500 to 3000 kgf ≤0.5% |
| Measuring Device Resolution | 0.1 µm |
| Hardness Value Resolution | 0.1 HBW |
| Maximum Height of Specimen | 200 mm |
| Indenter to Outer Wall Distance | 155 mm |
Key Features
- Dual screen for enhanced visibility
- Prominent camera for detailed imaging
- Robust design for stability
- Auto-corrected test force accuracy
- High precision closed-loop control system
Product Description
The Digital Brinell Hardness Tester LTBH-A12 delivers precise hardness testing with an automatic turret and a range of test forces from 62.5 kgf to 3000 kgf. It supports a broad spectrum of Brinell scales, from HBW2.5/62.5 to HBW10/3000. Featuring a larger secondary monitor, it enables detailed image display and data analysis for enhanced testing. With a maximum specimen height of 200 mm and a 155 mm indenter to outer wall distance, it offers excellent versatility. Compact yet powerful, this model is ideal for both research and industrial applications.
Applications:
Our Digital Brinell Hardness Tester LTBH-A12 ensures precise hardness testing for material integrity during production. Ideal for metallurgical labs, automotive, and aerospace research.
Standard Accessories:
- Eyepiece: 1

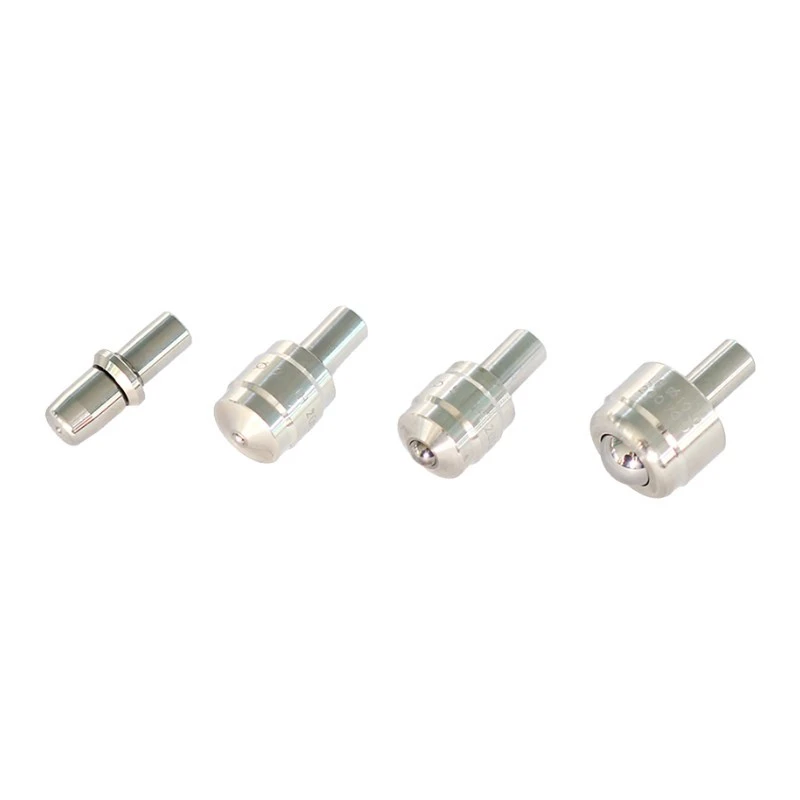

- Diameter 2.5mm Hard Alloy Steel Ball Indenter: 1
- Diameter 5mm Hard Alloy Steel Ball Indenter: 1
- Diameter 10mm Hard Alloy Steel Ball Indenter: 1
- U Disk: 1
- Touch Pen: 1
- Power Cable: 1
- Large Testing Table: 1
- Medium Testing Table: 1
- “V” Shaped Testing Table: 1
- Standard Block (HBW10/3000): 1
- Standard Block (HBW10/1000): 1
- Standard Block (HBW2.5/187.5): 1
- Dust Bag: 1
- Fuse (2A): 2
