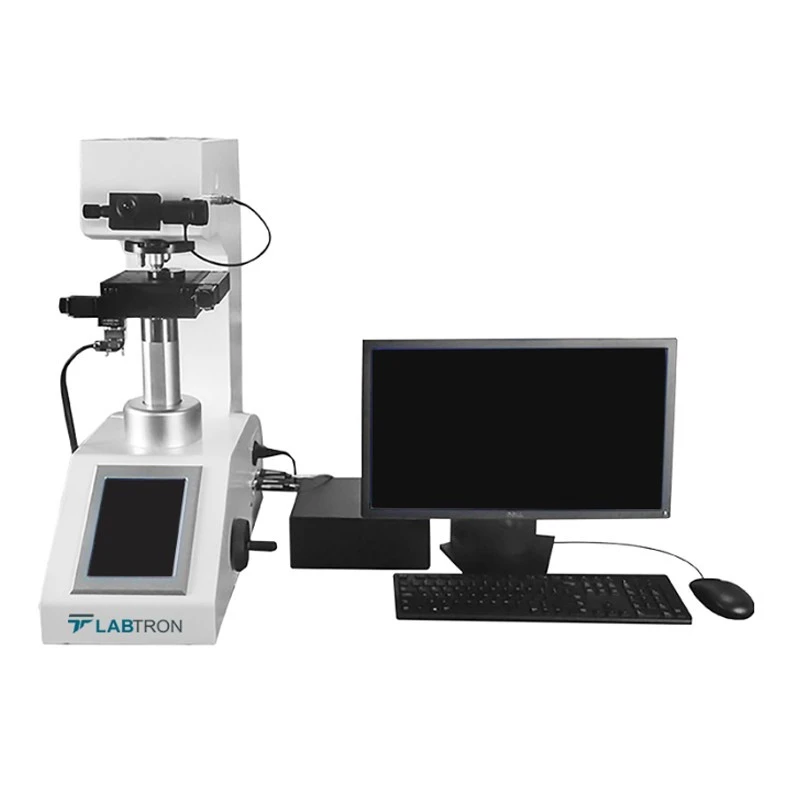

Labtron LMHT-A11 Automatic Micro Vickers Hardness Tester
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Power Supply | AC220V ± 5% / 50 to 60 Hz |
| Model | LMHT-A11 |
| Weight | 50kg |
| Type of Product | Hardness Tester |
| Standards | GB/T43402 / ASTM E92 |
| Measurement Resolution | 0.01µm |
| Camera Resolution | 5-Megapixel |
| Test Force | 10GF (0.098N) / 25GF (0.245N) / 50GF (0.49N) / 100GF (0.98N) / 200GF (1.96N) / 300GF (2.94N) / 1kgf (9.8N) |
| Hardness Test Range | 8 to 2900 HV |
| Test Force Retention Time | 1 to 99s |
| Conversion Scale | Rockwell / Brinell |
| Test Force Application Method | Automatic (Loading / Preserving / Unloading) |
| Test Microscope Magnification | 400X (test) / 100X (test / observation) |
| Data Display | 8" Touch Screen Display |
| Maximum Allowable Specimen Height | 160mm |
| Distance from Head to Wall | 160mm |
| Drive Motors for Automatic X-Y Loading Platform | Stepper Motor |
| Maximum Travel Distance for Automatic X-Y Loading Platform | 50 × 50mm in X-Y Direction |
| Minimum Travel Distance for Automatic X-Y Loading Platform | 1µm |
| Movement Speed Automatic X-Y Loading Platform | 1 to 10mm/SEC / Adjustable |
| Motor for Z Axis Auto Focus Component | Stepper Motor |
| Moving Resolution for Z Axis Auto Focus Component | 0.1µm |
| Displacement Repetition Accuracy for Z Axis Auto Focus Component | 1µm |
| Movement Speed for Z Axis Auto Focus Component | Fast/Slow |
| Automatic Measuring Time | About 0.3 SEC per indentation |
| Repeatability of Measurement | ±1.0% (1700H/500gf) |
| Minimum Detectable Indentation | About 5µm (Automatic Measurement) |
| Minimum Unit of Measurement | 0.01mm |
| Laptop Operating System | Windows 10 |
| Packaging Size Dimensions | 830 × 500 × 960mm |
| X-Y Platform Dimensions | 150 × 150mm / 50 × 50mm in X-Y direction |
Key Features
- High-precision motor for smooth operation
- Touchscreen interface for easy control and setup
- Real-time data monitoring and display
- Multi-language support for global usability
- Auto-save function to prevent data loss
- Modular design for easy maintenance and upgrades
- Automatic lens calibration for consistent accuracy
- Compact design for efficient lab space usage
Product Description
The Automatic Micro Vickers Hardness Tester LMHT-A11 offers a hardness measurement range from 8 to 2900 HV with a high resolution of 0.01 µm. This advanced digital micro-hardness tester is equipped with an optical cross-guide rail lifting system, enabling precise automatic movement along the X and Y axes, as well as automatic focusing along the Z-axis. It supports multi-sample and multi-point automatic hardness testing and can automatically generate detailed inspection reports. Calibration is done using standard blocks or weights, with the device automatically verifying the accuracy of the calibration.
Applications:
Our Automatic Micro Vickers Hardness Tester LMHT-A11 is ideal for testing metals, non-metals, and heat-treated parts. It measures hardening depth, coating thickness, and metallographic structures, making it essential for surface hardness evaluation.
Standard Accessories:
- Farmar shaft × 1 The root
- Micrometre eyepiece × 1 Piece
- Power cord × 1 Piece
- Product certificate × 1 Piece
- Warranty card × 1 Piece
- Printing paper × 1 Piece
- Screwdriver × 2 Piece
- Farmar × 6 Piece
- Microhardness block (high block, medium block) × Each 1 Piece
- Nylon universal sole × 4 Piece
- Spare fuse (2A) × 2 Piece
- Dust cover × 1 Piece
- Manual × 1 Piece
- Touch pen × 1 Piece
