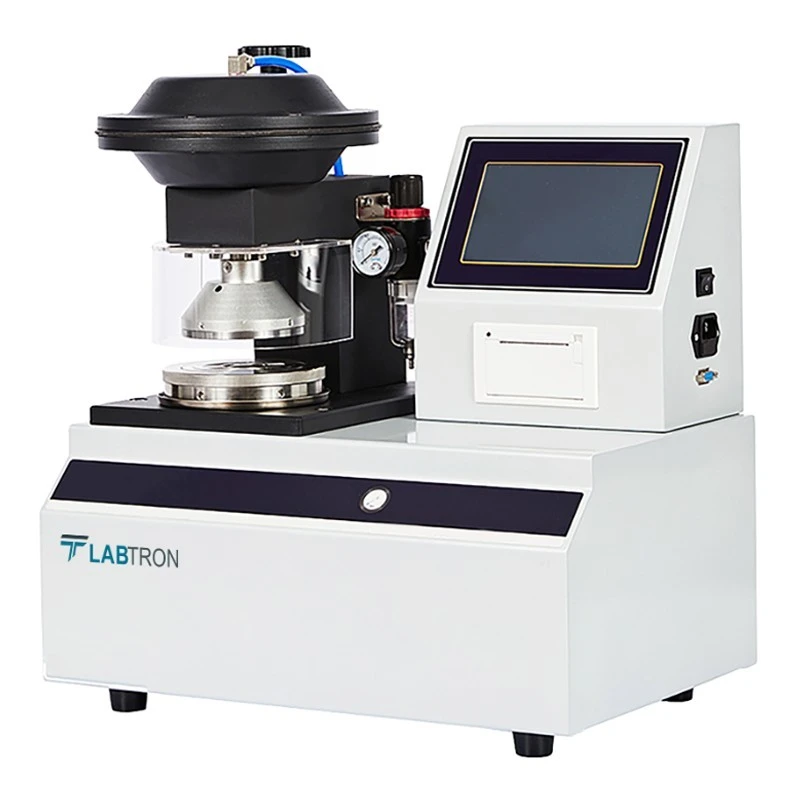

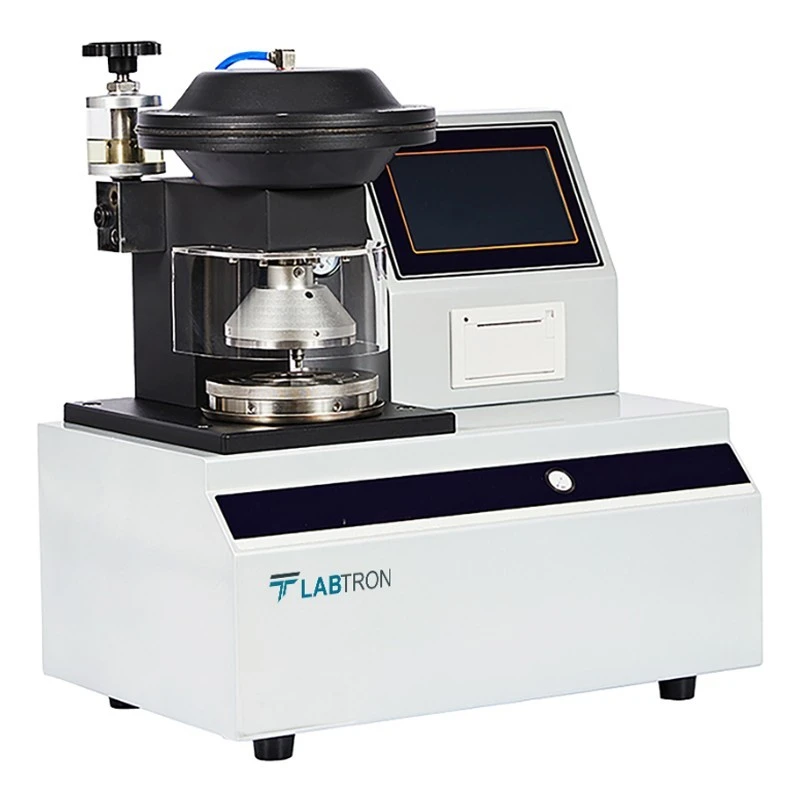

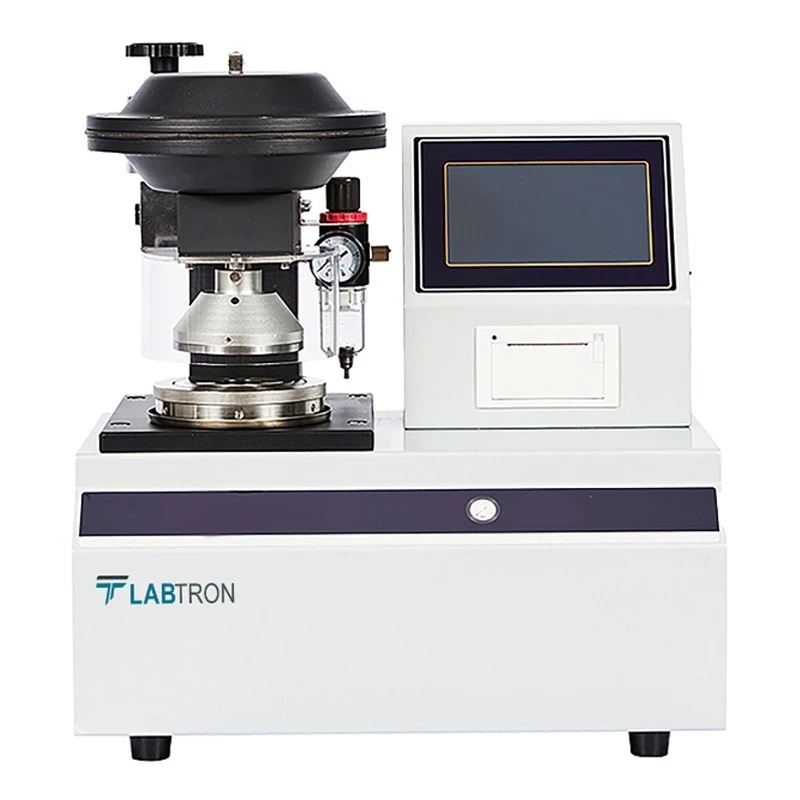

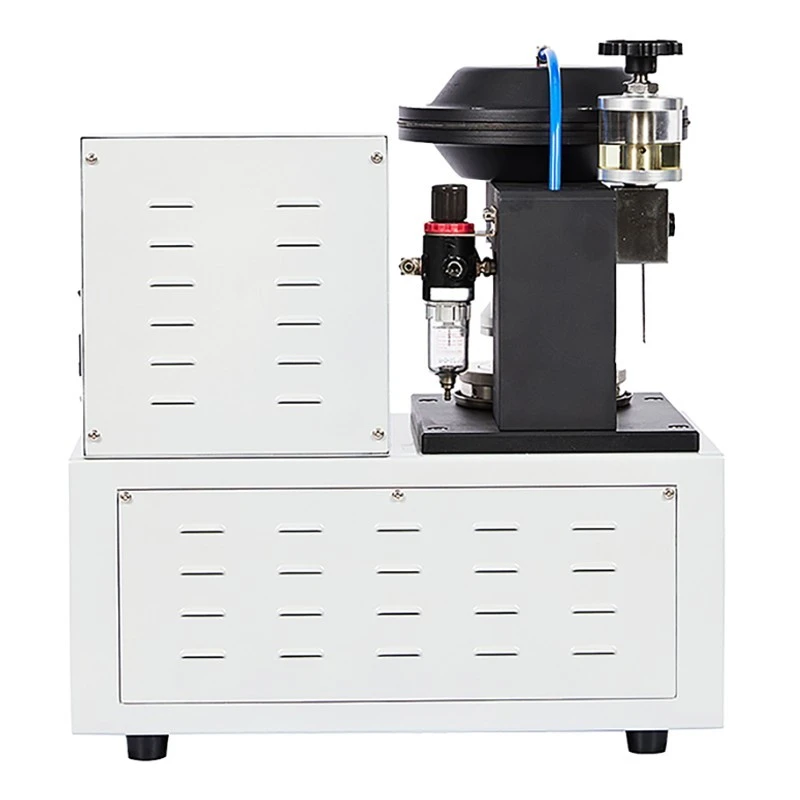

Labtron LMBT-A11 Mullen Burst Tester
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | 1 kPa |
| Measuring range | 250 to 5600 kPa |
| Brand | Labtron |
| Power Supply | AC 220V ± 10% / 50Hz / 100W |
| Net Weight | 56 kg |
| Working Environment | 10 to 35°C / Humidity ≤ 85% |
| Model | LMBT-A11 |
| Type of Product | Testing Instrument |
| Dimension (L × W × H) | 460 × 320 × 580 mm |
| Indicating Accuracy | ± 0.5% |
| Compression Rate | 170 ± 15 ml/min |
| Required Compressed Air | 0.6 to 0.7 MPa |
| Air Pressure Regulating | 0.4 MPa |
| Sealing Property of Hydraulic System | Upper limit — 1 min / Pressure drop Less than 10% Pmax |
| Sampler Up Loop Diameter | 31.5 ± 0.05 mm |
| Sampler Down Loop Diameter | 31.5 ± 0.05 mm |
Key Features
- Automatic clamping (requires air supply)
- 32-bit ARM processor technology
- 5-inch colour touchscreen display
- Real-time pressure curve display
- Over-range reset for sensor protection
- Supports kPa, kgf/cm², Psi units
Product Description
The Mullen Burst Tester LMBT-A11 offers a measuring range of 250 to 5600 kPa with an indicating accuracy of ±0.5%. It is equipped with a noiseless thermal printer that eliminates the need for ink. The tester supports automatic measurement, statistical analysis, and printing for seamless data management. Its one-click test operation ensures ease of use and efficiency in testing processes. Our burst tester is a reliable choice for accurate and efficient paper testing.
Applications:
The Mullen Burst Tester LMBT-A11 is used to measure burst strength of corrugated cardboard, cardboard boxes, paper trays, and non-paper materials such as foil, film, rubber, silk, cotton, etc.
Standard Accessories:
- Diaphragm for Paper: 1 Piece
- Dimethicone: 1 Bottle
Optional Accessories:
- RS232 interface and computer software: 1 Set
