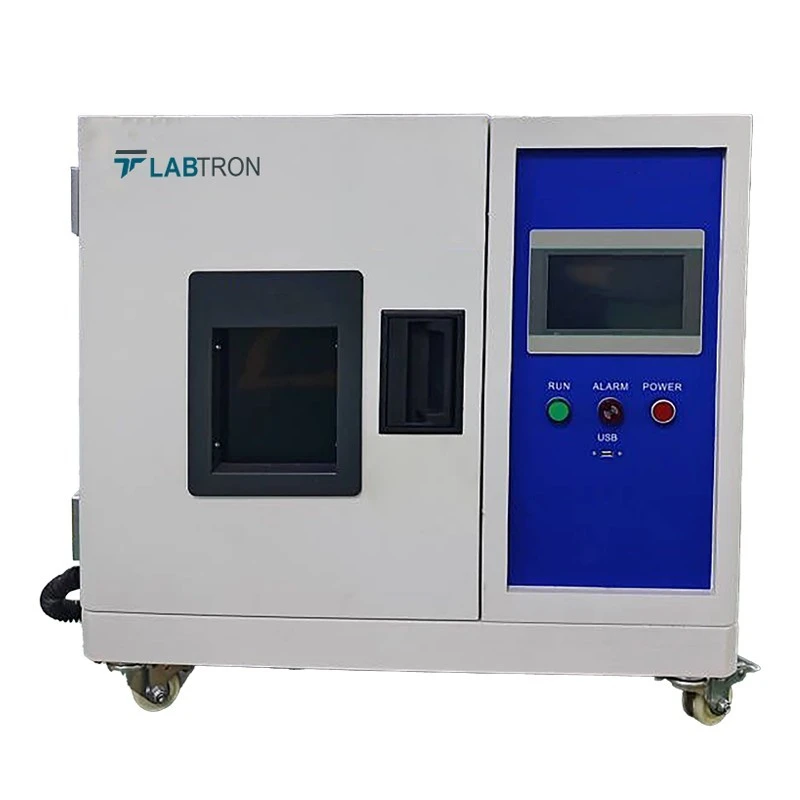

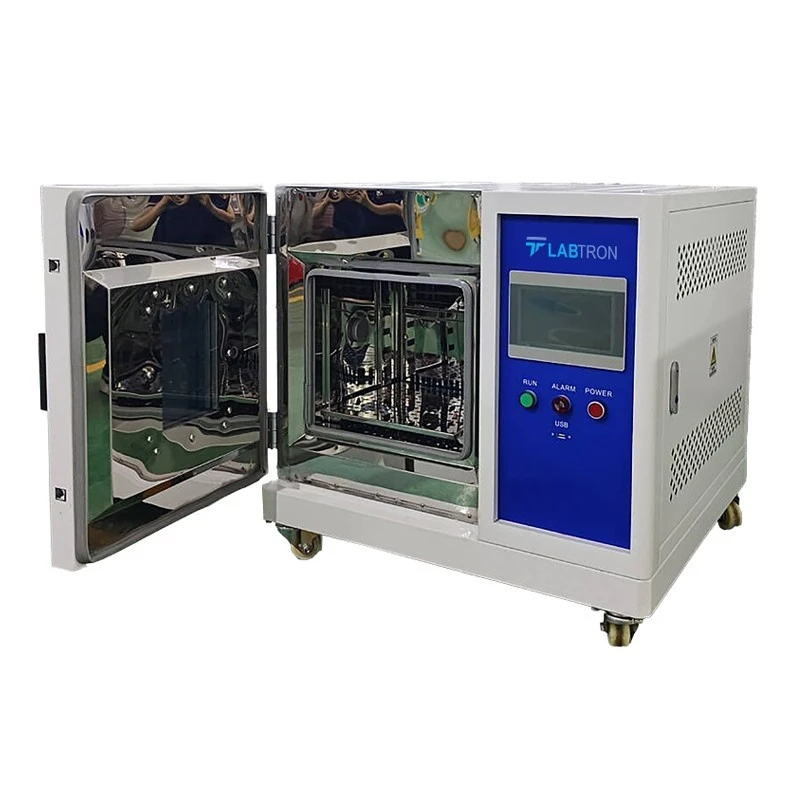

Labtron LXC-B10 Xenon Test Chamber
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | 4.0 KW |
| Frequency | 50 Hz (Customization for 60 Hz available) |
| Relative Humidity | ≤ 85% |
| Sensor | Irradiance sensor |
| Capacity | 32 L |
| Brand | Labtron |
| Power Supply | AC 380 V ±10% with protection grounding (Customization for 220 V available) |
| Net Weight | 142 Kg |
| Temperature Resolution | 0.1°C |
| Light Source | Full-spectrum air-cooled Xenon lamp |
| Temperature range | 0°C to 80°C |
| Model | LXC-B10 |
| Gross Weight | 196 Kg |
| Inner Material | SUS#304 mirror stainless steel |
| Ambient Temperature (ºC) | 25°C ±3°C |
| Type of Product | Environmental Test Chamber |
| Humidity range | 20% to 95% R.H |
| Condenser | 5 to 25°C ±3°C |
| Refrigerant | R404A |
| Controller | 7-inch touch screen controller |
| External Material | Cold-rolled steel plate with spray paint |
| Air Pressure | 86 kPa to 106 kPa |
| Door Lock | Flat handle lock | door opens from left to right |
| Maximum Current | 10A |
| Temperature Deviation | ±2°C (without lighting) |
| Humidity Fluctuation | ±2.5% R.H (without lighting) |
| Door Opening Method | Single door / opens from right to left |
| Temperature Fluctuation | ±0.5°C (without lighting) |
| Humidity deviation | ±3% R.H (without lighting) |
| Water Supply | Pure water or distilled water manually added into the water tank / Customization for auto water supply available |
| Blackboard temperature | 45°C to +90°C (±3°C) |
| Sample Holder | Flat / height-adjustable / suitable for special-shaped samples |
| Effective Irradiation Area | 625 cm² |
| Sample Space | Three-quarters of the total space | no heat load |
| Lamp Power | 1.8 kW |
| Irradiance Monitoring Method Narrow Band | 340 nm / 420 nm |
| Irradiance Monitoring Method Broad Band | 280 to 800 nm / 300 to 400 nm |
| Adjustable Light Irradiance Range | 0.35 to 0.70 W/m² (at 340 nm) / 0.35 to 1.25 W/m² (at 420 nm) / 180 to 1200 W/m² (at 280 to 800 nm) / 30 to 60 W/m² (at 300 to 400 nm) |
| Spray Function | Indirect continuous spray | manual pure water supply |
| Function Modes | Alternating — Irradiation mode / Dark mode / Spray mode |
| Duct Circulation | Centrifugal circulation motor |
| Power Cable | Equipped with drain outlets and a 2.5 m national standard cable at the back |
| Protection Grounding Resistance | ≤4Ω |
| Interior Dimension (DxWxH) | 350 x 300 x 300 mm |
| Exterior Dimension (DxWxH) | 900 x 900 x 770 mm |
| Packaging Dimension (DxWxH) | 900 x 900 x 102 mm |
Key Features
- 7-inch touch screen controller
- Convenient operation
- Large storage space
- USB interface
Product Description
Xenon Aging Test Chamber LXC-B10 has a 32 L capacity with a temperature range of 0℃ to 80℃. Its refrigeration system maintains low temperatures for accurate material testing under simulated sunlight and extreme conditions. The spray function of our xenon aging test chamber can operate indirectly and continuously. This chamber meets the standards GB/T16422.1-2006, GJB150.7A, GBT2423.24-2013, and other testing requirements.
Applications :
Xenon Aging Test Chamber LXC-B10 simulates various environments for testing and research, assessing material changes under sunlight exposure and aiding in material development and quality control.
Standard Accessories :
- φ50 mm test hole × 1 set
- Sample holder × 1 piece
- Castor and Foot Cup × 4 each
Optional Accessories :
- Xenon lamp
- Wet ball gauze
