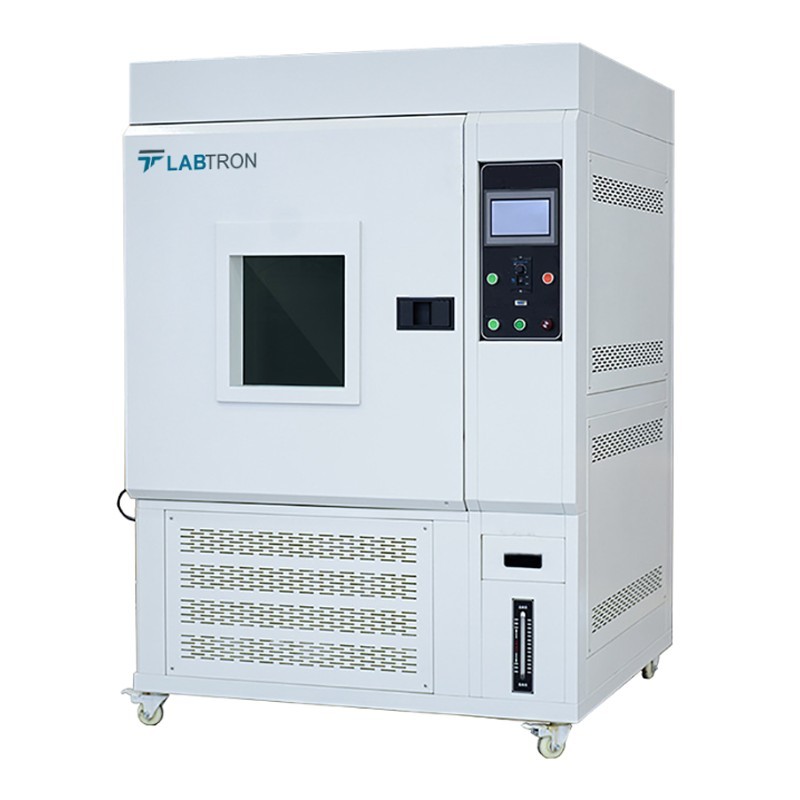

Labtron LXC-A22 Xenon Test Chamber
Specifications
| Country of Origin | UK |
|---|---|
| Display | 5.7-inch LCD screen |
| Capacity | 408L |
| Brand | Labtron |
| Power Supply | 380V±10% 50Hz |
| Temperature range | 10°C to 80°C |
| Model | LXC-A22 |
| Weight | 350 Kg |
| Type of Product | Environmental Test Chamber |
| Humidity range | 65 to 98% R.H |
| Heating Power | 4.6KW |
| Environmental Temperature | 26°C |
| Cooling Method | Mechanical cooling and air cooling |
| Total Power | About 8.5KW |
| Temperature Deviation | ± 2°C |
| Humidity deviation | PID group — 3 zones / Deviation PID — 1 Zone |
| PID Control | ± 2.5% R.H (humidity Greater than 75% R.H) / ± 3% R.H (humidity ≤ 75%) |
| Blackboard temperature | 63°C to 100°C (deviation — ± 3°C) |
| Xenon lamp power | 1.8KW |
| Rain time | 1 to 9999 minutes |
| Spectral Wavelength | 290nm to 800nm |
| Environmental Humidity | ≤ 85% R.H |
| Storage Program | 120 Group / 1200 segments |
| Input Control | Universal input 1 / 0.1% of FS |
| Output Control | 2 points (heating / cooling) |
| Light Source Wavelength Range | 290 to 800nm |
| Xenon Lamp Service Life | 1500 hours |
| Xenon Lamp Quantity | 2 pieces |
| Rain Cycle | 1 to 240 minutes |
| Humidification Power | 3KW |
| Light Source Irradiance | Full spectrum 100 to 800 W/m² |
| Irradiation Area | 5500cm² |
| Arc Center to Sample Holder Distance | 35 to 380mm |
| Water Spray Time | 0 to 9999 minutes |
| Stop Spray Time | 0 to 9999h |
| Inner Dimension (DxWxH) | 800 x 600 x 500 mm |
| Exterior Dimension (WxDxH) | 1350 x 1200 x 1850mm |
Key Features
- Illumination time can be programmed continuously
- Multiple Filter Systems Available
- Relative Humidity Control function
- Air Temperature Control System
- Irregularly Shaped Sample Holder
- Minimal routine maintenance required
Product Description
Xenon Test Chamber LXC-A22 is a spacious 408L chamber that works in a temperature range of 10℃ to 80℃. It utilizes an imported air-cooled full solar spectrum long arc xenon lamp as the light source. A water spray function is available to simulate the effects of outdoor moisture on materials. Our test chamber integrates a high-quality xenon arc tube for consistent performance. It offers quick and easy lamp replacement with durable filters to maintain the required spectrum.
Applications :
Our Xenon Test Chamber is suitable for tests such as selecting new materials, improving existing materials, or evaluating changes in durability due to material composition changes. Applicable materials include plastics, rubber, paints, ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, construction materials, and electrical products.
Standard Accessories :
- Connecting Device
- Sealing Means
- Observation Window
- Air Duct Circulation Device
- Cooling System
- Heating Equipment
- Humidification Device
- Temperature & Humidity Controller
- Temperature Measuring Element
- Operating Units
- Indicator Light
- Light Source
- Protective Device
- Water Supply Device
