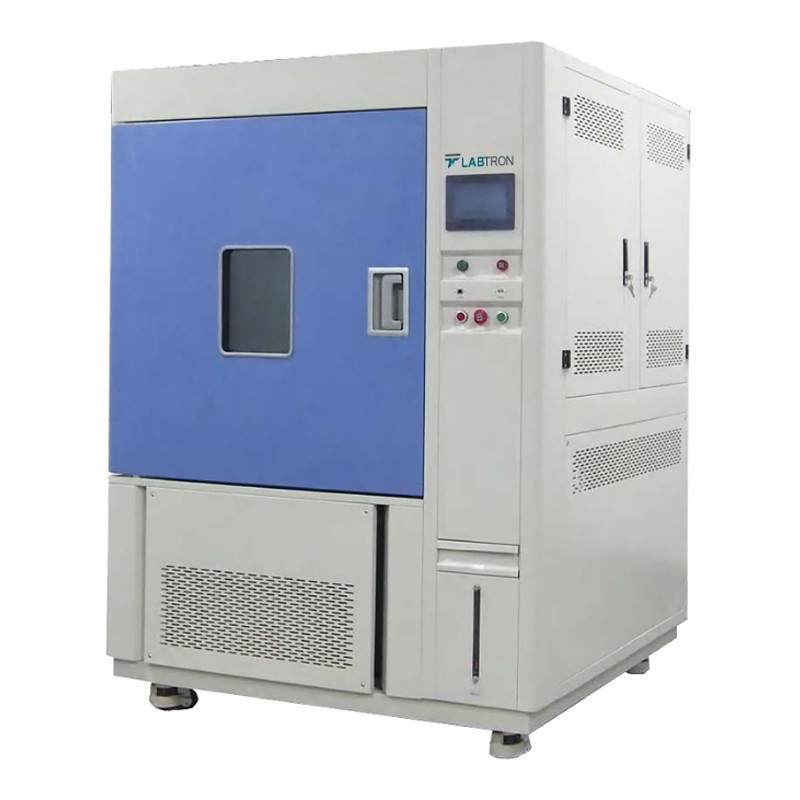

Labtron LXC-A11 Xenon Test Chamber
Specifications
| Country of Origin | UK |
|---|---|
| Environmental conditions | 5°C to 35°C / 85% RH |
| Brand | Labtron |
| Power Supply | AC 380V / 50Hz / 3-Phase / 4-Wire |
| Net Weight | 652 kg |
| Model | LXC-A11 |
| Gross Weight | 802 kg |
| Type of Product | Environmental Test Chamber |
| Humidity range | 50% to 98% RH |
| Chamber Temperature Range | Ambient to 100°C ± 2°C |
| Chamber Capacity | 760 L |
| Safety Device | Over-temperature protection / Over-current protection / Water shortage protection / Earth leakage protection / Phase sequence protection |
| Heating element | Nichrome heater |
| Controller | Programmable color LCD touchscreen / Ethernet interface / USB port |
| Observation window | Internal lighting / double layer thermo stability silicone rubber sealing |
| Packaging Dimensions | 1510 x 1580 x 2250 mm |
| Humidity deviation | ± 5% RH |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
| Maximum Noise | 65 dBA |
| Irradiance range | 100 to 1200 W/m² |
| Water Tank Dimension | 270 x 300 x 900 mm |
| Thermal Insulation | Polyurethane foam and insulation cotton |
| Refrigerating Unit | French TECUMSEH compressor |
| Bandwidth Measurement | 280 to 800 nm |
| Specimen Capacity | 43 pcs |
| Specimen Holder Size | 180 x 100 mm (L x W) with Thickness 20 mm |
| Irradiation Source | 1 piece of 6500W water-cooled Xenon lamp |
| Water Spray Cycle | 1 to 9999 Hr 59 min |
| Internal Dimensions (W x H x D) | 600 x 800 x 900 mm |
| Black Panel Temperature Range | 35°C to 85°C ± 2°C |
| Specimen Shelf | Rotary sample frame |
| Radiometer Tolerance | ± 5% |
| Window Dimension | 250 x 330 mm |
| External Dimensions (W x H x D) | 1400 x 1400 x 1950 mm |
Key Features
- Automatic purified water supply
- Includes UV Radiometer
- Mechanical compression refrigeration system
- Equipped with centrifugal fan
- External stainless-steel humidifier
Product Description
Xenon Test Chamber LXC-A11 operates at a maximum temperature of 100 ℃ and has a 760 L capacity for precise testing conditions. It offers an irradiance range from 100 to 1200 W/m² and measures wavelengths from 280 to 800 nm. This unit includes a water-cooled xenon arc lamp with quartz and borosilicate filters for accurate sunlight simulation. Our chamber features a programmable LCD touchscreen controller for user-friendly operation.
Applications :
Xenon Test Chamber simulates sunlight to test material durability under UV, temperature, and humidity conditions. It's used in laboratories, automotive, and aerospace industries to evaluate product performance.
