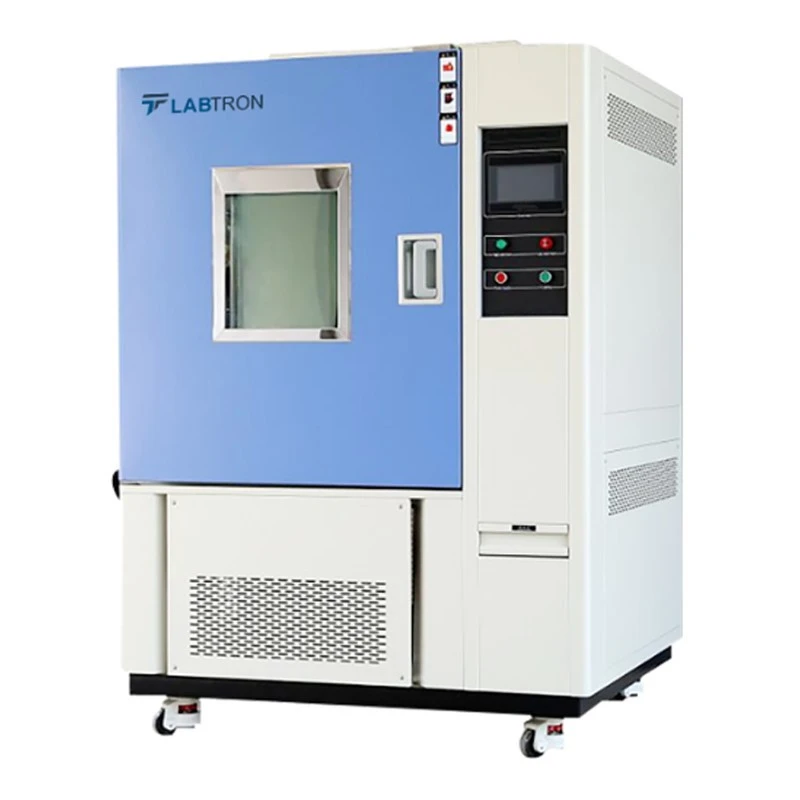

Labtron LTHC-C10 Temperature and Humidity Test Chamber
Specifications
| Country of Origin | UK |
|---|---|
| Relative Humidity | ≤85% RH |
| Brand | Labtron |
| Power Supply | 220V 50Hz / 380V 50Hz |
| Temperature range | 10°C to +50°C |
| Model | LTHC-C10 |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class / accuracy 0.001°C |
| Ambient Temperature (ºC) | 5°C to 35°C |
| Type of Product | Environmental Test Chamber |
| Humidity range | 20% to 98% RH |
| Humidity Sensor | Dry and wet bulb sensor |
| Heating element | Nichrome heater |
| Cooling System | Mechanical compression refrigeration system |
| Heating Rate | 3°C / min |
| Refrigerant | R404A / R23 |
| Air Circulation | Centrifugal wind fan |
| Controller | Programmable color LCD touch screen controller / Ethernet connection / PC Link |
| Cooling Rate | 1°C / min |
| Standard Configuration | 1 Cable hole (50 mm) with plug | 2 shelves |
| Heat Load | 1000 W |
| Observation window | Interior lighting / double-layer thermo stability silicone rubber sealing |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
| Maximum Noise | 65 dBA |
| Thermal Insulation | Polyurethane foam and insulation cotton |
| Interior Volume | 700 L |
| Temperature Deviation in Time | ±0.1 to 0.3°C |
| Humidity Deviation in Time | ±1% RH |
| Refrigerating Unit | French TECUMSEH compressor |
| Water Supply System | Automatic water supply / (water purification system) |
| Humidifier | External isolation / stainless steel surface evaporation humidifier |
| Dehumidification | Evaporator |
| Built-in Water Tank | 270 x 300 x 450 mm |
| View Window Size | 330 x 370 mm |
| Internal Dimension (D x W x H) | 700 x 1000 x 1000 mm |
| Temperature Deviation in Space | ±0.5 to 1.0°C |
| External Dimension (D x W x H) | 1180 x 1550 x 2110 mm |
Key Features
- Designed with PID controller system to control main unit, temperature system and Display
- Double layer insulating glass 8 cm thick, made of tempered glass
- Internal material designed with mirror surface finishing, 304 stainless steel which is rust proof, corrosion resistance
- Heat load can absorb 1000 W in -20℃
- Built-in LED light for the working room light which clearly observe samples
- The filter element is suggested to be replaced once a year
- Water re-circulation system consisting of water purifier which purifies sourced water to water tank, reduces water use and series of pipes
- Designed with PT-100 sensor, real time accurate detection and display of temperature
- Wet gauze and a real-time temperature, converted by temperature difference, show real-time relative humidity
- LCD display, which can display test conditions
- Equipped with automatic humidification, which automatically heated by the humidification tank
- High and low temperature corrosion resistance external material is made up of A3 steel plate with galvanized coating
Product Description
Temperature and Humidity Test Chamber LTHC-C10 is designed with a 700 L internal capacity volume. It offers a 20 to 98 % RH humidity range and temperature ranges from 10℃ to 50℃. Designed to simulate constant climatic conditions for testing a wide variety of products for their quality, performance, shelf life, and stability. It features a conductive film located on the interior glass (of double-layer 8 cm thick insulation glass) to prevent window frosting, built-in LED light for the work room lighting to clearly observe samples. A good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field.
Applications :
Test Chamber is used in the food industry, also basic and advanced research, pharmaceutical industries, chemical industries, and includes testing products relating to aerospace, electronics, automobile, and environmental stress screening.
