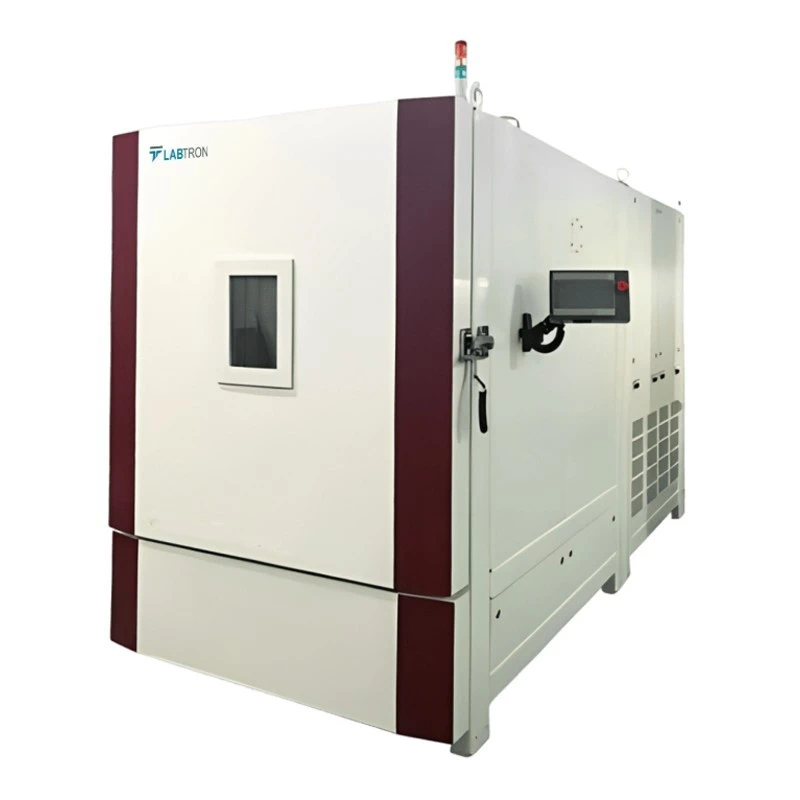

Labtron LATC-B10 Altitude Test Chamber
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Power Supply | AC380V ±10% / 50±1Hz / three-phase / four-wire |
| Temperature range | -70°C to +150°C (optional +180°C) |
| Model | LATC-B10 |
| Temperature Sensor | Pt100 |
| COOLING MODE | Air cooling or water cooling (as per requirement) |
| Type of Product | Environmental Test Chamber |
| Pressure Range | Atmospheric pressure to 0.5 kPa |
| Communication Interface | RS485 / USB / or LAN interface (optional) |
| Control Mode | BTPC — Balanced Temperature & Pressure Control System |
| Refrigerant | R404A/R23 |
| Temperature Uniformity | ±2°C (under atmospheric pressure / no-load) |
| Controller | Programmable / color LCD touch screen |
| Internal Material | SUS304 Stainless steel |
| Internal Volume | 120 L |
| Temperature Deviation | Less than or equal to 2°C (under atmospheric pressure / no-load) |
| Pressure Accuracy | Atmospheric to 40 kPa — ±2 kPa | 40 to 4 kPa — ±5% | Below 4 kPa — ≤ ±0.1 kPa |
| Shell Material | Cold rolled sheet steel / spray-coated |
| Temperature Fluctuation | Less than ±0.5°C (under atmospheric pressure / no-load) |
| Pressure Recovery Rate | ≤1 kPa/min |
| Heating & Cooling Time | ≤90 min (-55°C to +85°C) |
| Depressurization Time | Atmospheric pressure to 1 kPa ≤30 min |
| Thermal Insulation | Glass wool or polyurethane foam |
| Refrigeration Mode | Mechanical compression / two-stage refrigeration |
| Internal Dimensions (DxWxH) | 400 × 500 × 600 mm |
| External Dimensions (DxWxH) | 1900 × 800 × 1550 mm |
Key Features
- Balanced temperature & Pressure control
- High-quality stainless steel chamber
- Two-stage refrigeration system
- Energy-efficient insulation technology
- Rapid temperature recovery capabilities
- Advanced pressure simulation control
- Quick environmental simulation response
- Continuous air circulation system
Product Description
Altitude Test Chamber LATC-B10 has a 120 L internal volume for controlled environmental testing. It operates within a temperature range of -70 °C to +150 °C, with an optional high-temperature setting of +180 °C. The pressure range extends from atmospheric pressure to 0.5 kPa, ensuring precise altitude simulations. A programmable controller with a color LCD touch screen provides easy operation. Ideal for testing the adaptability and reliability of electronic components under extreme conditions.
Applications :
Our Altitude Test Chamber LATC-B10 evaluates electrical components' reliability under extreme conditions for aviation, aerospace, and electronics industries, ensuring durability.
