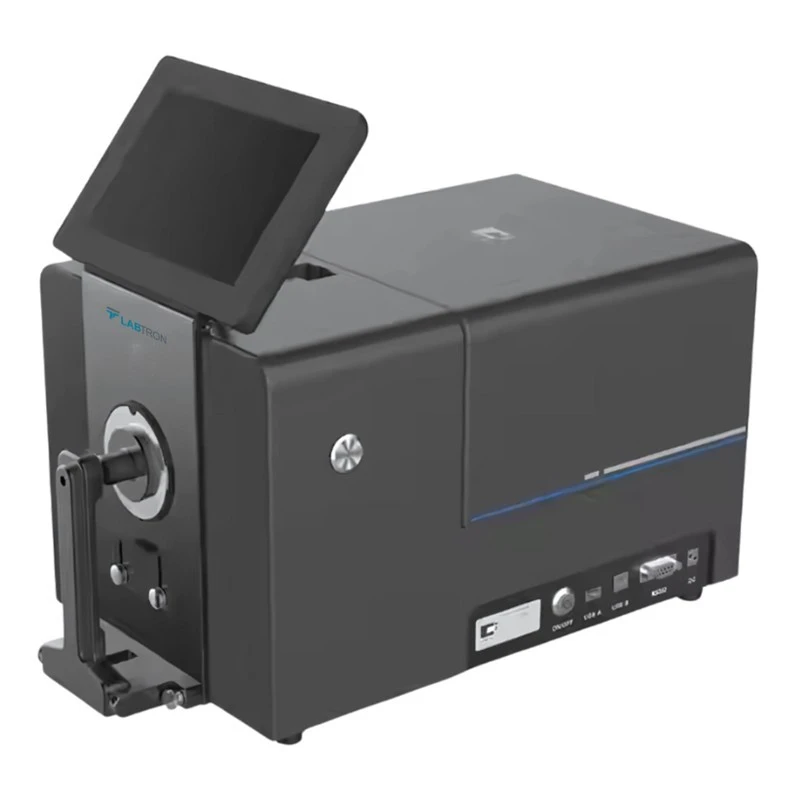

Labtron LTS-A16 Table Top Spectrophotometer
Specifications
| Country of Origin | UK |
|---|---|
| Repeatability | Reflectance/Transmittance SD ≤ 0.1% | Chromaticity ΔE*ab ≤ 0.015 (30× at 5s intervals) |
| Resolution | 0.0001 |
| Display | Reflectance and Transmittance graph/value / color value / color difference values / pass/fail / color simulation / color assessment / haze / liquid chromaticity values / color tendency |
| Relative Humidity | ≤ 80% RH (at 35°C) |
| Sensor | Silicon Photodiode Array |
| Brand | Labtron |
| Power | 12V / 3A |
| Operating Temperature | 5°C to 40°C |
| Interface | USB / USB-B / RS-232 |
| Storage Temperature | -20°C to 45°C |
| Light Source | Pulse Xenon Lamp / LED |
| Model | LTS-A16 |
| Wavelength Range | 360 nm to 780 nm |
| Weight | 10.8 kg |
| Type of Product | Spectrophotometer |
| Measurement time | SCI/SCE Less than 2s / SCI+SCE Less than 4s |
| Screen Size | 7 Inches Touch Screen |
| Storage Memory | 8 GB U Disk for data storage and transfer |
| Dimensions (L × W × H) | 430 × 240 × 260 mm |
| Illuminants | A / C / D50 / D55 / D65 / D75 / F1–F12 |
| Reflectance Range | 0 to 200% |
| Inter-Instrument Agreement | XLAV ΔE*ab ≤ 0.15 (BCRA Series II / avg. of 12 tiles at 23°C) |
| Color Spaces | Lab / LCh / Hunter Lab / Yxy / XYZ |
| Other functions | 1.Camera to view measurement area / 2.Supports horizontal vertical and downward measurements (with accessories) / 3.Auto humidity and temperature compensation |
| Measurement Aperture | Reflectance — XLAV Φ30 mm / LAV Φ18 mm / MAV Φ11 mm / SAV Φ6 mm | Transmittance — Φ25 mm (Auto aperture size recognition) |
| Color Difference | ΔEab / ΔECH / ΔEuv / ΔEcmc / ΔE94 / ΔE00 / ΔE*ab (Hunter) / 555 shade sort |
| Wavelength Pitch | 10 nm |
| Grating Method | Concave Grating |
| Sphere Diameter | 152 mm |
| Half Band Width | 5 nm |
| UV Measurement | Include UV / 400 nm cut / 420 nm cut / 460 nm cut |
| Viewing Angles | 2° and 10° |
| Transmittance Sample Size | No limit on sample width and height / Thickness ≤ 50 mm |
| Illumination/Viewing System | Reflection — d/8 (Diffused illumination / 8° viewing) | Simultaneous SCI/SCE (ISO7724/1 / CIE No.15 / ASTM E1164 / ASTM D1003-07 / DIN5033 Teil 7 / JIS Z8722 Condition C) | Transmittance — d/0 (0° viewing) |
Key Features
- Dual optical paths spectrum analysis technology
- Four type of UV test modes
- Compatibility with SCI/SCE measurement system
- Adopts D/8 geometry to meet color measurement
- Android operating system with rotating 7 inch touch display screen
- Open transmittance measurement are without specific sample size
- Switchable reflectance apertures
- Large storage memory
Product Description
Table Top Spectrophotometer LTS-A16 works on dual optical path spectrum analysis technology with full wavelength range for color and transmittance measurement. It adopts reflectance D/8° and transmittance D/0° geometry to measure both opaque and transparent materials. Four types of UV modes are used for fluorescence material measurement. Equipped with touch screen rotatable display screen and Android operating system. It is ideal for color measurement in textile, chemical, petroleum, oil industries.
Applications :
Widely used in the color and transmittance measurement in the industrial samples like plastic plate, powder material, petroleum and oil, textile and yarn, pellet materials, printing ink and packing material.
Standard Accessories :
- Power Adaptor
- USB Cable
- Fixture for transmittance
- U disk PC software
- Black Calibration Cavity
- White and Green Calibration Tile
- 0% Calibration Tile – Measure transmittance
- Reflectance Test Support
- 30mm, 18mm, 11mm and 6mm apertures
- Reflectance sample fixture
- Glass Cell – Size: 40 mm × 10 mm
Optional Accessories :
- Heating Fixture for Transmittance
- Vertical Support and Pneumatic Ram for Downward Measurement
- Reflectance Fixture for Small Size Sample
- Reflectance Glass Cell Support
- Corrosion-Resistant Protective Plate (non-removable)
- Sample Holder for Fiber
- Film Fixture
- Transmittance Fixture for Small Aperture
- Trolley Case
- European Standard Plug
- American Standard Plug
Other Indices:WI (ASTM E313-00 / ASTM E313-73 / CIE/ISO / AATCC / Hunter / Taube Berger / Stensby) | YI (ASTM D1925 / ASTM E313-00 / ASTM E313-73) | Tint (ASTM E313) | Metamerism index Milm | Stain fastness | Color fastness | ISO brightness | R457 | A / T / M / E density | APHA/Pt-Co/Hazen | Gardner | Saybolt | ASTM color | Haze | Total Transmittance | Opacity | Color Strength
