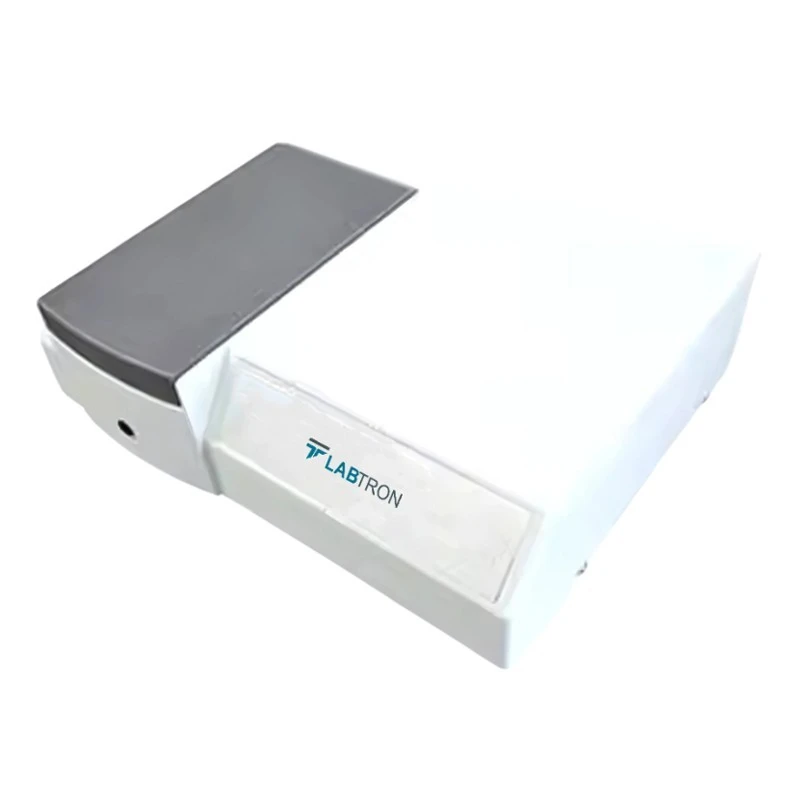

Labtron LTS-A13 Table Top Spectrophotometer
Specifications
| Country of Origin | UK |
|---|---|
| Repeatability | Color values — ΔE*ab ≤ 0.03 (after calibration / 30 measurements on test White board / 5-second intervals) / Max — 0.03 |
| Sensor | Dual light path sensor array |
| Brand | Labtron |
| Interface | USB |
| Light Source | A / C / D50 / D65 / D75 / F1 / F2 / F3 / F4 / F5 / F6 / F7 / F8 / F9 / F10 / F11 / F12 / DLF / TL183 / TL184 / NBF / U30 / CWF |
| Model | LTS-A13 |
| Wavelength Range | 400–700 nm |
| Weight | 7 KG |
| Storage temperature range | 25°C to 55°C / relative humidity ≤ 80% (at 35°C) / no condensation |
| Type of Product | Spectrophotometer |
| Measurement time | 2 seconds |
| Data Storage | Mass storage (on PC) |
| Dimension (L × W × H) | 475 × 340 × 150 mm |
| Measuring aperture | 25.5 × 10 mm (Cuvette support) |
| Size of integrated sphere | 40 mm / alvan diffused reflection surface coating |
| Illumination light source | CLED |
| Color difference formula | ΔEab / ΔECH / ΔEuv / ΔEcmc(2 — 1) / ΔE*cmc(1 — 1) / Color Classification |
| Color space | CIE — Lab / LCh / Luv / XYZ / Yxy / Transmittance / Hunterlab / Munsell MI / CMYK |
| Wavelength Interval | 10 nm |
| Observation Angle | 2° / 10° |
| Half Spectral Width | 5 nm |
| Reflectivity Range & Resolution | 0 to 200% / 0.01% |
| Measurement Time Interval | 2 seconds |
| Work Temperature Range | 0 to 45°C / relative humidity ≤ 80% (at 35°C) / no condensation |
| Data Being Displayed | Sample color values / color difference values / graph / pass/fail results / color error tendency / color simulation / display measurement area / history data / manual input / standard sample / generate measurement report |
| Light Source Longevity | 5 years / 1.5 million tests |
Key Features
- D/0 Diffused lighting illumination system
- CLED light source to guarantee the measurement speed & test accuracy
- 1.5 ml sample volume
- Double grating & double optical path splitting system
- SCI & SCE both includes lightening & observation conditions
- Connection to PC data storage , transmission
- UV enhanced silicon photodiode with up to 200% improved
- transmittance range
- ETC to ensure reliability & accuracy in every test measurement
- Performs glass and liquid color measurement
Product Description
Transmitted spectrophotometer LTS-A13 with table top design is used to measure the transmittance, absorbency, concentration as well as reflectance of the material. Equipped with SCS system for best measurement repeatability & accurate measurement of surface color of material. The double grating & double optical path splitting system & ETC (every test calibration technology) produces 0.01% resolution, color balance intensity across visible spectrum & highly accurate measurements.
Applications :
Transmittance spectrophotometer is used in the measurement of range of liquids and solvents like resins, solvents, oils etc. to be used in food, chemical, textile, life science industries.
Standard Accessories :
- Power cord
- USB cable
- Driving software
- Color QC software
- Black and white calibration tile
Illumination system:d/0 (Diffused lighting / 0° observation viewing) | SCS optical engine (light splitting and integration system) | ETC (real-time calibration technology) | SCI (specular reflection included) & SCE (specular reflection excluded) / simultaneous measurement,Other Colorimetric Indices:WI (Whiteness) — ASTM E313-10 / ASTM E313-73 / CIE/ISO / AATCC / Hunter / Taube / Berger / Ganz / Stensby | YI (Yellowness) — ASTM D1925 / ASTM E313-00 / ASTM E313-73 | Tint (ASTM E313 / CIE / Ganz) | Metamerism Index Milm | Staining Fastness | Color Fastness | APHA / ASTM Color | ISO Illuminance | Saybolt Transmittance | Standard Deviation
