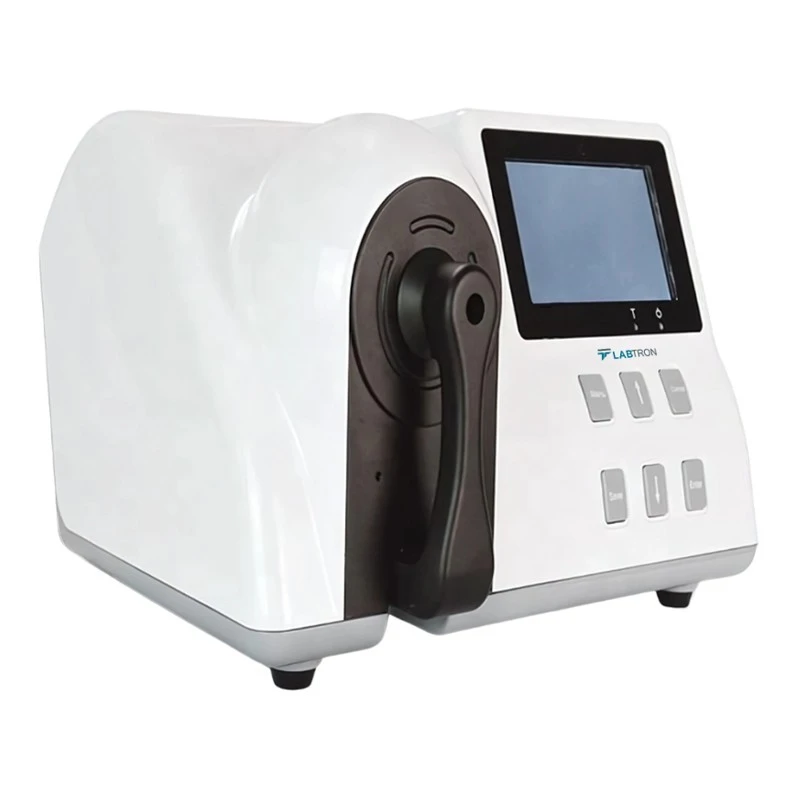

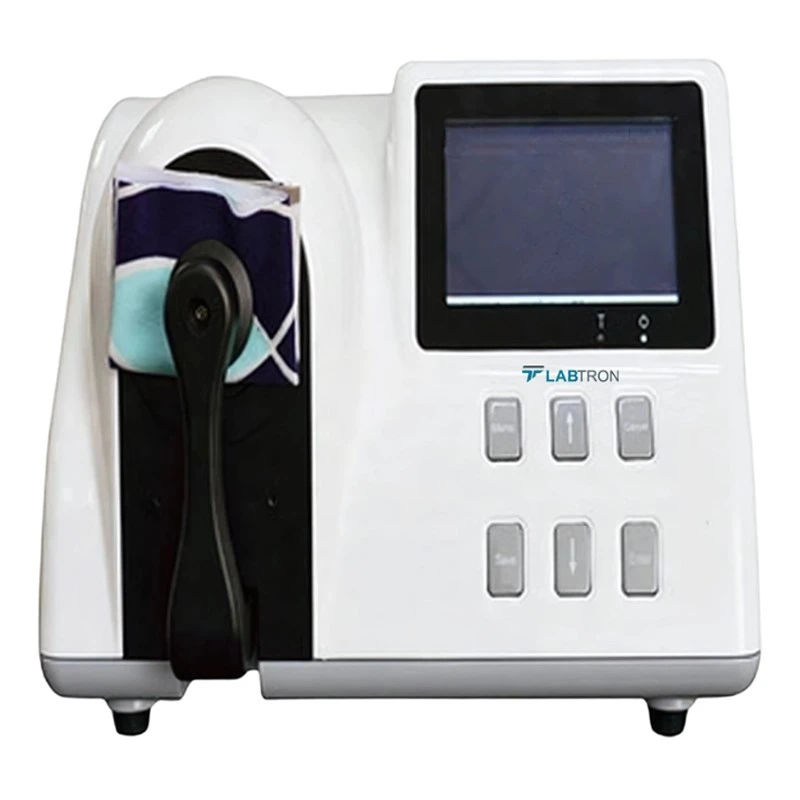

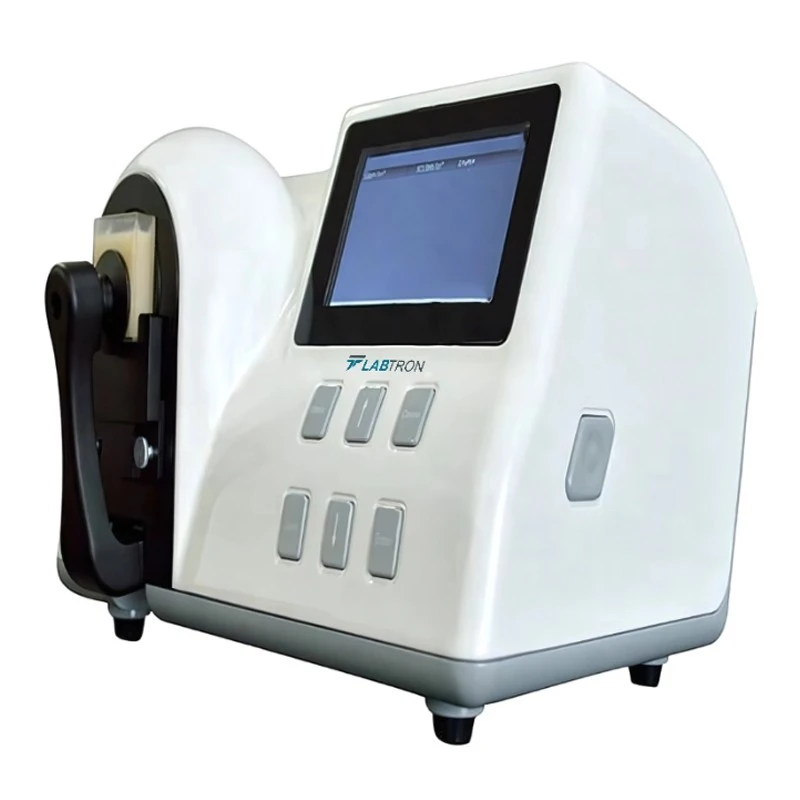

Labtron LTS-A12 Table Top Spectrophotometer
Specifications
| Country of Origin | UK |
|---|---|
| Repeatability | Light splitting reflectivity — SD ≤ 0.08% / Color values — ΔE*ab ≤ 0.015 (after calibration / 30 measurements on test White board / 5s intervals) / Max — 0.03 |
| Display | 5 inch TFT touch screen |
| Sensor | Dual light path sensor array |
| Brand | Labtron |
| Interface | USB |
| Light Source | A / C / D50 / D65 / D75 / F1 / F2 / F3 / F4 / F5 / F6 / F7 / F8 / F9 / F10 / F11 / F12 / DLF / TL183 / TL184 / NBF / U30 / CWF |
| Model | LTS-A12 |
| Wavelength Range | 400–700 nm |
| Weight | 18 Kg |
| Storage temperature range | 25°C to 55°C / relative humidity ≤ 80% (at 35°C) / no condensation |
| Type of Product | Spectrophotometer |
| Measurement time | 2 seconds |
| Data Storage | 20000 test results |
| Dimension (L × W × H) | 583 × 330 × 304 mm |
| Size of integrated sphere | 15.2 cm / alvan diffused reflection surface coating |
| Illumination light source | CLED |
| Color difference formula | ΔEab / ΔECH / ΔEuv / ΔEcmc(2 — 1) / ΔE*cmc(1 — 1) / Color Classification |
| Color space | CIE — Lab / LCh / Luv / XYZ / Yxy / Reflectance / Hunterlab / Munsell MI / CMYK |
| Wavelength Interval | 10 nm |
| Half Spectral Width | 5 nm |
| Reflectivity Range & Resolution | 0 to 200% / 0.01% |
| Measurement Time Interval | 2 seconds |
| Work Temperature Range | 0 to 45°C / relative humidity ≤ 80% (at 35°C) / no condensation |
| Data Being Displayed | Sample color values / color difference values / graphs / pass/fail results / color error tendency / color simulation / display measurement area / history data / manual input / standard sample / generate measurement report |
| Light Source Longevity | 10 years / 3 million tests |
| Measurement Caliber | LAV — 2.54 cm (1 inch) | MAV — 1.5 cm (0.6 inch) | SAV — 0.75 cm × 1.0 cm (0.3 inch × 0.4 inch) | VSAV — 0.3 cm × 0.8 cm (0.12 inch × 0.31 inch) |
Key Features
- Dual light path spectral analysis technology
- Manual fitting of white calibration board on measurement port
- Four measurement calibers, maximum is 25.4 mm
- Large display screen for easier measurement and settings
- Flexible measurement fixtures
- Simultaneously measures SCI and SCE
- PC connection for data transmission, software, storage
- Reflection and transmission measurement
- Adjustable UV components (light source) percentage value
Product Description
Table top spectrophotometer LTS-A12 has multiple measuring calibers with largest caliber of 25.4 mm, satisfies the measurement needs of samples of different size. It is possible to measure the color data of opaque samples and transmission and opacity of transparent or semi-transparent samples. Equipped with dual light path spectral analysis technology ensures precision and long-term stability of the instrument. The 8°/diffused illumination geometric design of lightning, provides full insight of the color data.
Applications :
Table top spectrophotometer with multiple measuring calibers has applications in measurement of solid as well as liquid material at multiple calibration points.

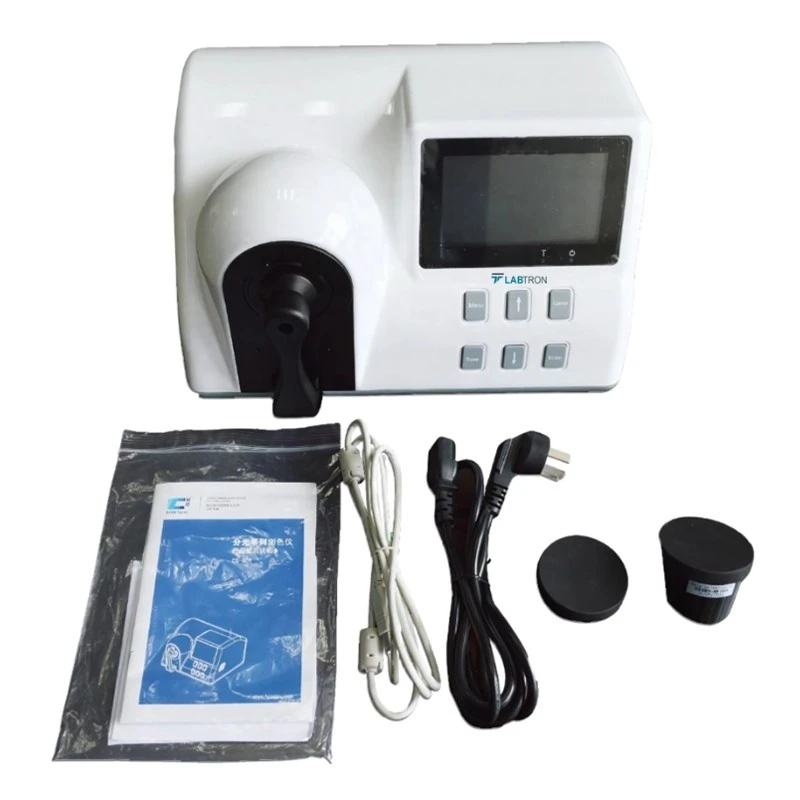

Standard Accessories :
- Power cord
- USB cable
- Driving software
- Color QC software
- Black and white calibration tile
Illumination system:d/8 (Diffused lighting / 8° observation angle) | SCS optical engine (light splitting and integration system) | ETC (real-time calibration technology) | SCI (specular reflection included) & SCE (specular reflection excluded) / simultaneous measurement,Other Colorimetric Indices:WI (Whiteness) (ASTM E313-10 / ASTM E313-73 / CIE/ISO / AATCC / Hunter / Taube / Berger / Ganz / Stensby) | YI (yellowness) (ASTM D1925 / ASTM E313-00 / ASTM E313-73) | Tint (ASTM E313 / CIE / Ganz) | Metamerism index Milm | Adhesive/changing color fastness | ISO illuminance | 8 gloss | A density | T density
