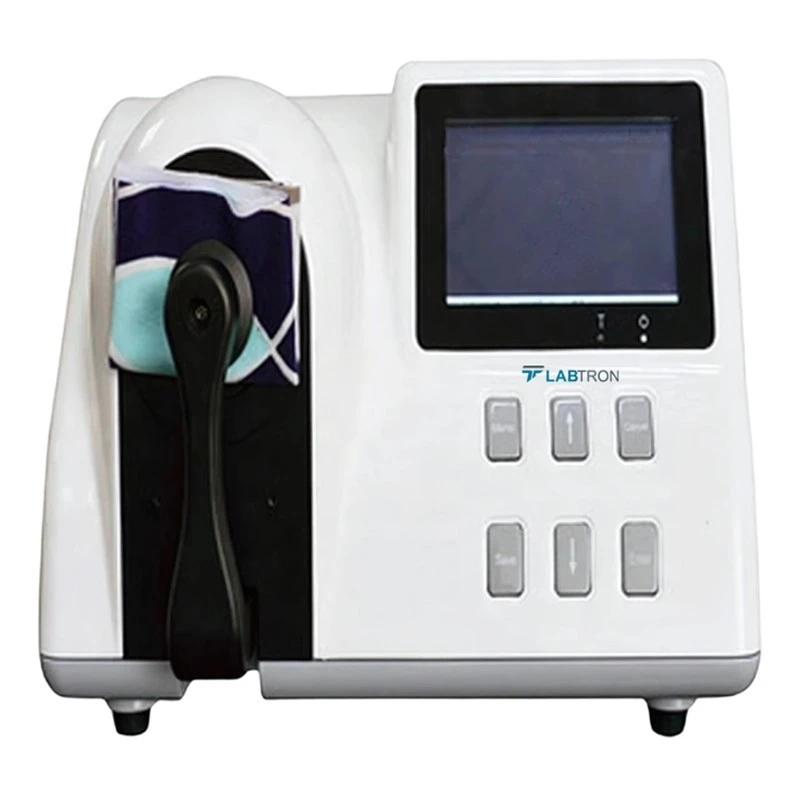

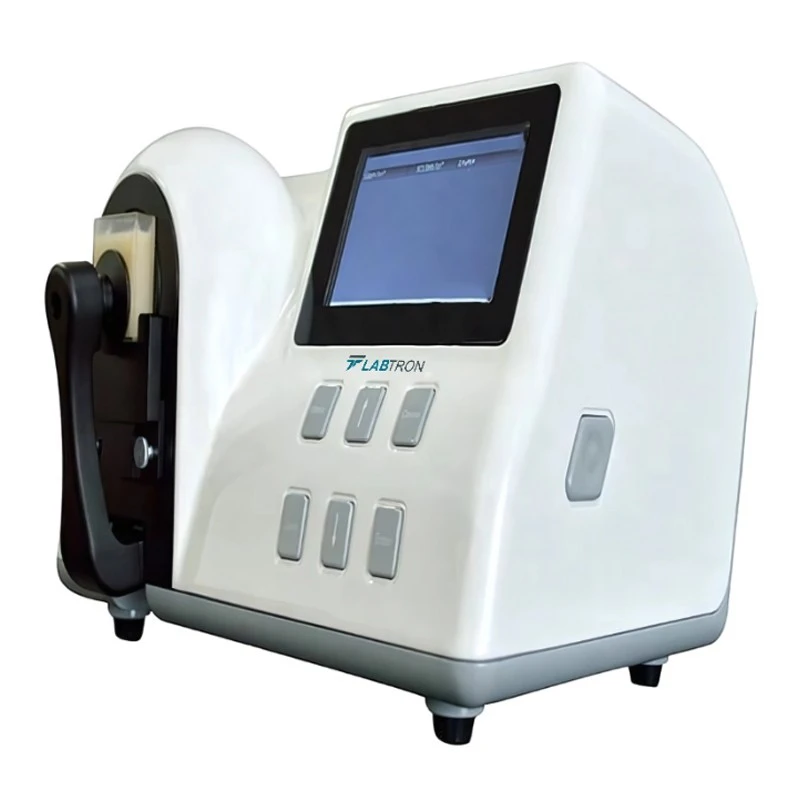

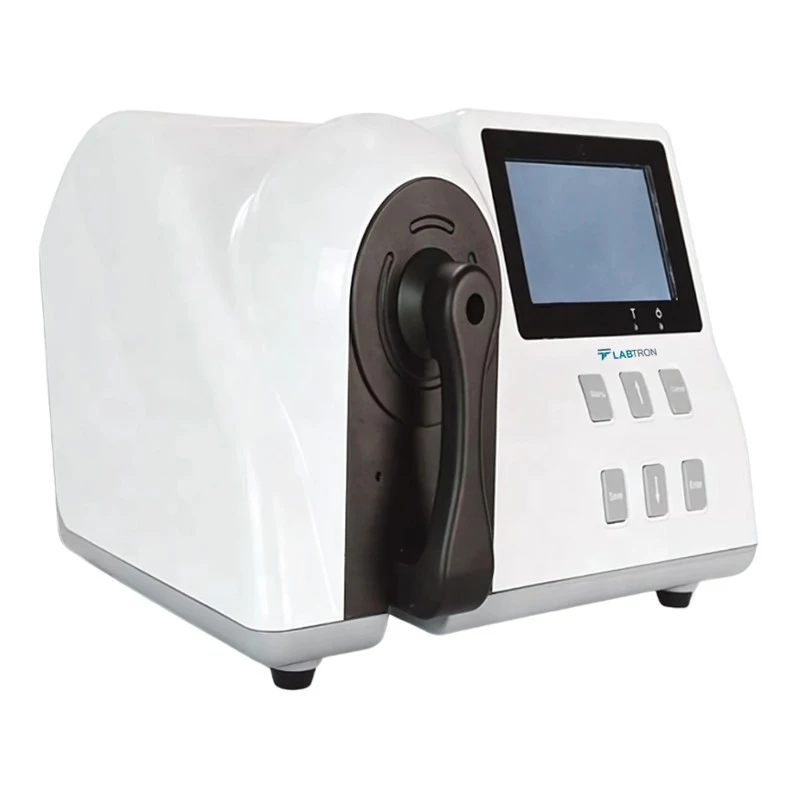

Labtron LTS-A11 Table Top Spectrophotometer
Specifications
| Country of Origin | UK |
|---|---|
| Repeatability | Light splitting reflectivity — SD ≤ 0.08% / Color values — ΔE*ab ≤ 0.015 (after calibration / 30 measurements on test White board / 5s intervals) / Max — 0.03 |
| Display | 5.5 inch TFT touch screen |
| Sensor | Dual light path sensor array |
| Brand | Labtron |
| Interface | USB |
| Light Source | A / C / D50 / D65 / D75 / F1 / F2 / F3 / F4 / F5 / F6 / F7 / F8 / F9 / F10 / F11 / F12 / DLF / TL183 / TL184 / NBF / U30 / CWF |
| Model | LTS-A11 |
| Wavelength Range | 400–700 nm |
| Weight | 4.5 kg |
| Battery Capacity | Rechargeable / 20000 continuous tests / 7.4V / 6000mAh |
| Storage temperature range | 25°C to 55°C / relative humidity ≤ 80% (at 35°C) / no condensation |
| Type of Product | Spectrophotometer |
| Measurement time | 1 second |
| Data Storage | 20000 test results |
| Dimensions (L × W × H) | 350 × 300 × 200 mm |
| Measuring aperture | 11 mm |
| Size of integrated sphere | 40 mm / alvan diffused reflection surface coating |
| Illumination light source | CLED |
| Color difference formula | ΔEab / ΔECH / ΔEuv / ΔEcmc(2 — 1) / ΔE*cmc(1 — 1) / Color Classification |
| Color space | CIE — Lab / LCh / Luv / XYZ / Yxy / Reflectance / Hunterlab / Munsell MI / CMYK |
| Wavelength Interval | 10 nm |
| Observation Angle | 2° / 10° |
| Half Spectral Width | 5 nm |
| Reflectivity Range & Resolution | 0 to 200% / 0.01% |
| Measurement Time Interval | 0.5 seconds |
| Color Matching System | Matches |
| UV Light Source | Not included |
| Work Temperature Range | 0 to 45°C / relative humidity ≤ 80% (at 35°C) / no condensation |
| Data Being Displayed | SPD distribution / sample color values / color difference values / graphs / pass/fail results / color error tendency / color simulation / display measurement area / history data / manual input / standard sample / measurement report |
| Light Source Longevity | 10 years / 3 million tests |
Key Features
- Side ward caliber
- 5 inch TFT touch screen
- Double beam optical path system
- 8°/diffused illumination geometric design of lightning
- Cube shaped quartz cells for measurement
- Spectral reflectance standard deviation within 0.08 value
- SCS system for measurement repeatability & ETC for stability
- Simultaneously measures SCE & SCI
- High capacity rechargeable lithium-ion battery
- UDB, PC software for data transmission, storage
Product Description
Table top spectrophotometer LTS-A11 is a high performance spectrophotometer with test caliber side ward for different aperture direction. Equipped with ETC technology solves the problem of long-term stability. The solid samples (paper sheets, cloth) can be placed directly on the measurement port & particles like pellets, tablets, powder (dye, food powder, chemical powder), paste (thick paste, opaque samples) can be placed in cube shape cells & then in the mouth of the measurement test.
Applications :
Table top spectrophotometer with side ward caliber can measure color of solid samples such as particles, powder, paste, pellets, opaque liquids used in textile, medicine, chemical, food, paper & other industries.

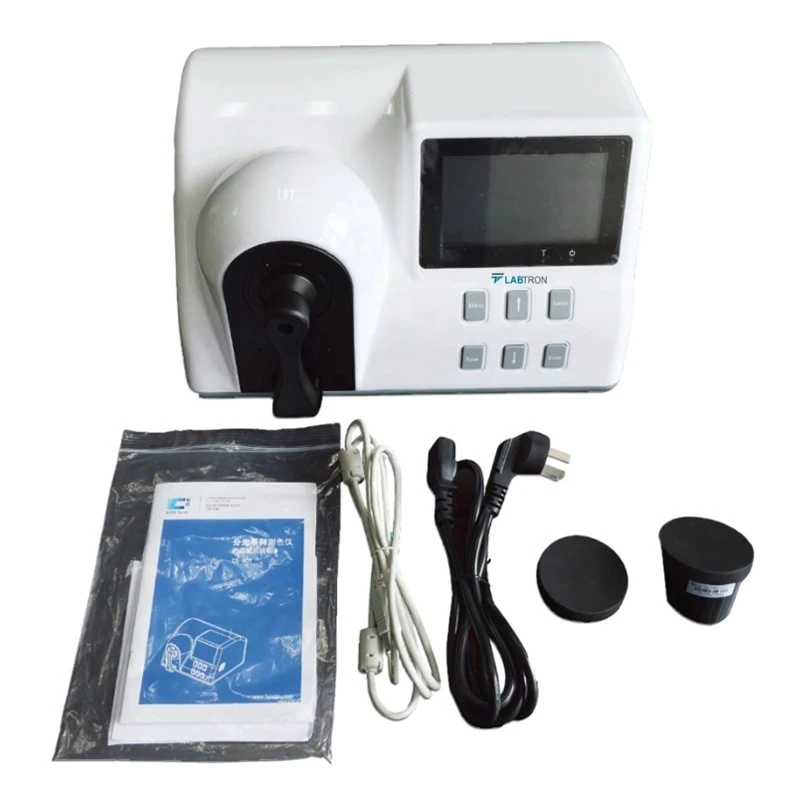

Standard Accessories :
- Power cord
- USB cable
- Driving software
- Color QC software
- Black and white calibration tile
Illumination system:d/8 (Diffused lighting / 8° observation angle) | SCS optical engine (light splitting and integration system) | ETC (real-time calibration technology) | SCI (specular reflection included) & SCE (specular reflection excluded) / simultaneous measurement,Other Colorimetric Indices:WI (Whiteness) (ASTM E313-10 / ASTM E313-73 / CIE/ISO / AATCC / Hunter / Taube / Berger / Ganz / Stensby) | YI (yellowness) (ASTM D1925 / ASTM E313-00 / ASTM E313-73) | Tint (ASTM E313 / CIE / Ganz) | Metamerism index Milm | Adhesive/changing color fastness | ISO illuminance | 8 gloss | A density | T density
