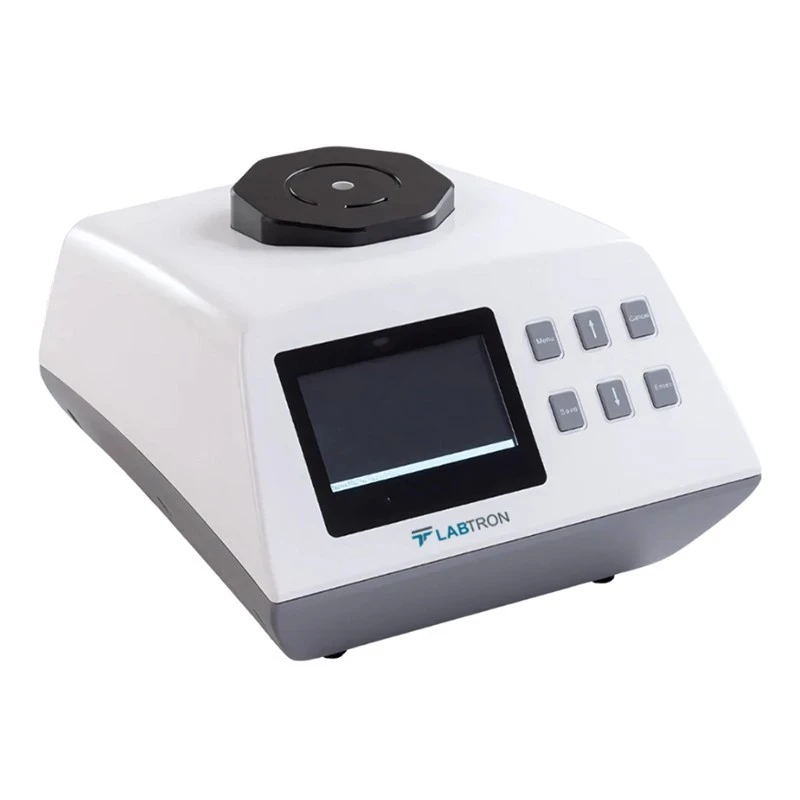

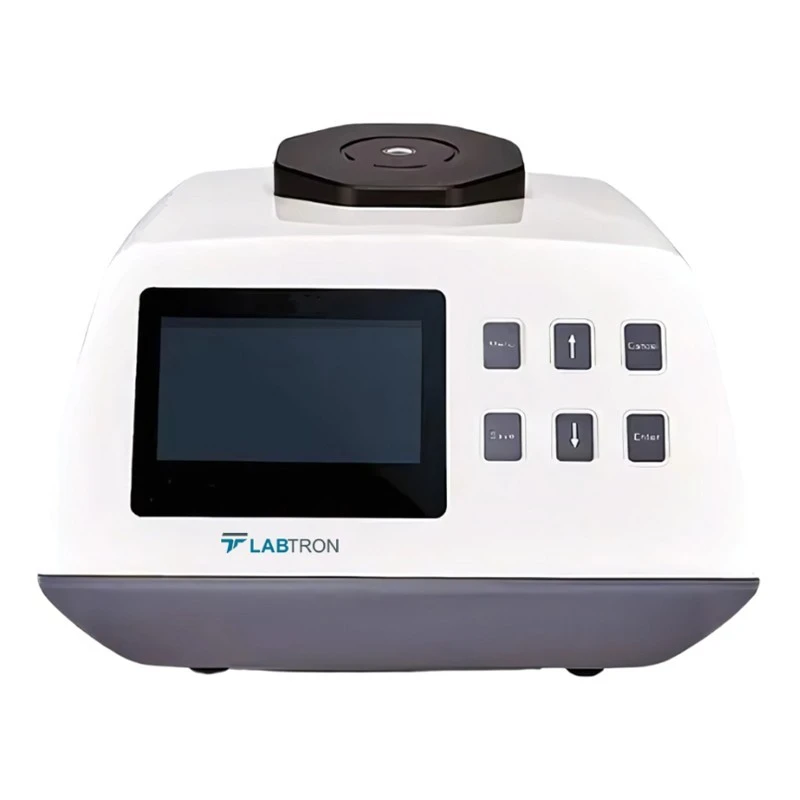

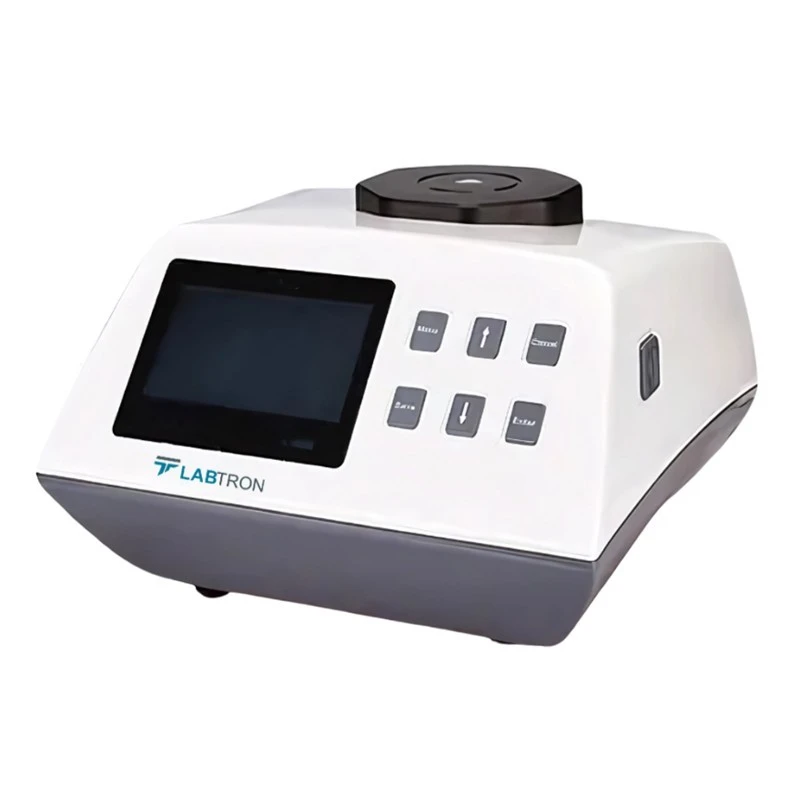

Labtron LTS-A10 Table Top Spectrophotometer
Specifications
| Country of Origin | UK |
|---|---|
| Repeatability | Light splitting reflectivity — SD within 0.08% / Color values — ΔE*ab ≤ 0.015 (after calibration / 30 measurements on White board at 5s intervals) / Max — 0.03 |
| Display | 5.5 inch TFT touch screen |
| Sensor | Dual light path sensor array |
| Brand | Labtron |
| Interface | USB |
| Light Source | A / C / D50 / D65 / D75 / F1 / F2 / F3 / F4 / F5 / F6 / F7 / F8 / F9 / F10 / F11 / F12 / DLF / TL183 / TL184 / NBF / U30 / CWF |
| Model | LTS-A10 |
| Wavelength Range | 400–700 nm |
| Weight | 4.5 kg |
| Battery Capacity | Rechargeable / 20000 continuous tests / 7.4V / 6000mAh |
| Storage temperature range | 25°C to 55°C / relative humidity ≤ 80% (at 35°C) / no condensation |
| Type of Product | Spectrophotometer |
| Measurement time | 1 s |
| Data Storage | 20000 test results |
| Dimensions (L × W × H) | 350 × 300 × 200 mm |
| Measuring aperture | 11 mm |
| Size of integrated sphere | 40 mm / alvan diffused reflection surface coating |
| Illumination light source | CLED |
| Color difference formula | ΔEab / ΔECH / ΔEuv / ΔEcmc(2 — 1) / ΔE*cmc(1 — 1) / Color Classification |
| Color space | CIE — Lab / LCh / Luv / XYZ / Yxy / Reflectance / Hunterlab / Munsell MI / CMYK |
| Wavelength Interval | 10 nm |
| Observation Angle | 2° / 10° |
| Half Spectral Width | 5 nm |
| Reflectivity Range & Resolution | 0 to 200% / 0.01% |
| Measurement Time Interval | 0.5 s |
| Color Matching System | Matches |
| UV Light Source | Not included |
| Work Temperature Range | 0 to 45°C / relative humidity ≤ 80% (at 35°C) / no condensation |
| Light Source Longevity | 10 years / 3 million tests |
Key Features
- Top port caliber
- 5 inch TFT touch screen
- Round shaped quartz plates for measurement
- SCS system for best measurement repeatability
- Simultaneous SCE & SCI measurement
- 8°/diffused illumination geometric design of lightning
- Connection to mini printers for printing
- High capacity rechargeable lithium-ion battery
- UDB, PC software for data transmission, storage
Product Description
Table top spectrophotometer LTS-A10 is a high performance spectrophotometer with test caliber (top port) upward. The solid samples (paper sheets, cloth) can be placed directly on the measurement port & particles like pellets, tablets, powder (dye, food powder, chemical powder), paste (thick paste, opaque samples) can be placed in round shape plates & then in the mouth of the measurement unit. It is adopted with every test calibration ETC technology, where the standard white boards is included in the optical system for reliable, accuracy of every measurement.
Applications :
The top port table top spectrophotometer can measure color of solid samples such as particles, powder, paste, pellets, opaque liquids used in textile, medicine, chemical, food, paper & other industries.
Standard Accessories :
- Power cord
- USB cable
- Driving software
- Color QC software
- Black and white calibration tile
Illumination system:d/8 (Diffused lighting / 8° observation angle) | SCS optical engine (light splitting and integration system) | ETC (real time calibration technology) | SCI (specular reflection included) & SCE (specular reflection excluded) / simultaneous measurement,Other Colorimetric Indices:WI (Whiteness) (ASTM E313-10 / ASTM E313-73 / CIE/ISO / AATCC / Hunter / Taube / Berger / Ganz / Stensby) | YI (yellowness) (ASTM D1925 / ASTM E313-00 / ASTM E313-73) | Tint (ASTM E313 / CIE / Ganz) | Metamerism index Milm | Adhesive/changing color fastness | ISO illuminance | 8 gloss | A density | T density,Data Being Displayed:SPD distribution / sample color values / color difference values / graphs / pass/fail results / color error tendency / color simulation / display measurement area / history data / color simulation / manual input / standard sample / measurement report
