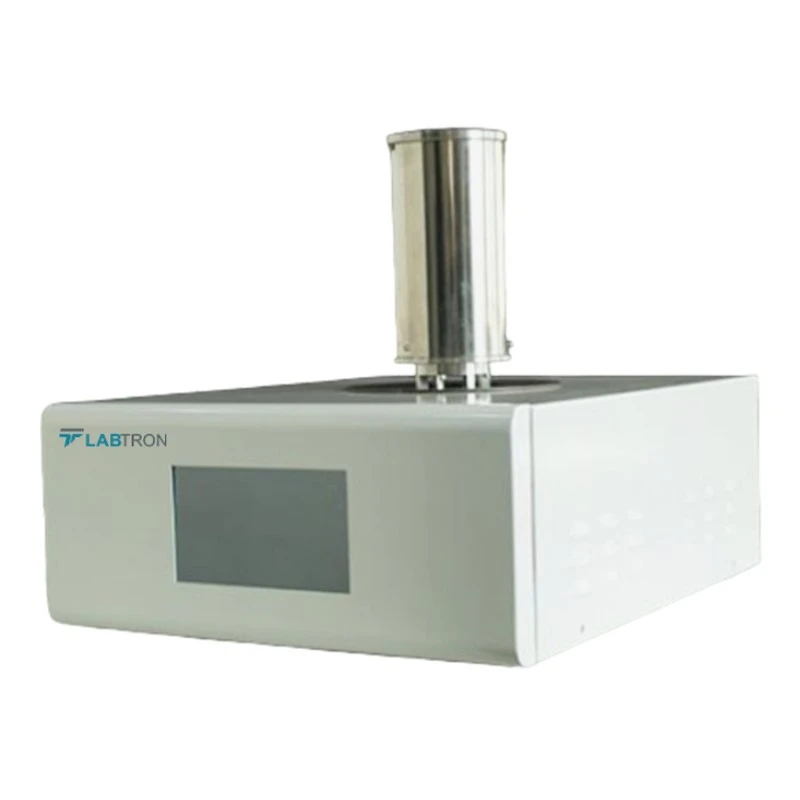

Labtron LTGA-A11 Automatic Thermogravimetric Analyzer
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | 0.01µg |
| Brand | Labtron |
| Power Supply | AC 220V 50Hz |
| Dimension | 620 × 520 × 850 mm |
| Net Weight | 86 kg |
| Temperature Resolution | 0.01°C |
| Temperature range | Room temperature to 1600°C |
| Model | LTGA-A11 |
| Gross Weight | 89 Kg |
| Type of Product | Thermogravimetric Analyzer |
| Heating Rate | 0.1 to 100°C/min |
| Display Mode | Large-screen LCD |
| Cooling Rate | 1 to 20°C/min |
| Data interface | Standard USB interface |
| Temperature Fluctuation | ±0.1°C |
| Temperature Control Method | Heating / Constant Temperature / Cooling |
| Cooling Time | 15 min (1000°C to 100°C) |
| Constant Temperature Time | 0 to 300min arbitrarily set |
| Balance Measuring Range | 1mg to 2g |
| Atmosphere | Inert / Oxidizing / Reducing / Static / Dynamic |
| DSC Range | 0 to ±500mW |
| DSC Resolution | 0.01mW |
Key Features
- Metal nickel-cadmium alloy furnace body and tray sensor
- Quick and stable control system
- Circulating heat dissipation components
- Top-opening structure for easy operation
- Water area constant temperature device
- Replaceable furnace body
Product Description
Automatic Thermogravimetric Analyzer LTGA-A11 offers a broad temperature range capability, ranging from room temperature to 1600℃. It can accommodate diverse sample types and thermal processes. Consists of a built-in gas flow meter, including two-way gas switching and flow rate control. Integrates intelligent software that can automatically record the TG curve for data processing and print experimental reports.
Software Features:
- Enhanced performance with a 32-bit ARM Cortex-M3 processor
- Features a 24-bit four-channel sampling AD for collecting DSC, TG, and temperature signals
- Independent control over power supply and water circulation via an 8-bit microcontroller
- Utilizes USB two-way communication for remote operation and parameter adjustments
- 7-inch full-color touch screen for enhanced user experience, including TG calibration
Applications:
Automatic Thermogravimetric Analyzer is used in the analysis of material properties through thermal decomposition and mass changes. Applied in various fields such as materials science, chemistry, and pharmaceuticals.
