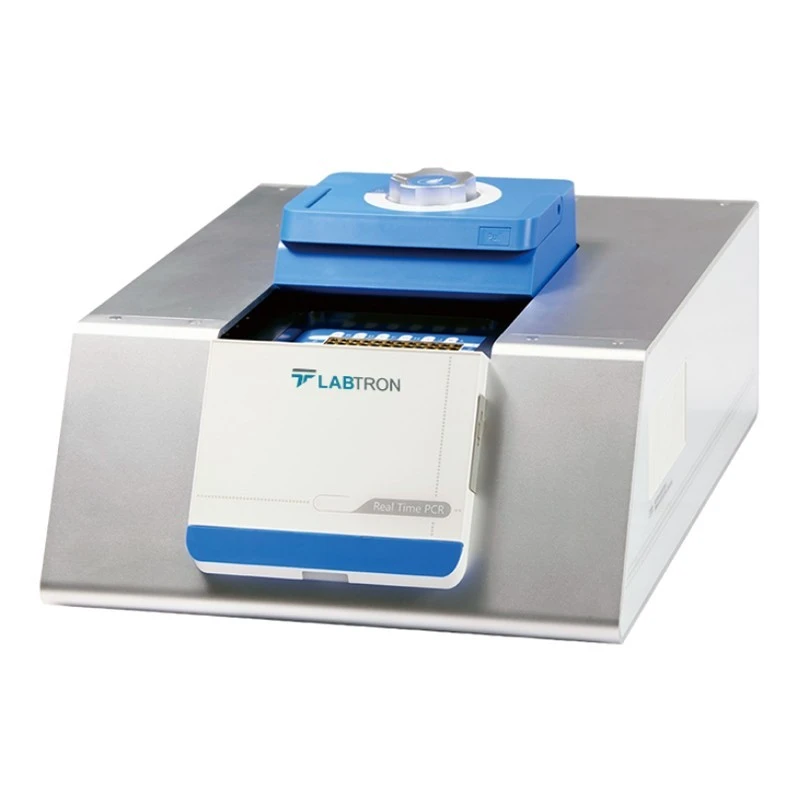

Real Time PCR LRTP-A40 is a powerful and precise modular-design PCR thermal cycler system with four fluorescence detection channels. Utilizing advanced Peltier-based technology, it achieves high amplification efficiency with a maximum ramp rate of up to 5°C/s, significantly saving time. The powerful optical system automatically collects data from all wells using a white LED light source and a high-resolution CCD camera. It is equipped with excitation filters (470 nm, 525 nm, 585 nm, 610 nm) and detection filters (525 nm, 570 nm, 610 nm, 678 nm), supporting fluorescent channels such as Channel 1: FAM/SYBR, Channel 2: VIC/HEX/JOE/TET/TAMRA/CY3, Channel 3: ROX/TexasRed, and Channel 4: CY5. An optional 5th channel is available upon request. Designed for 96-well plate formats, the system enables accurate gene expression analysis, genetic variation detection, and genotyping with minimal DNA or RNA input. Its independent software module simplifies experiment setup and provides fast results.

Applications:

Real Time PCR is widely implemented as an in vitro method for amplification and quantification of fluorescence dye-tagged DNA or RNA. It is essential for gene expression analysis, genetic variation studies, genotyping, and protein expression using small nucleic acid samples. The system is in high demand across fields like genetic engineering, virology, biotechnology, molecular biology, medicine, forensic science, and the pharmaceutical industry.
