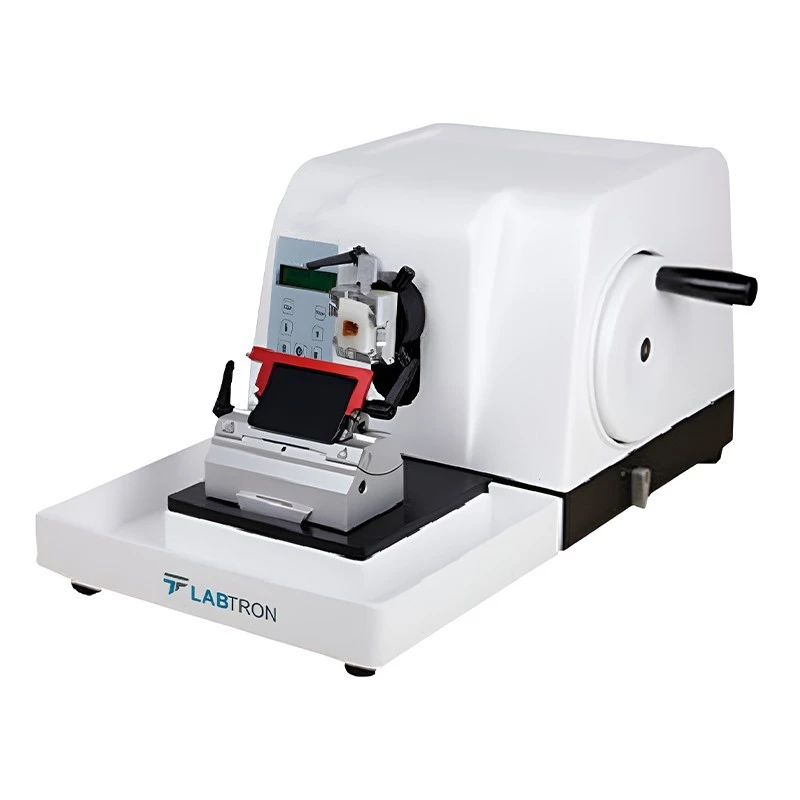

Labtron LSAM-B10 Semi-automatic Microtome
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | 100 W |
| Display | LCD Display |
| Brand | Labtron |
| Power Supply | AC 110/220V ± 10% / 50/60Hz |
| Precision | ±5% |
| Model | LSAM-B10 |
| Gross Weight | 45 Kg |
| Type of Product | Microtome |
| Specimen orientation | XY — 8°C / rotation 360°C |
| External dimension (W x D x H) | 585 x 410 x 305 mm |
| Specimen Vertical Stroke | 52 mm |
| Specimen Horizontal Stroke | 28 mm |
| Whole Layer Clearance Distance | 10 to 6000 µm (10 / 12 / 15 / 20...6000 / after 15 µm the increment is 5 µm) |
| Minimum Sectioning Thickness | 0.25 µm |
| Maximum Specimen Size | 50 x 70 mm |
| Feed Speed | 450 µm/s |
| Package Dimension (W x D x H) | 670 x 550 x 480 mm |
| Sectioning Thickness Range (0 to 60 µm) | 0 to 1.0 µm in increment 0.25 µm / 1 to 10 µm in increment 1 µm / 10 to 20 µm in increment 2 µm / 20 to 60 µm in increment 5 µm |
| Trimming Thickness Range (1 to 900 µm) | 1 to 10 µm in increment 1 µm / 10 to 20 µm in increment 2 µm / 20 to 100 µm in increment 5 µm / 100 to 900 µm in increment 50 µm |
Key Features
- Smooth running hand wheel
- Provides optimal tactile response
- Specimen trimming feature speeds up productivity
- Automatic sectioning speed is adjustable by gentle button
- Fast switching between paraffin block clamp and cassette clamp
- Auto slicing control ensures fast trimming and slicing switching
- Safety and emergency braking systems
- 3 mode control system: conventional mode, intelligent sensing mode, and whole layer cutting mode
- Lateral displacement of blade holder base enables better sectioning
- Provides work flow flexibility
- The precise positioning system not only easy to use, but also provides accurate X and Y axis adjustment
Product Description
Semi-automatic Microtome LSAM-B10 uses a streamlined design with extraordinary ergonomic characteristics for comfortable operation while maintaining reproducible precision during sectioning. It is a rotary microtome designed to combine mechanical feed with manual cutting, yielding quality ribbons. Equipped with imported roller guide rails and high precision roller screws, the hand wheel is designed to run smoothly, minimizing hand stress for maximum efficiency and productivity.
Applications:
Semi-automatic microtomes are extensively used in clinical fields, research laboratories, industrial laboratories, pathology labs, medical institutions, histology and biology labs, and many medical science applications.
