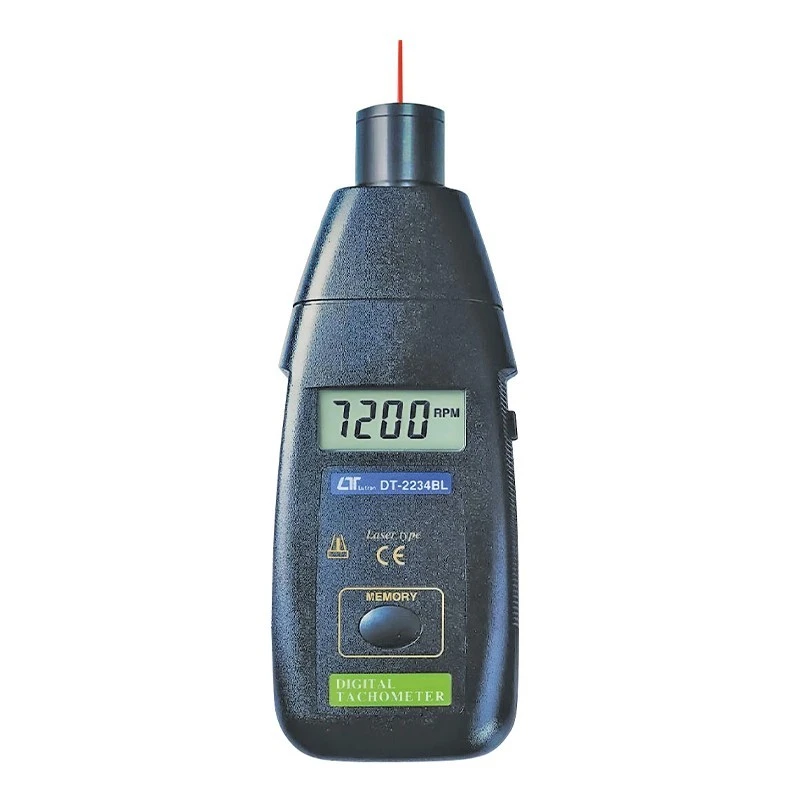

Lutron DT-2234BL Tachometer
Specifications
| Resolution | 0.1 RPM (Less than 1 /000 RPM) / 1 RPM (≥ 1 /000 RPM) |
|---|---|
| Accuracy | ± (0.05% + 1 digit) |
| Operating Humidity | Less than 80% RH |
| Power Consumption | Approx. DC 20 mA |
| Measurement Range | 10 to 99 /999 RPM |
| Display | 5 digits / 10 mm LCD |
| Brand | LUTRON |
| Power Supply | 4 x 1.5V AA (UM-3) batteries |
| Type | Laser Photo Tachometer |
| Operating Temperature | 0 to 50 ℃ |
| Dimensions | 190 x 72 x 37 mm |
| Memory | Last/Max./Min. value |
| Model | DT-2234BL |
| Weight | 250 g (including battery) |
| Circuit | Exclusive one-chip microcomputer LSI circuit |
| Detecting Distance | 50 to 2 /000 mm (typically) |
| Time Base | Quartz crystal / 4.194 MHz |
| Laser Light Source | Class 2 laser red diode / Less than 1 mW / 645 nm wavelength |
Key Features
- Laser photo tachometer
- Non-contact RPM measurement
- Wide measurement range
- LCD display
- Memory recall
Product Description
The Lutron DT-2234BL is a laser photo tachometer designed for non-contact RPM measurement. It features a laser light source with a long measuring range, an LCD display, and memory recall for maximum, minimum, and last measured values.
Available on EnvMart, these Tachometers are built with advanced sensing technology to deliver precise RPM measurements of rotating equipment. Lutron Tachometers are trusted for their accuracy, reliability, and user-friendly design, making them ideal for industrial maintenance, automotive diagnostics, and machinery monitoring.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measurement range of this tachometer is from 10 to 99,999 RPM.
The accuracy of the Lutron DT-2234BL is ± (0.05% + 1 digit).
The resolution is 0.1 RPM for measurements less than 1,000 RPM and 1 RPM for measurements equal to or greater than 1,000 RPM.
It requires 4 x 1.5V AA (UM-3) batteries for operation.
The dimensions are 190 x 72 x 37 mm, and it weighs 250 g including the battery.
The operating temperature range is from 0 to 50 ℃.
It features a 5-digit LCD display with a size of 10 mm.
It uses a laser light source for non-contact RPM measurement, with a detecting distance typically ranging from 50 to 2,000 mm.
It includes memory recall for the last, maximum, and minimum measured values.
The power consumption is approximately DC 20 mA.
The operating humidity should be less than 80% RH.
It uses a Class 2 laser red diode with a power of less than 1 mW and a wavelength of 645 nm.
