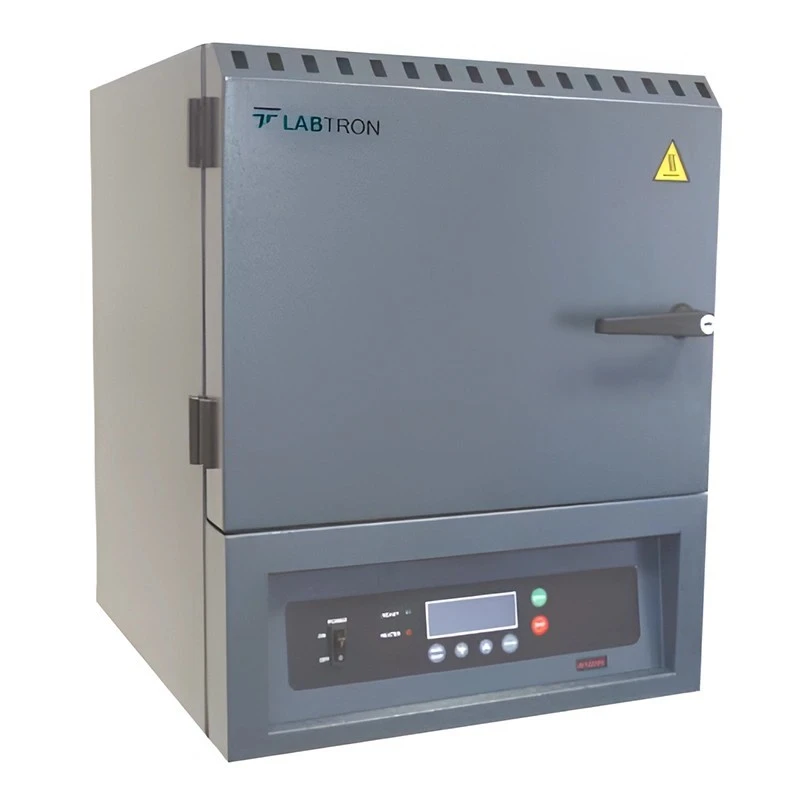

Labtron LMF-F21 Muffle Furnace
Specifications
| Display | 4 × 20” LCD |
|---|---|
| Capacity | 6 L |
| Brand | Labtron |
| Power | 7.000 W |
| Net Weight | 56 kg |
| Model | LMF-F21 |
| Max. Temperature | 1400°C |
| Gross Weight | 75 Kg |
| Housing Material | Steel Sheet |
| Measurement Accuracy | ±1°C |
| Thermocouple Type | S Type |
| Heating element | SiC (Silicon Carbide) |
| Max. current | 2 × 16A |
| Temperature Control Accuracy | ±1°C (can vary at low temperatures) |
| Inner Chamber Dimension (W × H × D) | 180 × 160 × 260 mm |
| Heating Program | 8 step |
| Thermal Rate | 3°C - 20°C |
| Program Memories | 6 |
| Heating Element Placement | Horizontally aligned next to the side walls |
| Inner Insulation Material | Ceramic Fibre Board |
| Front Face Insulation Material | Insulating Fire Brick |
| Door Insulation Material | Ceramic Fibre Board |
| Housing Coating | Epoxy powder coating |
| Chimney | Standard without fan |
| Lockable Door Handle | Sidewards |
| Inner Volume Temperature Homogeneity | ±10°C |
| Product Outer Dimension (W × H × D) | 545 × 636 × 684 mm |
| Gross Dimension (W × H × D) | 605 × 696 × 844 mm |
| Auto Start at Certain Date | Yes |
| Show Remaining Waiting Time | Yes |
| Skip the Waiting Step | Yes |
| Burst Heating Mode | Yes |
Key Features
- PID controller
- LCD display that shows current and target temperature
- Optimum insulation properties
- SiC heating elements horizontally aligned next to the side walls
- Accurate temperature measurement and control using S type thermocouple
- Durable inside lining made of high-quality light insulating bricks and ceramic fibre board
- Dual shell housing for low outer surface temperature
- Current limit control for safe operation
- High cold start heating rate
- Uses phase angle firing method to slow down the aging of SiC heating elements
- Provision of sound warning as the step changes and at the end of the program
- Equipped with step indicator
- Instantaneous energy consumption indicator
- Step indicator
- Total working hour counter
- Descriptive error indicator
- Control unit overheating sensor
- Open door sensor
- Provision of automatic power cutoff to the heating element if the control unit/control card overheats
- User-friendly operating menu
Product Description
LMF-F21 model of Muffle Furnace is a microprocessor-controlled furnace featuring a unique electronic design with a user-friendly operating menu in a 4-line display for easy operation. It uses a phase angle firing method to slow down the aging of SiC heating elements and has its own specialized software. The furnace ensures accurate temperature control and measurement using an S-type thermocouple. Crafted for minimal space requirements in the laboratory, it is equipped with an instantaneous energy consumption indicator, total working hour counter, control unit overheating sensor, and more. It is ideal for a maximum and continuous working temperature of 1400 °C.
Applications:
It is used for applications such as: fusing glass, creating enamel coatings, ceramics, soldering, brazing, rubbers, polymers, metallurgical applications, ash content determination, research centers, and medical laboratories to determine the volatile & non-combustible proportion of the sample.
Optional Accessories:
- High Temperature Gloves
- Tongs
- Alumina Crucibles
- Metal Crucibles
- Alumina Combustion Boats
- Ceramic Pipes
- Extra Thermocouples
Optional Features:
- Over Temperature Limiter
- Lift-up Door
- Stainless Steel Body
- Gas Supply Connection
- Open Door Sensor
- Second Thermocouple
- Observation Hole
- PC Connection
- 110 V Power Supply
Spare Parts:
- Inner Module: Changing the inner module renews your furnace close to a brand-new furnace
- Door Insulation: With sheet metal holder vessel
- Control Card: Easy-to-replace, pre-programmed
- Power Card: Easy-to-replace
- Display: 4 x 20 LCD display
- Cooling Fan: 80 x 80 x 20 / 220 V fan
- Chimney Fan: 40 x 40 x 10 / 5V fan
