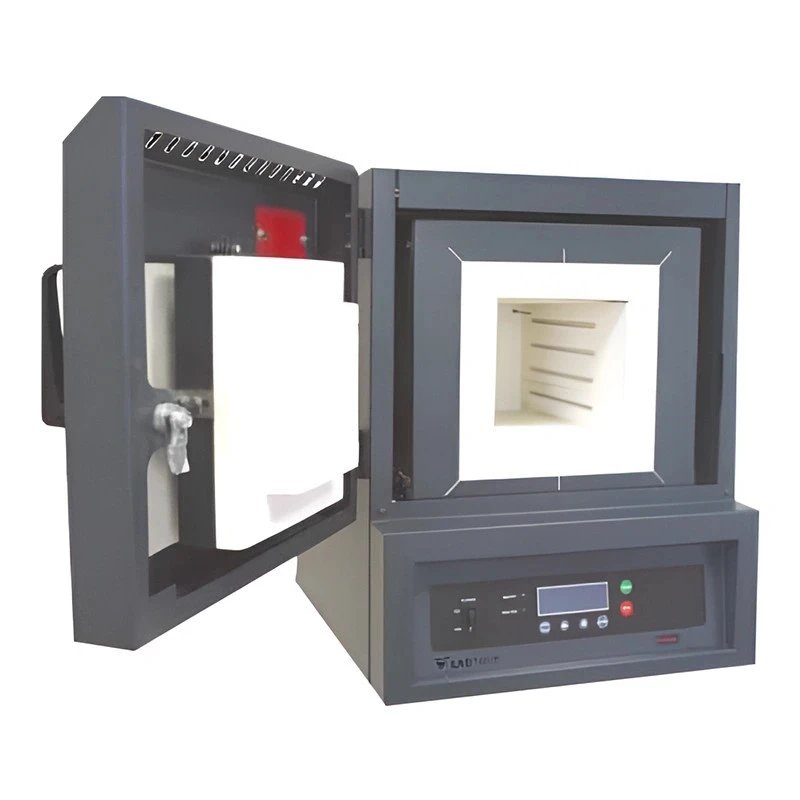

Labtron LMF-D63 1250 °C Muffle Furnace
Specifications
| Capacity | 60 L |
|---|---|
| Brand | Labtron |
| Power | 10.200 W |
| Net Weight | 133 kg |
| Model | LMF-D63 |
| Max. Temperature | 1250°C |
| Gross Weight | 160 kg |
| Housing Material | Steel Sheet |
| Measurement Accuracy | ±1°C |
| Thermocouple Type | K Type |
| Heating element | Fe-Cr-Al |
| Max. current | 3 × 15 A |
| Temperature Control Accuracy | ±1°C (can vary at low temperatures) |
| Inner Chamber Dimension (W × H × D) | 400 × 300 × 495 mm |
| Heating Program | 16 step |
| Thermal Rate | 3°C - 20°C |
| Program Memories | 5 |
| Heating Element Placement | Embedded into brick walls |
| Inner Insulation Material | Insulating Fire Brick |
| Front Face Insulation Material | Insulating Fire Brick |
| Door Insulation Material | Ceramic Fibre Board |
| Housing Coating | Epoxy powder coating |
| Chimney | Standard |
| Lockable Door Handle | Sidewards |
| Inner Volume Temperature Homogeneity | ±10°C |
| Product Outer Dimension (W × H × D) | 730 × 785 × 890 mm |
| Gross Dimension (W × H × D) | 790 × 1050 × 845 mm |
| Heating Element Protection | None |
| Auto Start at Certain Date | Yes |
Key Features
- PID controller
- LCD display that shows current and target temperature
- Optimum insulation properties
- 2, 4, 8, and 16 step heating programs available
- Fe-Cr-Al heating element embedded in brick walls
- Accurate measurement and control of temperature using K and S type thermocouples
- Second thermocouple for different adjustable purposes
- Durable inside lining made of light insulating bricks
- Dual shell housing for low outer surface temperature
- Steel sheet housing material
- Insulating fire brick as inner and front face insulation material
- Ceramic fibre board as door insulation material
- Quartz tube used to protect heating element
- Provision of audio warning as the step changes and at the end of the program
- Provision of automatic power cut-off to the heating elements and alert if the control unit/control card is overheated
- Instantaneous energy consumption indicator
- Calculator for average working temperature
- Descriptive error indicator
- User-friendly menu
Product Description
LMF-D63 Muffle Furnace is a uniquely designed furnace with optimal insulation properties and basic control options. It features a user-friendly operating menu with a 4-line display for easy operation. Equipped with Fe-Cr-Al heating elements embedded into bricks, it is ideal for a maximum and continuous working temperature of 1250 °C. The furnace includes an instantaneous energy consumption indicator, a calculator for average working temperature, a total working hour counter, and a descriptive error indicator, ensuring efficiency and reliability.
Applications:
This muffle furnace is used for various applications, including fusing glass, creating enamel coatings, ceramics, soldering, brazing, rubbers, and polymers. It is also used in metallurgical applications, ash content determination, and research centers or medical laboratories for analyzing the volatile and non-combustible proportion of samples.
Optional Accessories:
- High Temperature Gloves
- Tongs
- Alumina Crucibles
- Metal Crucibles
- Alumina Combustion Boats
- Ceramic Pipes
- Extra Thermocouples
Optional Features:
- Over Temperature Limiter
- Lift-up Door
- Stainless Steel Body
- Gas Supply Connection
- Open Door Sensor
- Second Thermocouple
- Observation Hole
- PC Connection
- 110 V Power Supply
Spare Parts:
- Inner Module: Changing inner module renews your furnace close to a brand-new furnace
- Door Insulation: With sheet metal holder vessel
- Control Card: Easy-to-replace, pre-programmed
- Power Card: Easy-to-replace
- Display: 4 × 20 LCD display
- Cooling Fan: 80 × 80 × 20 / 220 V fan
- Chimney Fan: 40 × 40 × 10 / 5V fan
