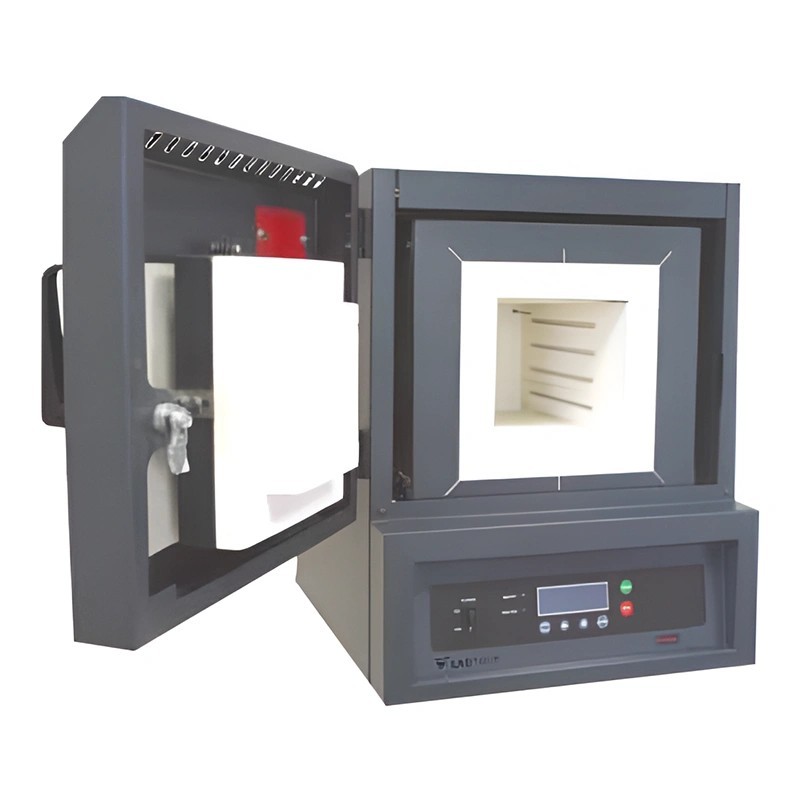

Labtron LMF-D40 1250 °C Muffle Furnace
Specifications
| Capacity | 20 L |
|---|---|
| Brand | Labtron |
| Power | 4.500 W |
| Net Weight | 81 Kg |
| Model | LMF-D40 |
| Max. Temperature | 1250°C |
| Gross Weight | 101 kg |
| Housing Material | Steel Sheet |
| Measurement Accuracy | ±1°C |
| Thermocouple Type | K Type |
| Heating element | Fe-Cr-Al |
| Max. current | 2 × 10 A / 1 × 20 A |
| Temperature Control Accuracy | ±1°C (can vary at low temperatures) |
| Inner Chamber Dimension (W × H × D) | 250 × 200 × 395 mm |
| Heating Program | 2 step |
| Thermal Rate | 3°C - 20°C |
| Program Memories | 2 |
| Heating Element Placement | Embedded into brick walls |
| Inner Insulation Material | Insulating Fire Brick |
| Front Face Insulation Material | Insulating Fire Brick |
| Door Insulation Material | Ceramic Fibre Board |
| Housing Coating | Epoxy powder coating |
| Chimney | Standard |
| Lockable Door Handle | Sidewards |
| Inner Volume Temperature Homogeneity | ±10°C |
| Product Outer Dimension (W × H × D) | 546 × 668 × 790 mm |
| Gross Dimension (W × H × D) | 606 × 950 × 728 mm |
| Heating Element Protection | None |
| Auto Start at Certain Date | No |
Key Features
- PID controller
- LCD display that shows current and target temperature
- Optimum insulation properties
- 2, 4, 8, and 16 step heating programs available
- Fe-Cr-Al heating element embedded in brick walls
- Accurate measurement and control of temperature using K and S type thermocouples
- Second thermocouple for different adjustable purposes
- Durable inside lining made of light insulating bricks
- Dual shell housing for low outer surface temperature
- Steel sheet housing material
- Insulating fire brick as inner and front face insulation material
- Ceramic fibre board as door insulation material
- Quartz tube used to protect heating element
- Provision of audio warning as the step changes and at the end of the program
- Provision of automatic power cut-off to the heating elements and alert if the control unit/control card is overheated
- Instantaneous energy consumption indicator
- Calculator for average working temperature
- Descriptive error indicator
- User-friendly menu
Product Description
Muffle Furnace LMF-D40 is a uniquely designed furnace with optimal insulation properties and basic control options. It features a user-friendly operating menu with a 4-line display for easy operation. Equipped with Fe-Cr-Al heating elements embedded into bricks, it is ideal for a maximum and continuous working temperature of 1250 °C. The furnace includes an instantaneous energy consumption indicator, a calculator for average working temperature, a total working hour counter, and a descriptive error indicator, ensuring efficient, accurate, and reliable operation.
Applications:
It is used for applications such as fusing glass, creating enamel coatings, ceramics, soldering, brazing, rubbers & polymers. It is also used for metallurgical applications, ash content determination, and in research centers and medical laboratories to determine the volatile & non-combustible proportion of the sample.
Optional Accessories:
- High Temperature Gloves
- Tongs
- Alumina Crucibles
- Metal Crucibles
- Alumina Combustion Boats
- Ceramic Pipes
- Extra Thermocouples
Optional Features:
- Over Temperature Limiter
- Lift-up Door
- Stainless Steel Body
- Gas Supply Connection
- Open Door Sensor
- Second Thermocouple
- Observation Hole
- PC Connection
- 110 V Power Supply
Spare Parts:
- Inner Module: Changing inner module renews your furnace close to a brand-new furnace
- Door Insulation: With sheet metal holder vessel
- Control Card: Easy-to-replace, pre-programmed
- Power Card: Easy-to-replace
- Display: 4 × 20 LCD display
- Cooling Fan: 80 × 80 × 20 / 220 V fan
- Chimney Fan: 40 × 40 × 10 / 5V fan
