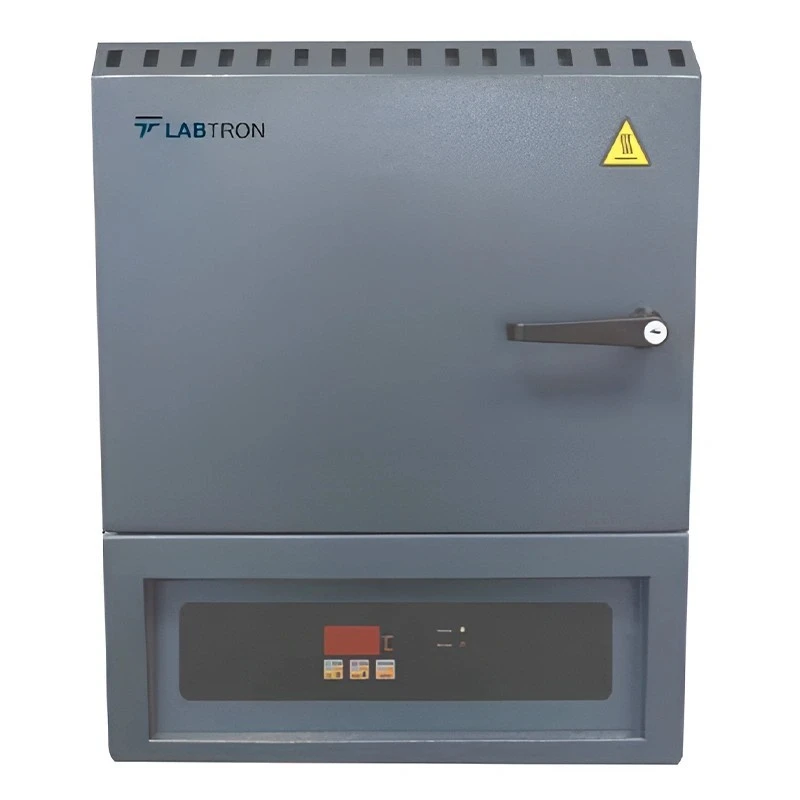

Labtron LMF-A11 Muffle Furnace
Specifications
| Capacity | 3 L |
|---|---|
| Brand | Labtron |
| Power | 1501 W |
| Net Weight | 25 kg |
| Model | LMF-A11 |
| Max. Temperature | 950°C |
| Gross Weight | 35 KG |
| Housing Material | Steel Sheet |
| Measurement Accuracy | ±1°C |
| Thermocouple Type | K Type |
| Heating element | Fe-Cr-Al |
| Max. current | 7A |
| Temperature Control Accuracy | ±1°C |
| Inner Chamber Dimension (W × H × D) | 130 × 105 × 230 mm |
| Heating Program | Two step |
| Thermal Rate | 5°C - 25°C / min |
| Program Memories | 2 |
| Heating Element Placement | Embedded into brick walls |
| Inner Insulation Material | Insulating Fire Brick |
| Front Face Insulation Material | Ceramic Fibre Board |
| Door Insulation Material | Ceramic Fibre Board |
| Housing Coating | Epoxy powder coating |
| Chimney | Standard |
| Element Heating Element Protection | Quartz Tube |
| Lockable Door Handle | Sidewards |
| Inner Volume Temperature Homogeneity | ±10°C |
| Product Outer Dimension (W × H × D) | 336 × 434 × 533 mm |
| Gross Dimension (W × H × D) | 420 × 620 × 620 mm |
Key Features
- PID controller
- New mono block body design
- 7 segment display
- Optimum insulation properties
- Direct/ 2 step heating program
- Fe-Cr-Al heating element embedded in brick walls
- K-type thermocouple
- Dual shell housing for low outer surface temperature
- Ceramic fibre board as front face and door insulation material
- Audio warnings as the step changes and at the end of the program
- Provision of automatic power cut-off to the heating elements and alert if the control unit/ control card is over heated
- User friendly
Product Description
LMF-A11 model of Muffle Furnace is uniquely designed with optimum insulation properties and is ideal for ashing of food, plastic, and other organic materials. With heating elements Fe-Cr-Al embedded into the brick walls, K-type thermocouple, and dual shell housing for low outer surface temperature, it is perfect for continuous working process at 950°C.
Optional Accessories:
- High Temperature Gloves
- Tongs
- Alumina Crucibles
- Metal Crucibles
- Alumina Combustion Boats
- Ceramic Pipes
- Extra Thermocouple
Optional Features:
- Over Temperature Limiter
- Gas Supply Connection
- Observation Hole
- PC Connection
- 110 V Power Supply
Spare Parts:
- Inner Module: Changing inner module renews your furnace close to a brand new furnace
- Door Insulation: With sheet metal holder vessel
- PCB: Easy to replace. Pre-programmed
- Display Card: 7 segment, 3 digit
- Chimney Fan: 4 x 40 x 10 / 5 V fan
