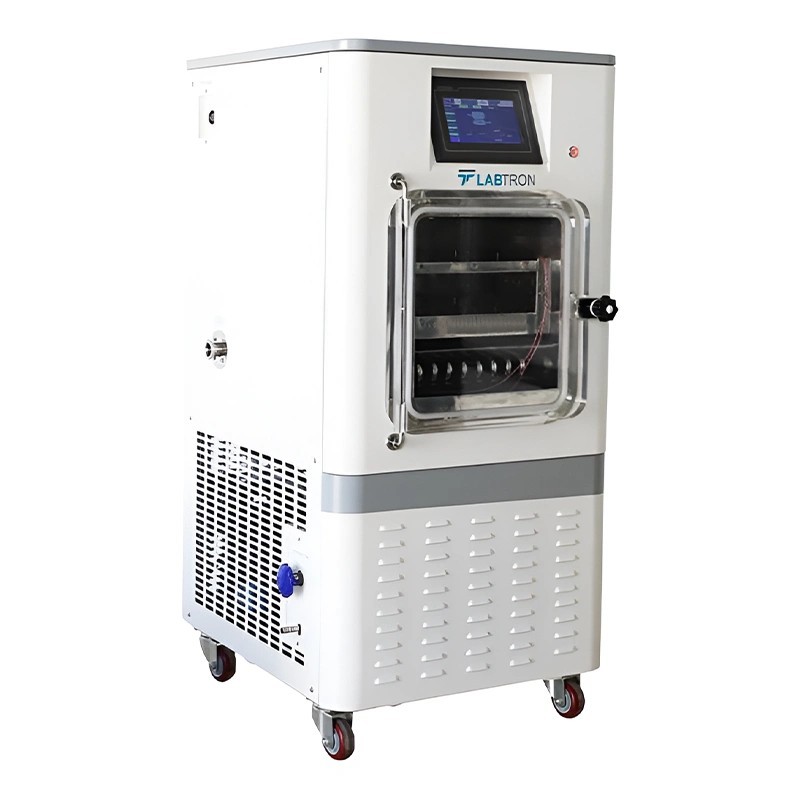

Labtron LPFD-D12 Top Press Freeze Dryer
Specifications
| Power Consumption | 6.5 kW |
|---|---|
| Brand | Labtron |
| Power Supply | 380V ± 10% / 50Hz |
| Dimension | 725 x 600 x 1270 mm |
| Storage Temperature | -40°C to +50°C |
| Noise | ≤ 80 dB |
| Model | LPFD-D12 |
| Weight | 210 Kg |
| Vacuum Degree | ≤ 1 Pa |
| Cooling Method | Air Cooled |
| Operating Ambient Temperature (ºC) | 10°C to 30°C |
| Packaging Dimension | 900 x 850 x 1475 mm |
| Packaging Weight | 265 kg |
| Pump Weight | 22 kg |
| Condenser Temperature | ≤ -75°C |
| Condenser Capacity | Greater than 10kg |
| Freeze Drying Area | 0.5 m² |
| Bulk Capacity | 5L |
| Defrosting | Electric defrosting |
| Shelf spacing | 100 mm |
| Shelf Temperature Range | -55°C to +10°C |
| Drying Chamber Shelf Layer | 4 |
| Temperature Difference | ± 1°C |
| Shelf Roughness | Ra ≤ 0.6mm |
| Shelf Flatness | ≤ 0.5mm/m |
| Temperature Decreasing Rate | 20°C down to -40°C within 60 min |
| Temperature Elevating Rate | -40°C up to +20°C within 60 min |
| Shelf Lowest Temperature | ≤ -55°C |
| Shelf Highest Temperature | ≥ +70°C |
| Shelf Dimension | 410 x 410 mm |
| 2 ml Vials of 16 mm | ≥ 2058 pieces |
| 10 ml Vials of 22 mm | ≥ 1056 pieces |
| Operating Relative Humidity | ≤ 70% |
| Storage Relative Humidity | ≤ 93% |
| Safety Classification | Class 1 / Type B |
| Pump Dimension | 565 x 168 x 282 mm |
| Pump Packaging Dimension | 590 x 190 x 385 mm |
| Pump Packaging Weight | 27 kg |
Key Features
- High-pressure bearing frame
- Efficient vacuum system
- Acrylic door material
- Polyurethane foam as thermal insulation
- AISI 304 Stainless steel shelf
- Red copper cooling pipe
- PT-100 Platinum resistance temperature sensor
- 7-inch true-color industrial embedded touchscreen
- SH-HPSC-II modular controller
Product Description
Top Press Freeze Dryer LPFD-D12 has a condenser, with a capacity of over 10kg and a temperature reaching as low as -75°C. It has a powerful vacuum pump evacuation rate of 16 cubic meters per hour. It features a user-friendly interface that allows for precise adjustments. Our dryer’s top press mechanism ensures superior sealing, reducing contamination risks and preserving product integrity.
Applications
Our Top Press Freeze Dryer is used in pharmaceutical and biotech industries for preserving sensitive materials, such as drugs and biological samples, by removing moisture while maintaining their structural integrity and potency.
Optional Accessories
- Eutectic point testing
- Vacuum regulation
- Vacuum pump oil mist filter
- Anti-backflow valve
- Remote computer control
