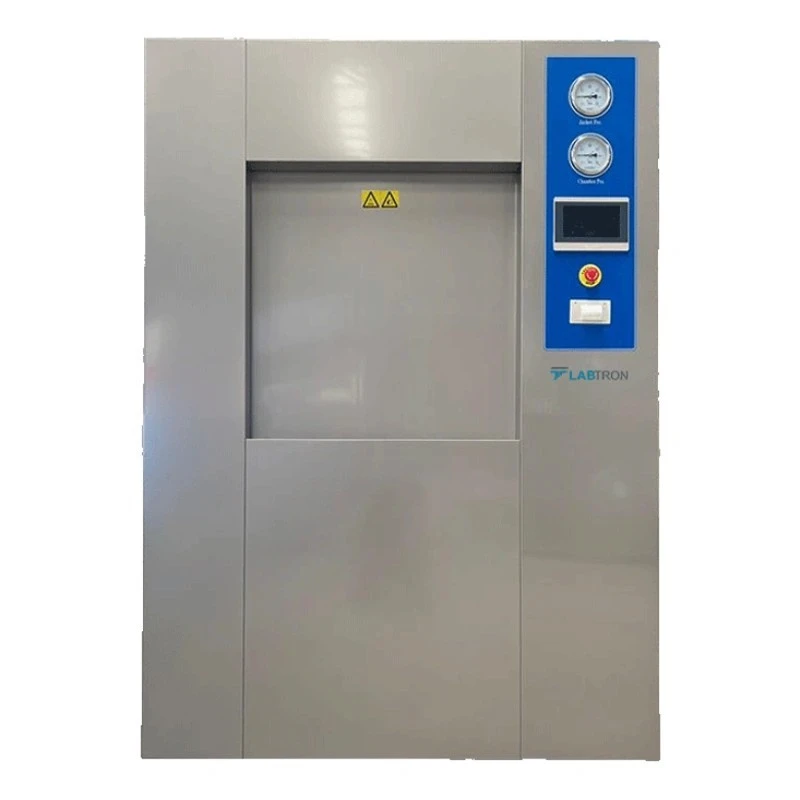

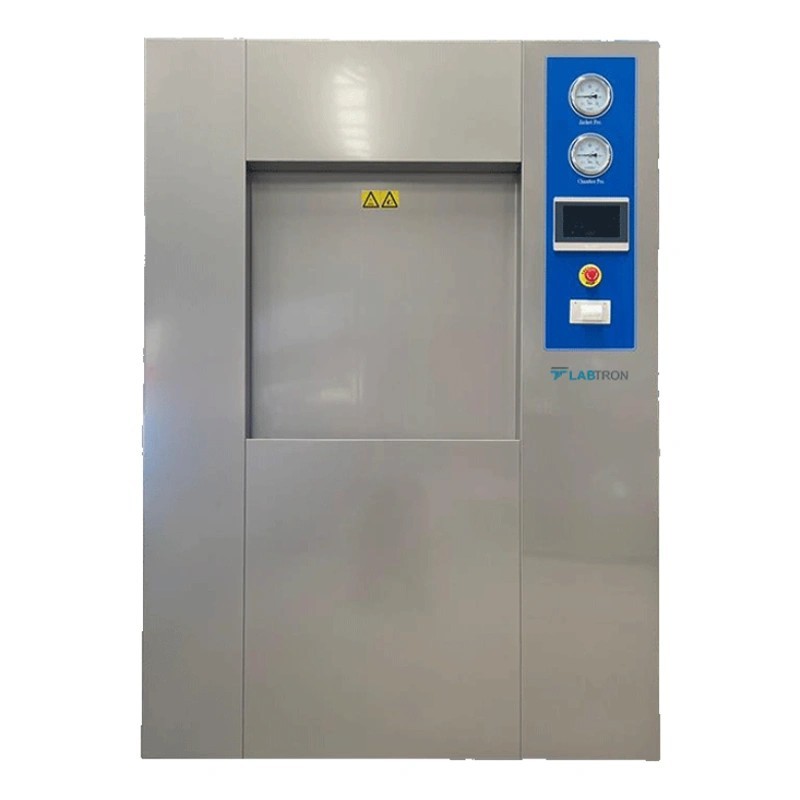

Labtron LHA-I15 Horizontal Autoclave
Specifications
| Power Consumption | 14 kW |
|---|---|
| Display | 7-inch Colour touch screen |
| Capacity | 120 L |
| Brand | Labtron |
| Power Supply | 220V/380V / 50Hz/60Hz |
| Model | LHA-I15 |
| Weight | 520 kg |
| Control System | PLC + HMI + Printer |
| Door Type | Automatic vertical sliding door |
| Working Temperature range | 105°C to 139°C |
| Water Pressure | 0.15 to 0.3 MPa |
| Door Number | Single Door |
| Steam pressure | 0.3 to 0.6 MPa |
| Water Consumption | 70 kg/cycle |
| Sterilization temperature | 150°C |
| Working pressure range | 0 to 0.25 MPa |
| Temperature Control Accuracy | ≤ ± 0.2°C |
| Vacuum system | Liquid ring vacuum pump / pre-vacuum / and post-vacuum pump |
| Sterilization Pressure | -0.1/0.3 MPa |
| Sterilization Time Range | 0 to 999 min |
| Drying Time Range | 0 to 999 min |
| Compressed Air Pressure | 0.4 MPa to 0.7 MPa |
| Steam Consumption | 10 kg/cycle |
| Vacuum Rate | -97 KPa |
| Temperature Equilibrium | ≤ ± 0.5°C |
| Safety Valve Open Pressure | 0.28 MPa |
| Sterilization Programs (Additional) | Gravity program / High vacuum program / User-defined cycle / Vacuum test / Fast program / Auxiliary program / Manual control / Automatic control |
| Chamber Dimensions (L × W × H) | 450 × 450 × 650 mm |
| Dimensions (L × W × H) | 1190 × 1700 × 1000 mm |
Key Features
- Equipped with Ethernet interface and USB interface
- AISI 304 stainless steel material
- Incorporates a built-in printer and steam generator
- Water level detection sensor for low water cutoff
- Mechanical pressure relief safety valve for chamber and jacket
- Over-temperature and over-pressure protection system
- Door safety protection alarm with Emergency stop button
- Comprehensive fault alert system and self-diagnostic function
- Seal door utilizes patented compressed air sealing technology
- Drain lines feature removable filter plugs designed to prevent clogging
Product Description
Horizontal Autoclave LHA-I15 is a Class B single-door autoclave that operates within a temperature range of 105℃ to 139℃. It features a 120 L capacity, a built-in feeding pump, and an integrated water tank. Utilizing saturated steam for disinfection and sterilization, it employs electric heating as its heating method. The autoclave is equipped with a standard GMP verification port and a flawless fault information prompt with self-diagnostic capabilities, ensuring safe and efficient operation.
Applications
Horizontal Autoclave LHA-I15 is widely used in CSSD (Central Sterile Services Department), laboratories, scientific research institutions, and the pharmaceutical and food industries. It is suitable for sterilizing unwrapped or wrapped instruments, dressings, rubber, liquids, plant instruments, porous items, and hollow items.
