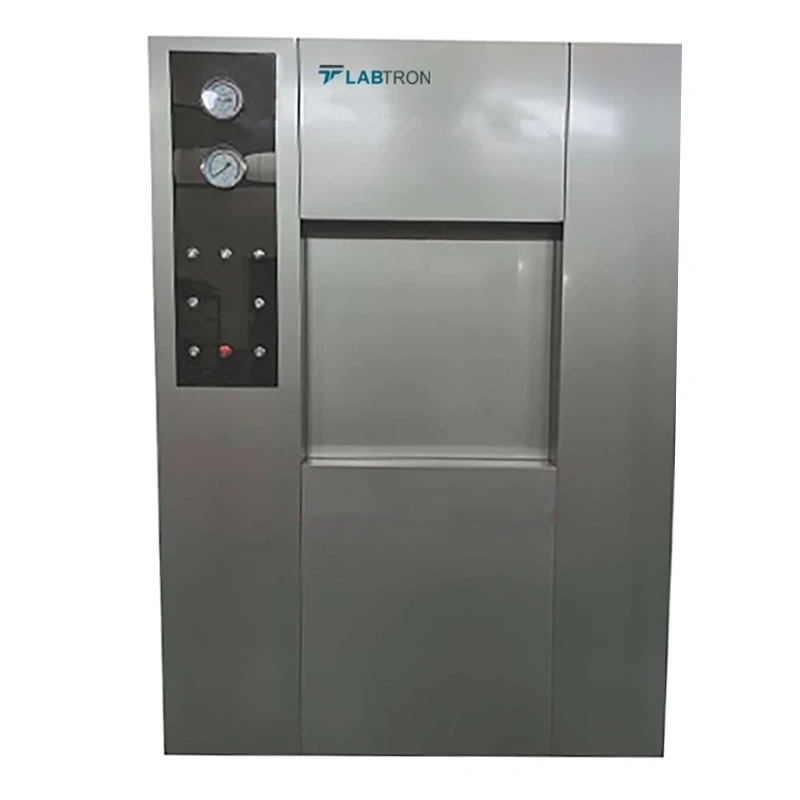

Labtron LHA-D20 Horizontal Autoclave
Specifications
| Capacity | 150 L |
|---|---|
| Brand | Labtron |
| Power | 380 V / 50 Hz / 2 + 24 KW |
| Operating Temperature | 150°C |
| Model | LHA-D20 |
| Weight | 550 KG |
| Overall dimensions | 1160 × 1150 × 1820 mm |
| Maximum Working Pressure | 0.25 MPa |
| Maximum Working Temperature | 138°C |
| Temperature Uniformity | ± 1°C |
| Ultimate Vacuum | -97 kPa |
| Pressure Display Accuracy | 0.1 kPa |
| Steam Consumption | 12 kg/C |
| Inner Chamber Operating Pressure | -0.1 to 0.3 MPa |
| Jacket Operating Pressure | 0.3 MPa |
| Opening Pressure of Inner Chamber Safety Valve | 0.28 MPa |
| Opening Pressure of Jacketed Safety Valve | 0.28 MPa |
| Inner Chamber Hydrostatic Test Pressure | 0.39 MPa |
| Jacket Test Pressure | 0.52 MPa |
| Temperature Display Accuracy | 0.1°C |
| Time of Vacuum Pulsation | 1 to 99 times |
| Amplitude of Vacuum Pulsation | -80 to 0 kPa |
| Number of Pulsations | Amplitude -80 to 80 kPa / times 1 |
| Times of Positive Pressure Fluctuation | 1 to 3 |
| Surface Temperature | ≤ 25°C |
| Tank Dimensions (W × D × H) | 450 × 800 × 450 mm |
Key Features
- 150 L volume capacity
- Horizontal chamber for efficient loading and unloading of items
- Air filter with filtering accuracy of ≤ 0.22 μm
- Double door channel type with pressure interlock system
- High quality and tear resistant silicone rubber material round hollow door seal ring
- Sanitary pipeline ensures a reliable and hygienic seal during the sterilization process
- Pneumatic control valve with long life
- Water ring vacuum pump with fast pumping speed
- Water tank reduces circulating water consumption of vacuum pump
- Automatic drainage device ensures steam saturation
- Alarm to alert user about over and low temperature and over pressure
Product Description
Horizontal Autoclave LHA-D20 is a 150 L capacity autoclave with a jacket made of S30408 stainless steel material. It features an advanced control system for automatic operation and a color touchscreen display for real-time monitoring of working parameters. Safety features include a motorized interlock door system, overpressure protection, and over-temperature protection, ensuring reliable and secure sterilization.
Applications
Horizontal Autoclave LHA-D20 is widely used in hospitals, pharmaceutical factories, food industries, scientific research institutes, and other facilities to sterilize and dry clothing, dressings, metal instruments, culture media, and more.
