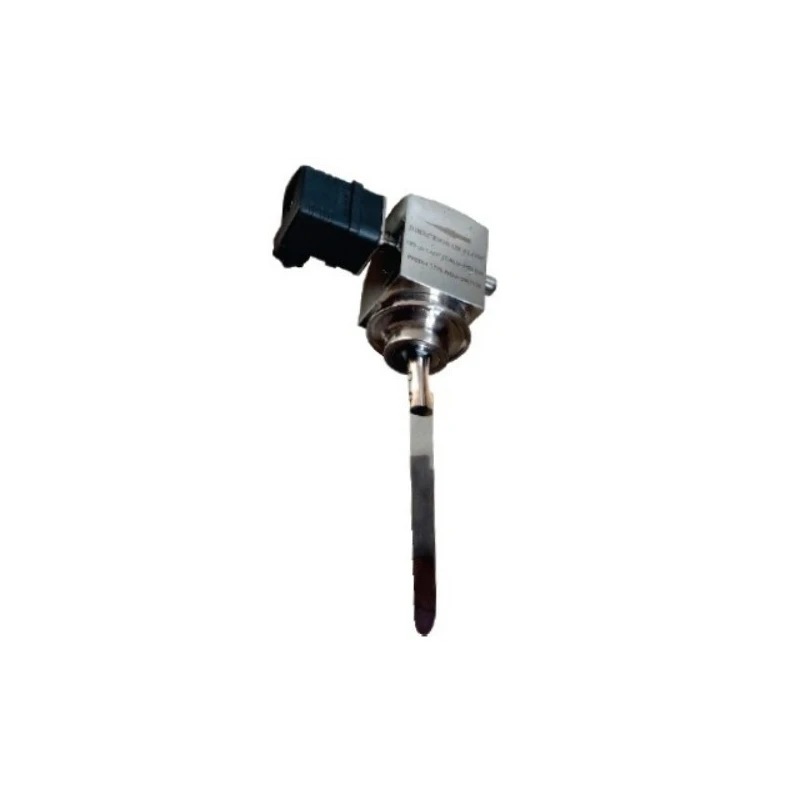

Paddle Flow Switch SS 316

Name: Paddle Flow Switch SS 316
Brand: ESPL
SKU: AAHTJ
Price: 60.85 USD
Availability: InStock



SKU AAHTJ Category Float Switches Brand ESPL Condition New

Specifications

Brand	Mahalaxmi Instruments
Material	SS 316
Enclosure	DIN 43650 Plug and Socket type connector - IP 65
Operating Pressure	15 kg/cm2 Max
Switch Type	SPDT (Change over) Reed Switch
Process connection	Threaded - 1 BSPT (M) - Standard
Maximum Operating Temperature	200C
Switch Rating	60VA or 0.5 Amps at 230VAC
Maximum Switching Voltage (V)	230 VAC
Paddle	22mm Dia X 110mm long
Maximum Carry Current	3 AMPs

Key Features

Bulk Quantities Available

Product Description

Paddle Flow SwitchA Paddle type flow switch is used to detect flow or no flow in a horizontal / vertical pipe line. Their electrical signals can be used to generate an Alarm, safe guard a pump from dry run, shower systems, central heating systems, air conditioning / ventilation units & also digital outputs to a PLC or electronic control units.The flow of liquid in the pipeline forces the paddle to m ove in the direction of the flow. The flow required (LPM or LPH) to actuate the paddle depends on the line size. A magnet attached to the top of the paddle operates a reed switch, hence giving a potential free output.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating temperature for this model is 200°C.

It utilizes an SPDT (Change over) Reed Switch for its operation.

This unit is constructed from SS 316 material.

The maximum operating pressure is 15 kg/cm².

The paddle measures 22mm in diameter and is 110mm long.

It features a threaded process connection of 1 BSPT (M) - Standard.

The maximum switching voltage is 230 VAC.

The switch rating is 60VA or 0.5 Amps at 230VAC.

The maximum carry current is 3 AMPs.

It has a DIN 43650 Plug and Socket type connector with an IP 65 rating.

The flow of liquid in the pipeline moves the paddle, which operates a magnet that activates the reed switch, providing a potential free output.

It can be used in applications such as alarm generation, pump safeguarding from dry run, and in shower systems, central heating systems, and air conditioning units.
