Float Board Level Indicator

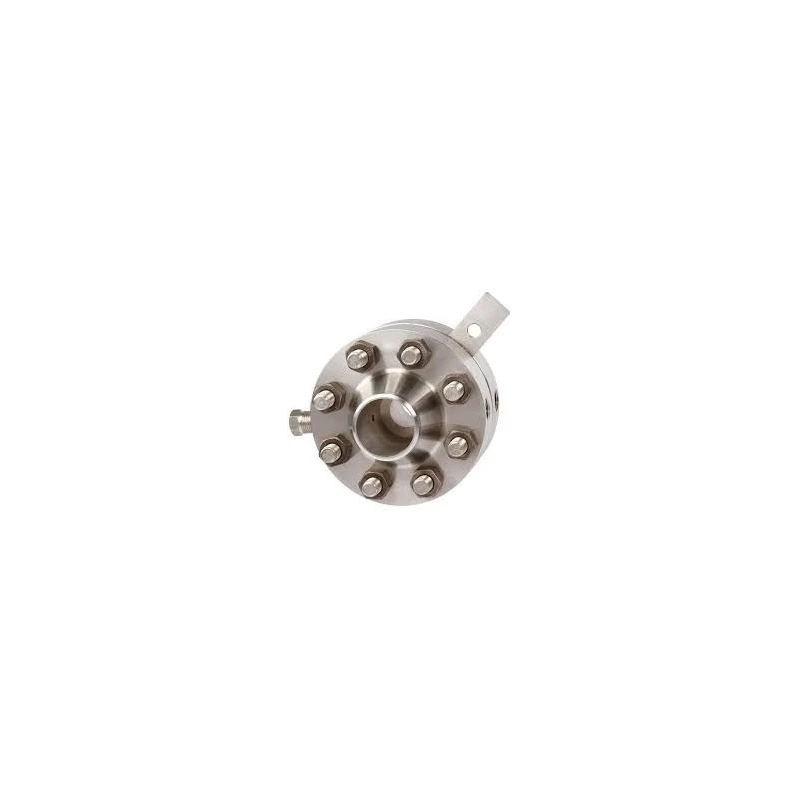

Orifice Plate Flow measurement system:ORIFICE FLANGE ASSEMBLIES are used for measuring the flow of various Liquids, Gases Steam Suitable for creating differential pressure in a pipe line for flow transmitter, etc. Orifice flange assemblies consist of weld neck-type flanges with studs, nuts, and gaskets.Available in SS-316/P.P.Material. Design standard confirms to BS 1042 1 to 24 line sizes.It gives an acceptable level of uncertainties at the lowest cost and long life without regular maintenance.Orifice Plates are most commonly used as the primary element for flow measurement in pipelines based upon the principle of measurement of Differential Pressure created when an obstruction is placed in the fluid flow, due to an increase in fluid velocity.DESIGN - Confirming to ISA RP 3.2, DN 1952, BS 1042, ISO-5167ORIFICE BORE - Confirming to ISO 5167ACCURACY - Within /- 1 %VENT / DRAIN - Vent OR Drain holes are provided as per the customers requirement.Not drilled for Orifice Bore smaller than 25.4 mmDesign Standards
