SKF Double Row Angular Contact Ball Bearing 30 mm Inside Diameter 72 mm Outside Diameter 30.2 mm Race 3306 A-2RS1TN9/C3MT33

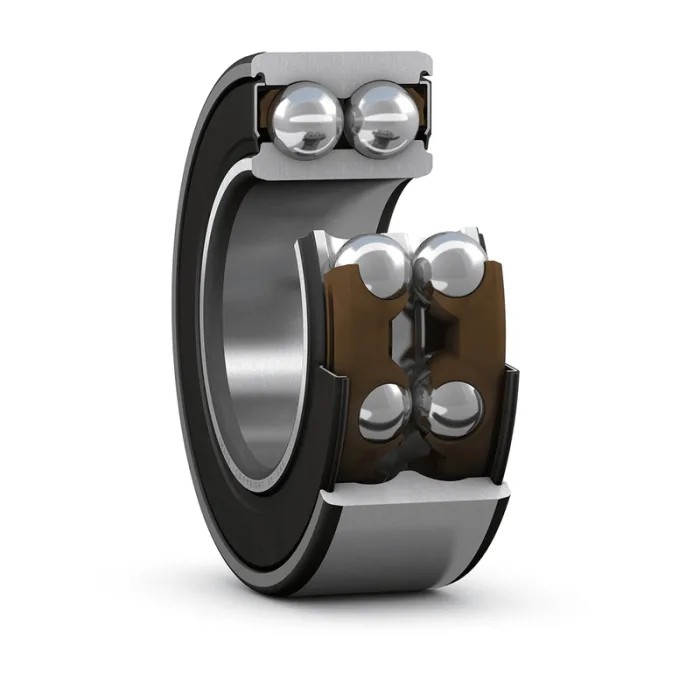

SKF 3306 A-2RS1TN9/C3MT33 is a high-quality double row angular contact ball bearing featuring a 30 mm inside diameter, 72 mm outside diameter, and 30.2 mm race width. The bearing’s inner and outer ring raceways are displaced relative to each other along the bearing axis, facilitating the accommodation of combined radial and axial loads simultaneously.

The bearing incorporates a non-metallic cage and steel balls for robust mechanical performance and durability. Sealed end type protects the bearing internals from contaminants and contributes to extended service life, especially in demanding industrial environments.

With a contact angle of 30 degrees, this bearing offers increased axial load carrying capacity. The internal clearance rating of C3 ensures that the bearing operates efficiently under various thermal and load conditions. It is designed as a 3 Medium series bearing with a parallel bore type suited for cylindrical shafts.

The SKF 3306 A-2RS1TN9/C3MT33 bearing provides a static load rating of 30 kN and a dynamic load rating of 42.5 kN, enabling it to withstand heavy operational stresses. Its limiting speed is rated at 6300 rpm, making it suitable for various industrial, manufacturing, and mechanical assembly applications where robust rotary bearing performance is required.

This ball bearing is manufactured in Austria, ensuring high-quality standards and reliability. Non-metallic cage material for enhanced durability. Steel balls for high strength and wear resistance. Sealed end design for contamination protection.

Contact angle of 30 degrees for combined load capacity. Internal clearance of C3 for performance stability. Static load rating of 30 kN and dynamic load rating of 42.5 kN. Limiting speed of 6300 rpm suitable for industrial use.

Parallel bore type for cylindrical shafts. 3 Medium series compliance for industrial standards. Manufactured in Austria for quality assurance.

This SKF double row angular contact ball bearing is ideal for use in industrial machinery, manufacturing equipment, HVAC systems, automotive applications, and other demanding mechanical systems requiring reliable combined radial and axial load handling capability. Explore more SKF Ball Bearings and rotary bearing solutions on EnvMart for diverse industrial requirements.
