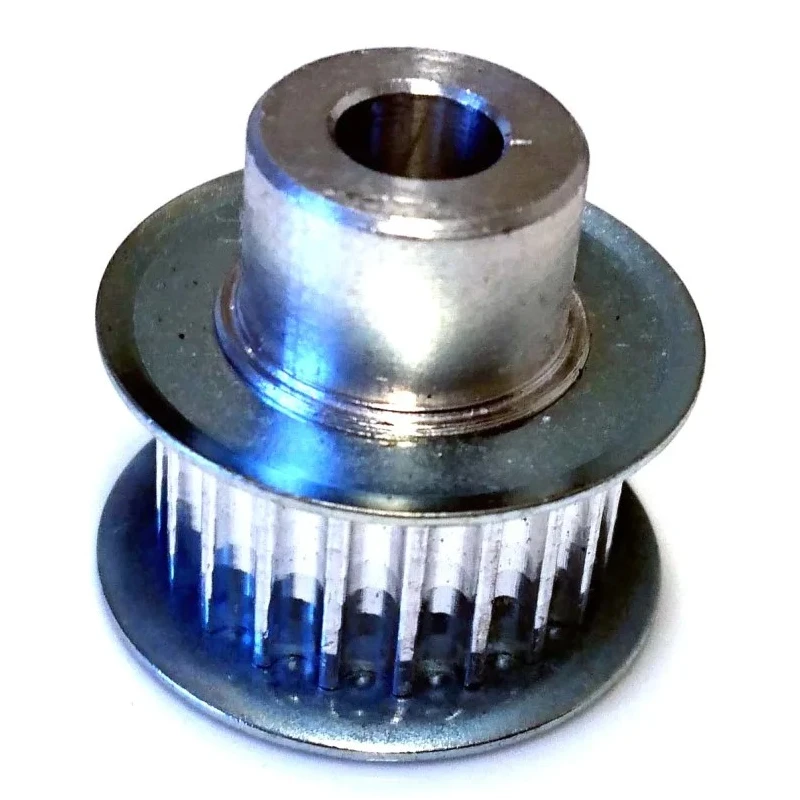

RS PRO Aluminium Timing Belt Pulley 16 Tooth, 9 mm Belt Width, 3 mm Pitch, Bore Diameter 4 mm P16-3M-09F

RS PRO P16-3M-09F Aluminium Timing Belt Pulley is engineered for reliable mechanical power transmission in industrial environments. This timing pulley features 16 teeth and a 3 mm pitch, enabling precise synchronous belt drive applications. Constructed from lightweight aluminium, it combines strength with corrosion resistance, ideal for a wide range of manufacturing and automation equipment.

The pulley supports an acceptable belt width of 9 mm and includes a flange to maintain belt alignment and prevent slippage during high torque operation. The bore diameter is 4 mm, allowing for secure mounting on shafts of compatible size. Its pitch circle diameter of 15.28 mm and flange diameter of 17.5 mm ensure effective load distribution and smooth belt engagement.

This pulley is part of an extensive range of High Torque Drive (HTD) timing pulleys available in both pilot bore and taper lock bush types. It supports HTD, CXP, and CXA belts, making it a versatile component suitable for mechanical power transmission systems in sectors such as manufacturing, automation, material handling, and fluid power.

The use of aluminium results in a lightweight design, reducing inertia and contributing to energy-efficient performance in mechanical systems. The product is manufactured in China and adheres to industry standards for reliability and durability.

Constructed from durable aluminium providing lightweight strength. Compatible with timing belts featuring a 3 mm pitch. Features a bore diameter of 4 mm for secure mounting. Includes a flange ensuring belt alignment and stability.

Pitch circle diameter measures 15.28 mm for precise engagement. Outside diameter is 14.52 mm, suitable for compact mechanical assemblies. Flange diameter of 17.5 mm for added belt retention. Designed for use with HTD, CXP, and CXA belts in industrial power transmission.

Ideal for use in industrial, manufacturing, material handling, and automation applications requiring precise timing pulley solutions. This product is backed by RS PRO's quality assurance and extensive engineering expertise, delivering dependable performance for your mechanical power transmission needs.
