Wurth Elektronik 2.4 V Yellow LED PLCC 4 Surface WL-SMTD 150141YS63130

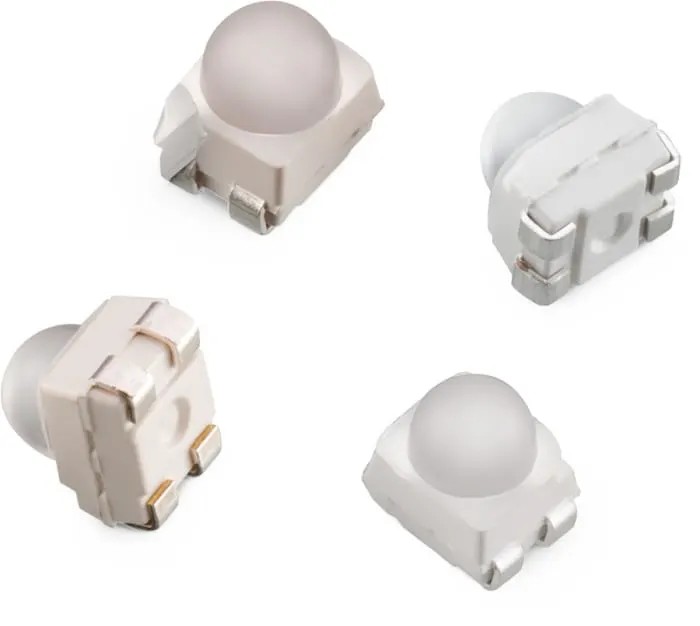

Wurth Elektronik 150141YS63130 is a high-reliability, diffused dome LED emitter delivering yellow light at 2.4 V forward voltage in a standard PLCC-4 surface mount package.

Using AllnGaP chip technology, this LED provides excellent optical efficiency with a focused 30° viewing angle and a luminous intensity of 15,000 mcd. The dome-shaped diffused yellow lens, sized 3.5 x 2.8 x 3.5 mm, ensures uniform light distribution.

Designed for industrial applications, it operates efficiently up to a maximum forward current of 70 mA with a power dissipation of 196 mW. The LED is IR soldering compatible and functions reliably within temperatures of -40 °C to +100 °C.

Compliant with RoHS, IEC 61249-2-21, REACH, and IEC-62471, it meets stringent international standards for safety and environmental sustainability.

The 150141YS63130 LED is ideal for use in traffic light systems, backlighting for displays, automotive central console illumination, cabin or push button indicators, as well as navigation and audio system indicators, fulfilling diverse industrial, automotive, and commercial lighting needs.

This LED features a maximum forward current of 70 mA for reliable performance. The viewing angle is 30 degrees ensuring focused light emission. Its compact lens dimensions measure 3.5 x 2.8 x 3.5 mm with a dome-shaped diffused yellow lens.

It has a maximum power dissipation of 196 mW optimized for surface mounting. The LED delivers a luminosity of 15,000 mcd with a dominant wavelength of 590 nm. Compatible with IR soldering processes and operates within -40 to +100 °C.

This product complies with RoHS, IEC 61249-2-21, REACH, and IEC-62471 standards. Suitable for applications including traffic lights, backlighting, central consoles, cabin or push buttons, navigation, and audio systems. Explore the full range of Wurth Elektronik LEDs and other electronic components available at EnvMart for reliable industrial and commercial lighting solutions.
