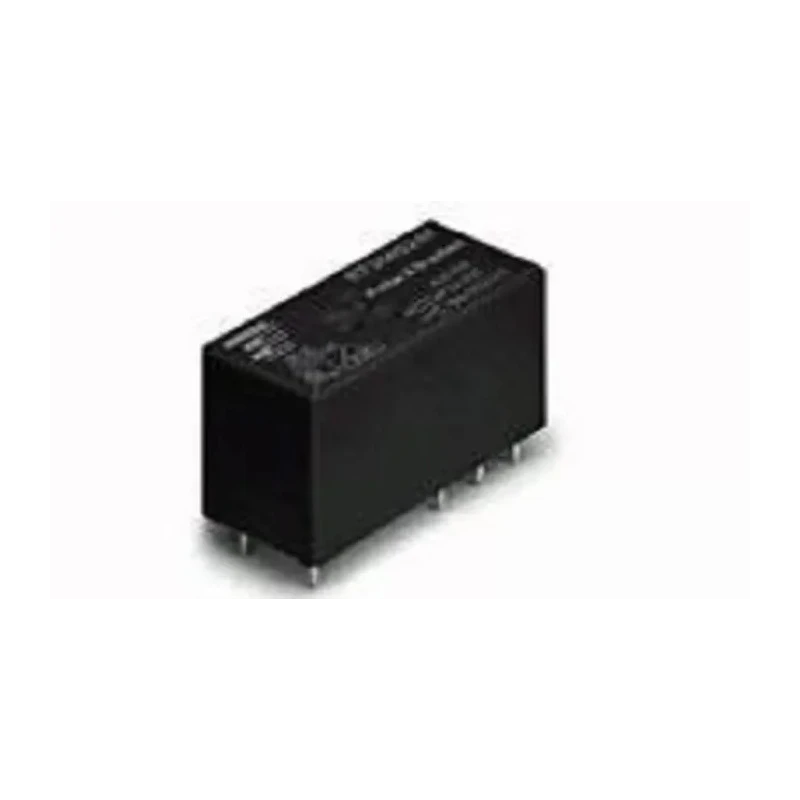

TE Connectivity PCB Monostable Relay 12V DC Coil 8A Switching Current DPDT 3-1393237-1
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20mm |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS, UL |
| Coil Resistance | 100Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- Designed for PCB mounting with solder terminals for reliable connections.
- Supports switching of up to 250V AC and 30V DC voltage loads.
- Operates effectively between -40°C to 85°C operating temperature range.
- Features silver alloy contact material ensuring low contact resistance of 50mΩ.
- Coil resistance is 100Ω with a coil power rating of 400mW for efficient operation.
- Complies with RoHS and UL standards for safety and environmental compliance.
Product Description
TE Connectivity 3-1393237-1 PCB Monostable Relay is engineered for precise and reliable switching in industrial and electronic control circuits. Its 12V DC coil ensures stable operation while its DPDT (Double Pole Double Throw) contact configuration provides flexibility for diverse applications.
This relay supports switching currents up to 8 amps, suitable for controlling moderate loads in electronic devices, automation systems, and control panels. It accommodates voltages up to 250V AC and 30V DC, making it versatile across AC and DC circuits.
The relay is designed to mount directly onto printed circuit boards (PCB) with solder terminal connections for secure and lasting installation. Its compact size (20x10x15mm) allows integration into space-limited setups.
Operating reliably in harsh conditions from -40°C to 85°C, it is well-suited for industrial environments. The silver alloy contacts reduce contact resistance to 50mΩ, enhancing performance and durability. The coil has a resistance of 100Ω and consumes 400mW, reflecting efficient power usage.
Compliant with RoHS and UL standards, this relay ensures adherence to industry safety and environmental norms. Originating from Austria, it delivers premium build quality and reliable performance for automation, industrial controls, and electrical systems.
Designed for PCB mounting with solder terminals for reliable connections. Supports switching of up to 250V AC and 30V DC voltage loads. Operates effectively between -40°C to 85°C operating temperature range. Features silver alloy contact material ensuring low contact resistance of 50mΩ.
Coil resistance is 100Ω with a coil power rating of 400mW for efficient operation. Compact dimensions: 20mm length, 10mm width, and 15mm height. Complies with RoHS and UL standards for safety and environmental compliance.
Ideal for industrial automation, electrical control applications, power management, and signal relay needs, TE Connectivity's 3-1393237-1 relay is a reliable choice for professionals demanding quality and performance in their electronic systems. Explore a wide range of TE Connectivity relays and power management components with EnvMart for your industrial and laboratory requirements.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum switching current of 8A, making it suitable for controlling moderate loads in various applications.
The coil voltage for this relay is 12V DC, ensuring stable operation in electronic control circuits.
The relay has compact dimensions of 20mm in length, 10mm in width, and 15mm in height, allowing for integration into space-limited setups.
It features a DPDT (Double Pole Double Throw) contact configuration, providing flexibility for diverse applications.
This relay operates effectively within a temperature range of -40°C to 85°C, making it suitable for harsh industrial environments.
It is designed for PCB mounting with solder terminals, ensuring reliable connections during installation.
The contact material is silver alloy, which helps to ensure low contact resistance of 50mΩ for enhanced performance.
This relay supports switching voltages of up to 250V AC and 30V DC, making it versatile for various electrical circuits.
The coil resistance is 100Ω, which contributes to its efficient operation with a power rating of 400mW.
Yes, it complies with RoHS and UL standards, ensuring adherence to safety and environmental regulations.
The contact resistance is rated at 50mΩ, which aids in maintaining efficient electrical performance.
This relay originates from Austria, reflecting its build quality and reliability in performance.
