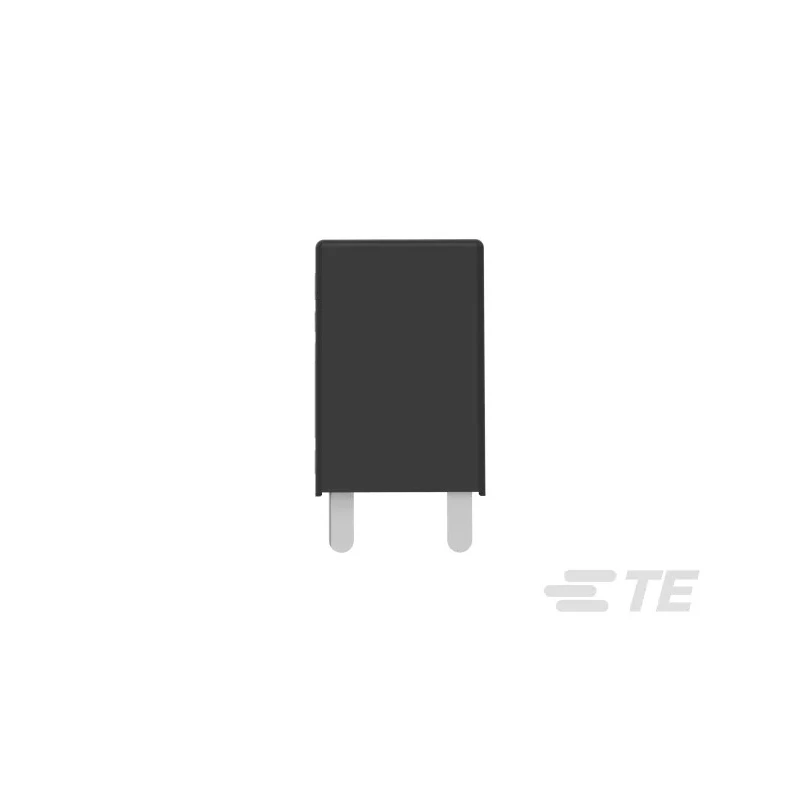

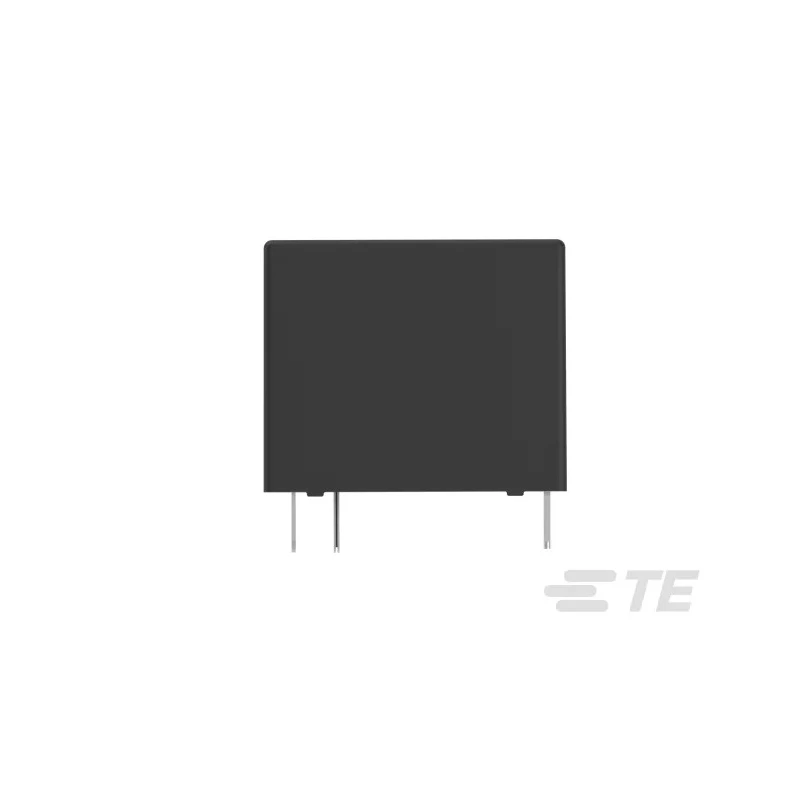

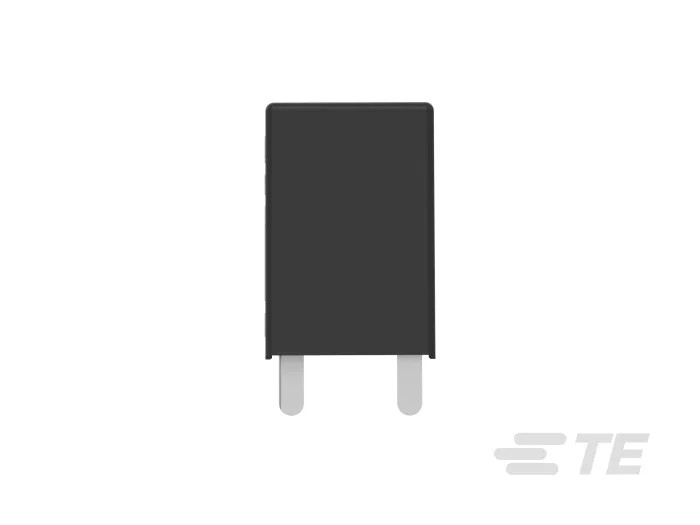

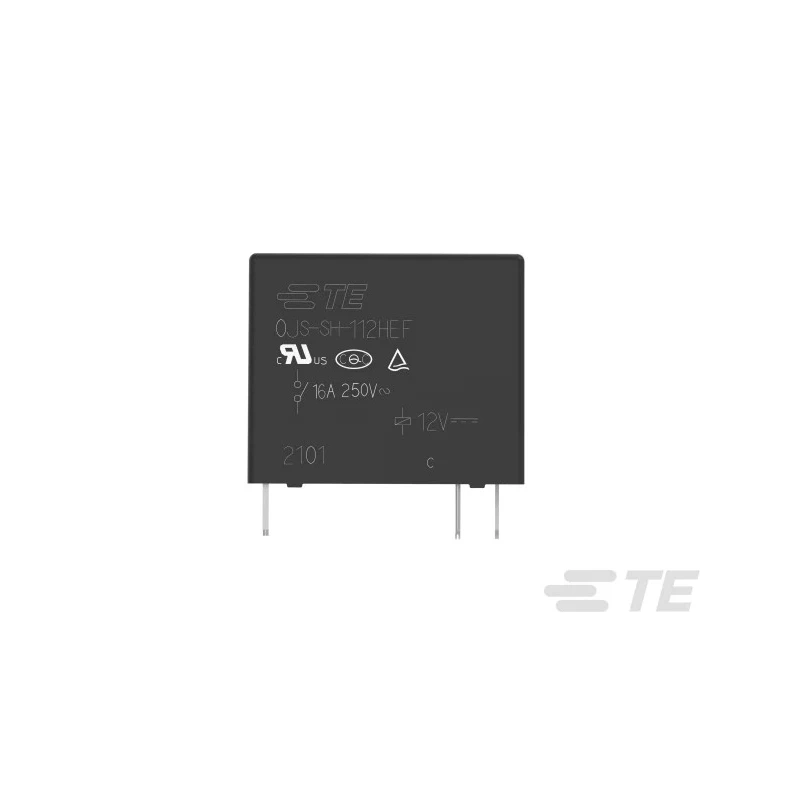

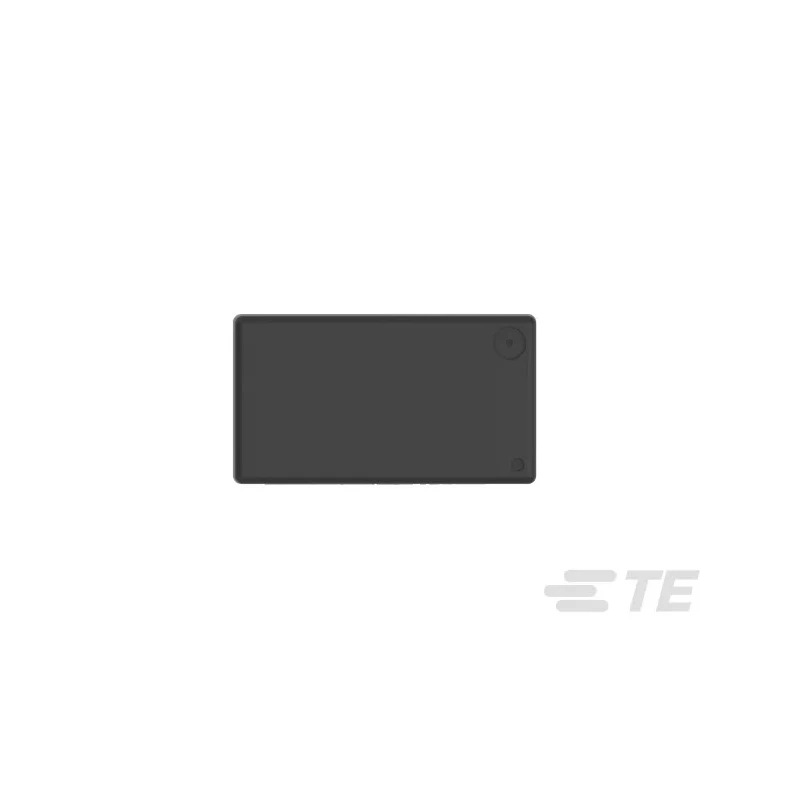

TE Connectivity PCB Relay, 12V dc Coil, 16A Switching Current, SPST 2071556-3

TE Connectivity 2071556-3 PCB Relay is a high-performance power relay designed to efficiently control electrical power flow on printed circuit boards. With a 12V dc coil and a robust 16A switching current capability in a single-pole single-throw (SPST) configuration, it is optimized for demanding industrial and automation applications.

This relay’s compact form factor (18.2mm x 10.2mm x 14.8mm) allows seamless integration into production lines, robotics assemblies, elevators, CNC machines, and HVAC control units. It features a coil resistance of 320Ω and consumes only 450mW coil power, improving energy efficiency during operation.

Constructed with Silver Tin Oxide contacts, the relay ensures longevity and consistent switching performance. It operates reliably within a temperature range from -30°C up to 85°C, adapting to various industrial and environmental conditions. The relay supports AC switching at voltages up to 250V ac, with a switching power rating of 450mW.

This model complies with RoHS, REACH, and IEC 62368-1 standards for safety and environmental impact. It is suitable for a wide range of use cases including industrial automation, manufacturing control panels, motion control systems, robotics, building systems, solar installations, and critical safety applications requiring precise electrical switching.

This relay features a coil power consumption of 450mW ensuring efficient operation. The compact dimensions of 18.2mm length, 10.2mm width, and 14.8mm height suit space-constrained PCB applications. Contact material comprises Silver Tin Oxide for reliable switching performance.

Operating temperature range from -30°C to 85°C allows usage in a variety of industrial environments. Coil resistance is rated at 320Ω, matching coil voltage specifications. Supports a maximum AC switching voltage of 250V ac and switching power of 450mW.

RoHS, REACH, and IEC 62368-1 compliant, ensuring environmental and safety standards adherence. Ideal for automation, control panels, robotics, CNC machines, HVAC, and safety-critical electrical systems.

This power relay is a trusted component in industrial and commercial electronics, enabling robust, precise control in electrical systems. Explore EnvMart’s range of high-quality relays and connectors for your next project or production requirement.
