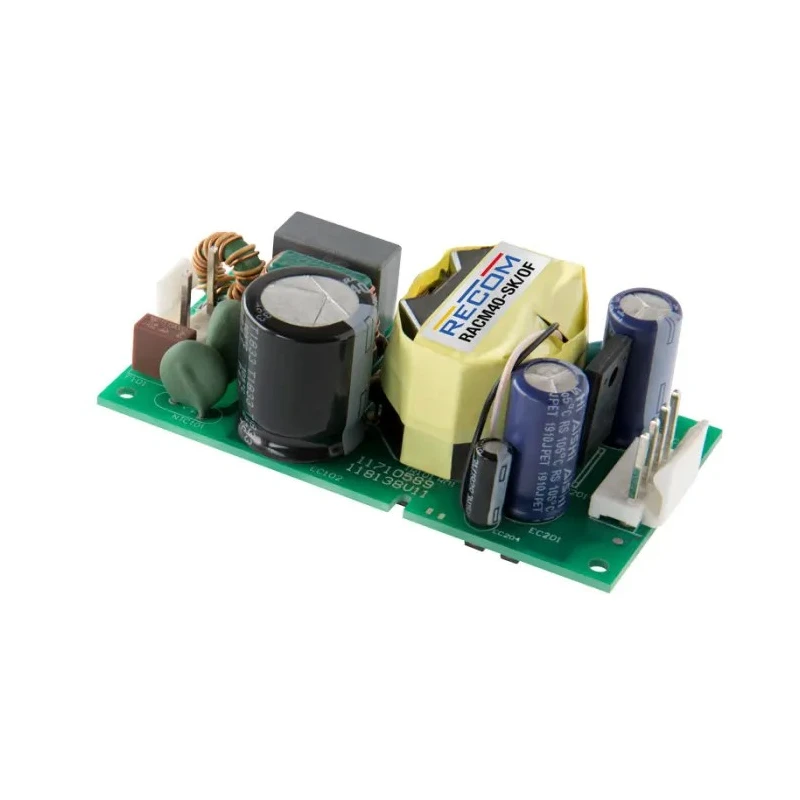

Recom Switching Power Supply 15V DC 40W, Chassis Mount, Universal AC Input RACM40-15SK/OF/PCB-T

Free Delivery in India | Lowest Global Shipping Charges

Recom Switching Power Supply 15V DC 40W, Chassis Mount, Universal AC Input RACM40-15SK/OF/PCB-T

Name: Recom Switching Power Supply 15V DC 40W, Chassis Mount, Universal AC Input RACM40-15SK/OF/PCB-T
Brand: Recom
SKU: 422586
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Recom Condition New

Specifications

Country of Origin	China
Brand	Recom
Power	40W
Efficiency	90%
Length	78.3mm
Model	RACM40-15SK/OF/PCB-T
Gross Weight	74g
Width	40.6mm
Mount Type	Chassis
Series	RACM40
Output Current	2.667A
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	15V dc
SMPS Output Current	2.67A
Minimum Input Voltage	80V ac

Key Features

Compact, ultra-compact PCB T chassis mount design ensuring versatility.
Operates efficiently from -40°C to +60°C with natural convection cooling.
Universal AC input voltage from 80V to 264V AC.
Output current capability of 2.667 amps with 15V DC maximum output voltage.
High efficiency of 90% to minimize energy losses.
Compliance with multiple international safety and EMC standards including RoHS.
Reinforced isolation of 4 kVac at 1 minute for enhanced safety.
Lightweight 74g module with compact dimensions 78.3mm x 40.6mm.

Product Description

Recom RACM40-15SK/OF/PCB-T is an industrial-grade switching power supply designed for high reliability in demanding applications such as medical devices, industrial machinery, and household equipment. It provides a stable 15V DC output power of 40 watts suitable for single-output power requirements.

The unit supports a broad universal AC input voltage range from 80V AC to 264V AC, enabling global compatibility. It operates efficiently with a 90% conversion efficiency and can function in ambient temperatures from -40°C to +60°C with natural air convection cooling, extendable to +85°C when derated or with forced air cooling.

This chassis-mount power supply features reinforced 4 kVac isolation for safety and includes a Class B EMC filter for compliance with electromagnetic compatibility standards. Compactly designed at 78.3mm length and 40.6mm width with a lightweight of 74 grams, it is ideal for space-constrained installations.

Its robust compliance includes international standards such as ANSI AAMI ES 60601-1 for medical safety, CAN CSA-C22.2 No.60601-1, EN 62233, EN 62368-1, IEC 60335-1, IEC 60601-1, IEC 61010-1, IEC61558-1, IEC 61558-2-16, and RoHS directives ensuring safe, reliable and environmentally conscious operation.

Compact chassis mount with universal input facilitating wide application scope. Medical and industrial-grade compliance ensures safe integration in critical environments. Wide temperature range suitable for harsh environmental conditions.

High efficiency minimizes heat generation and power loss. Built-in EMC filtering supports noise-sensitive installations. Reinforced isolation safeguards personnel and devices.

The Recom RACM40 series is suited for industrial machines, medical instruments, HVAC systems, and commercial electronic devices requiring dependable stable DC power conversion from AC mains inputs.
