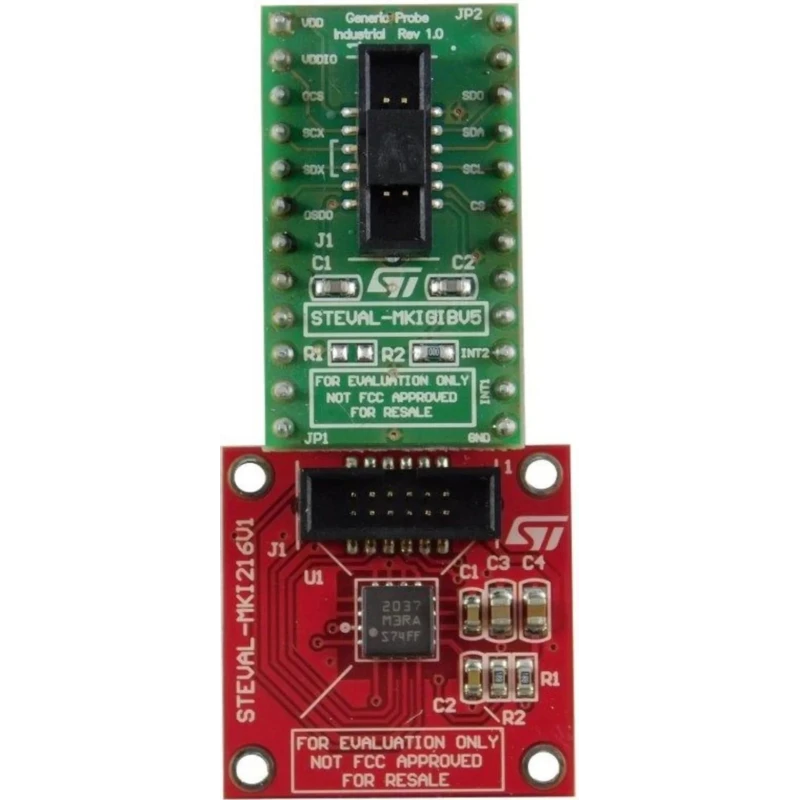

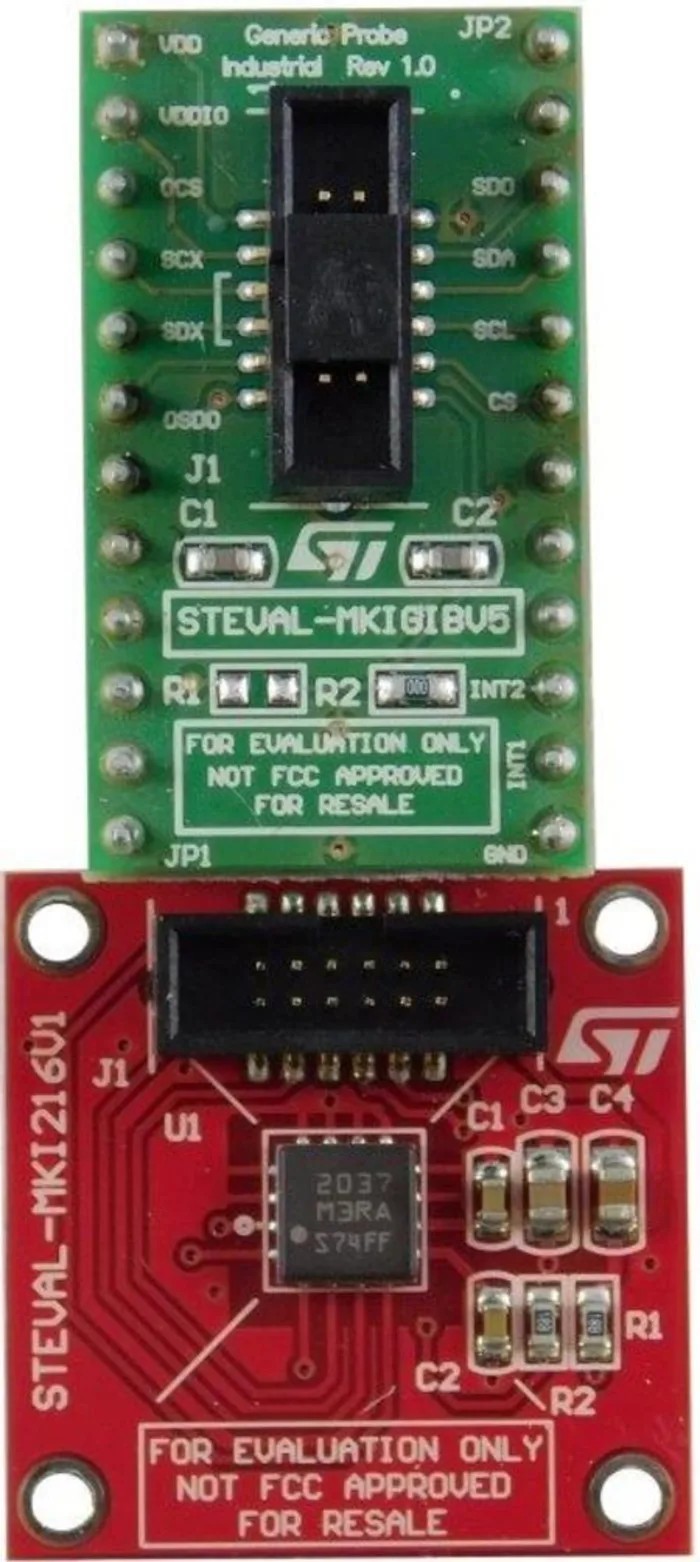

STMicroelectronics Digital Inclinometer Kit based on IIS3DHHC Evaluation Board for LIS3DHHC STEVAL-MKI216V1K

STMicroelectronics STEVAL-MKI216V1K is a user-friendly Digital Inclinometer Kit based on the IIS3DHHC evaluation board that integrates a precise 3D accelerometer sensor LIS3DHHC. This Evaluation Kit is designed for vibration analysis and robust equipment monitoring in industrial, laboratory, and development environments.

The IIS3DHHC sensor is centrally soldered on the board, which comes with double-sided adhesives for convenient mounting on the target equipment. Alternatively, installation through the PCB’s corner holes is supported for secure and versatile mounting options.

The kit includes the STEVAL-MKIGIBV5 adapter board that connects the IIS3DHHC sensor board to the STEVAL-MKI109V3 motherboard, a high-performance platform featuring a 32-bit microcontroller. This microcontroller operates as a bridge for communication between the sensor and a PC running the free Unico GUI or custom software routines, enabling detailed data analysis and integration.

The kit provides a comprehensive IIS3DHHC pinout and features necessary decoupling capacitors on the VDD power line for stable operation. The adapter board plugs into a standard DIL 24 socket, making it compatible with a wide array of development tools.

The embedded IIS3DHHC sensor provides accurate 3-axis acceleration data for inclinometer and vibration measurement applications. Compatible with STEVAL-MKI109V3 motherboard for seamless integration and high fidelity data handling.

Double-sided adhesives and mounting holes facilitate flexible and secure attachment on various equipment. Ready-to-use kit includes necessary hardware for quick deployment in sensor development and evaluation contexts. Designed to support industrial, laboratory, and educational uses for motion sensing and vibration analysis.

This product complies with RoHS standards ensuring environmental safety. The STEVAL-MKI216V1K kit is ideal for developers and engineers aiming to implement reliable inclinometer sensing solutions integrated with powerful microcontroller platforms.
