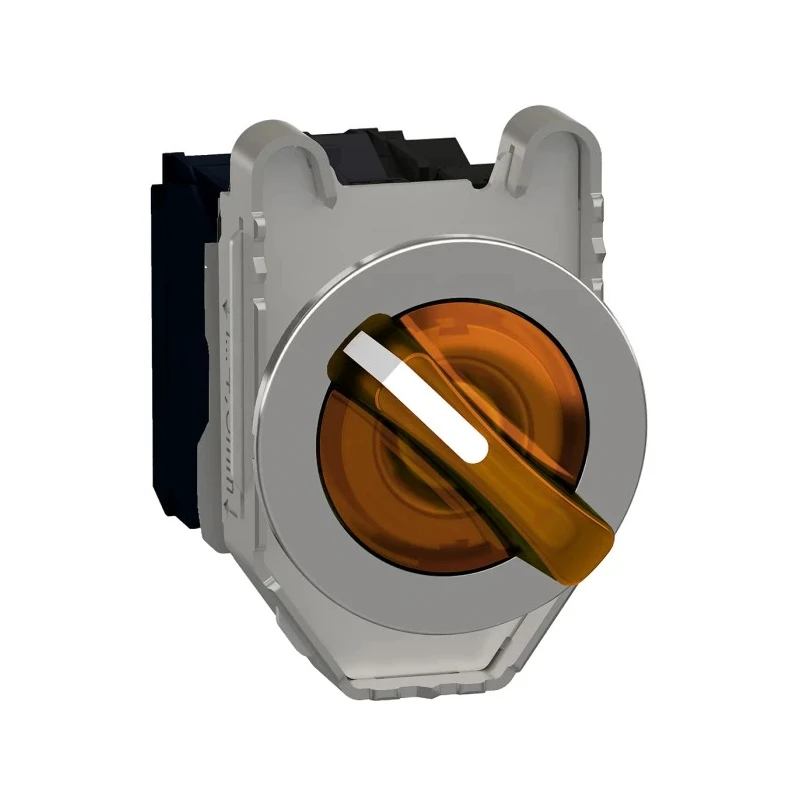

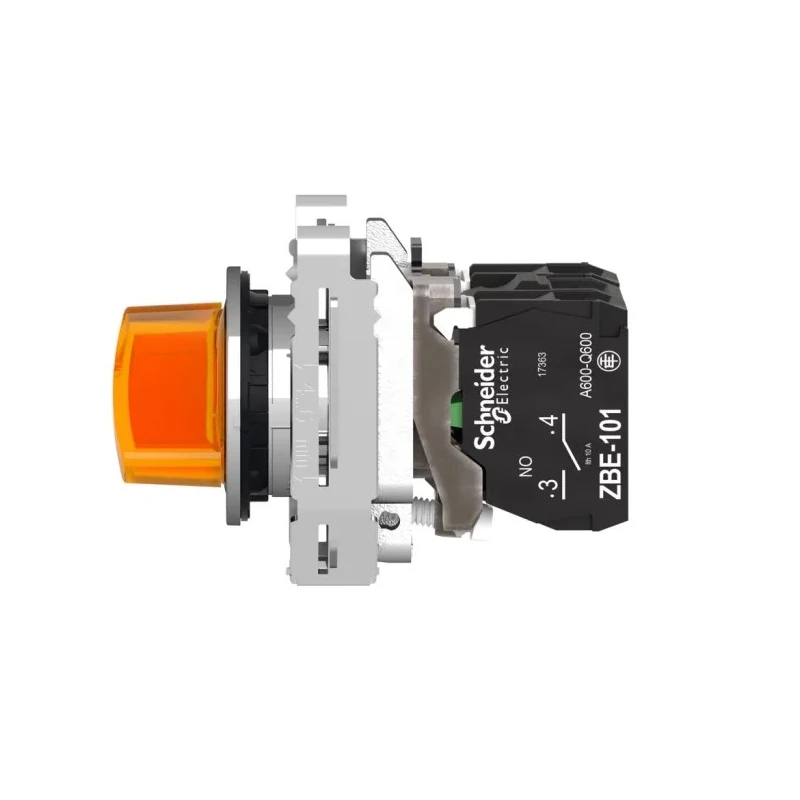

Schneider Electric Selector Switch Illuminated 2 Positions 30 mm Cutout Diameter SPDT Harmony XB4 XB4FK125B5

Schneider Electric XB4FK125B5 illuminated selector switch is part of the Harmony XB4 metallic series designed for industrial and commercial automation applications. This selector switch features a flush mounted design with a 30.5 mm mounting diameter and a universally compatible LED light source operating at 24 V AC/DC. The orange standard handle provides an ergonomic and aesthetic solution with 2 positions and a 90° stay put throw.

The contact configuration is SPDT with one normally open (NO) and one normally closed (NC) slow break contact, connected via screw clamp terminals for secure wiring. The switch's bezel is chromium plated, and the fixing collar is made of zamak, enhancing durability and resistance to environmental factors. Dimensions are 53 mm in height and 36.6 mm in width, weighing 151 grams.

Designed for robustness, this selector switch meets IP66, IP67, IP69, and IP69K ratings, offering protection against solid objects, dust, water, and high impact. It is certified under EN/IEC standards, CE marking, UL, CSA, CCC, EAC, JIS, and marine certifications, making it suitable for industrial, manufacturing, and heavy-duty outdoor environments.

The switch can be customized through Schneider Electric's web tool for markings, and a wide range of dedicated accessories such as blanking plugs, metal rings, spacers, washers, and flush mounting kits are available separately to facilitate installation.

Operating temperature ranges from -40°C to 70°C, with high vibration resistance ensured by shake-proof terminal screws and contacts designed to prevent vibration. Various types of connections are available including screw clamp, connector, Faston, spring terminal, or printed circuit board compatibility, with modular contact blocks to suit general, low current, or high power switching requirements.

This switch is ideal for demanding industrial segments such as food and beverage processing, automotive environments, mining, water treatment, building infrastructure, and other applications requiring rugged, reliable electrical controls.

The product features a universal LED light source powered at 24 V AC/DC. The switch has a 90° angle of throw with stay-put operation and a round chromium plated bezel. The switch terminals use screw clamp connection type ensuring secure wiring.

It is robust and suitable for use in demanding industrial environments with IP67 and IP69 protection ratings. Dimensions include 53 mm height, 36.6 mm width, and it weighs 151 grams. Comes with multiple approvals including UL, CSA, CE, and marine certifications.

It operates reliably within a temperature range of -40°C to 70°C and resists high vibration impacts. Modular design allows various terminal types and contact blocks to suit application needs. Explore more Schneider Electric Selector Switches and related electrical components in the Electronics & Electricals category on EnvMart for your industrial automation needs.
