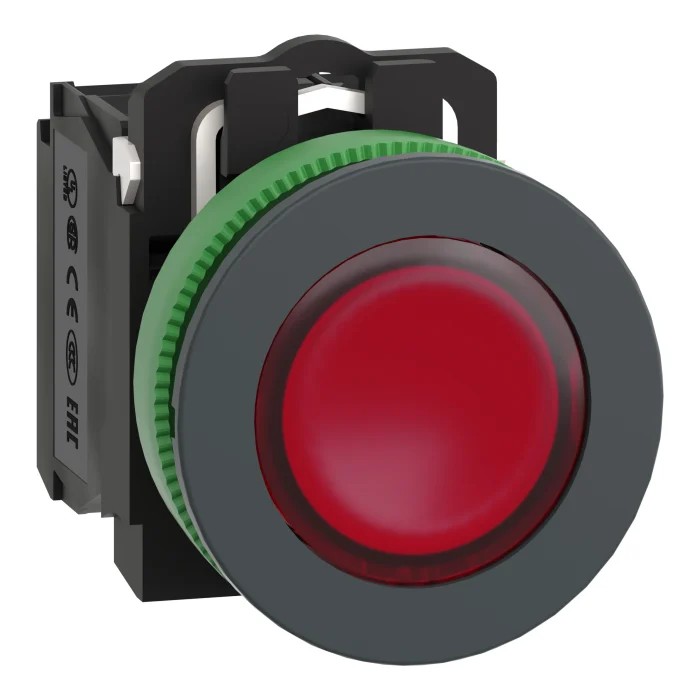

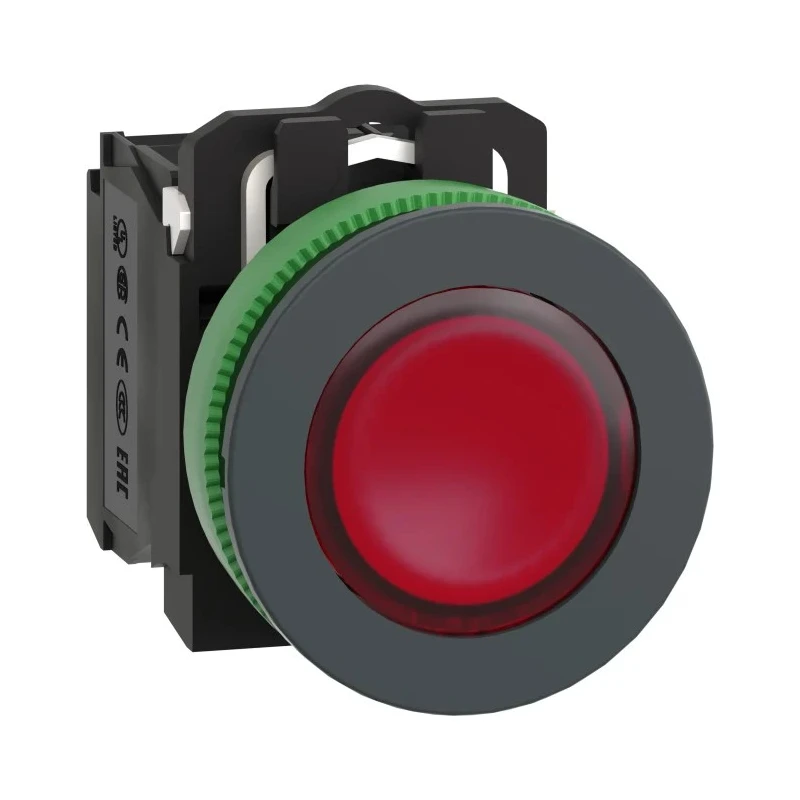

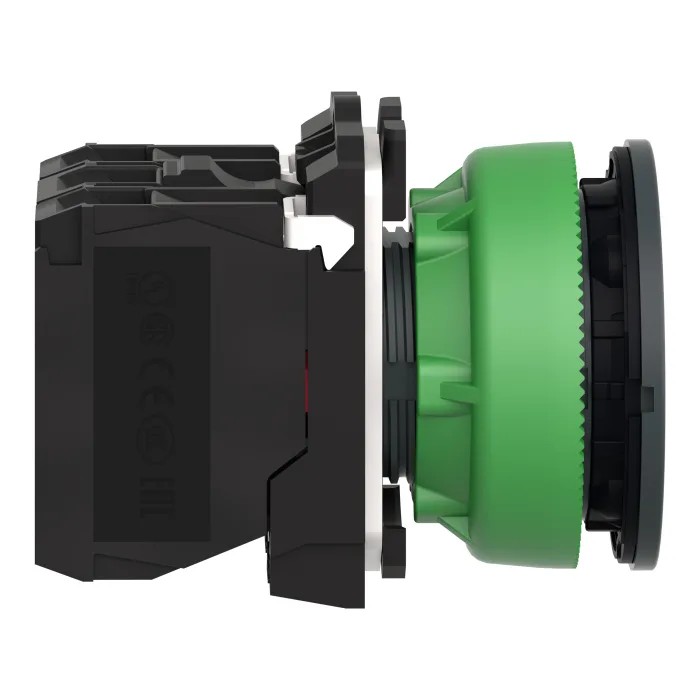

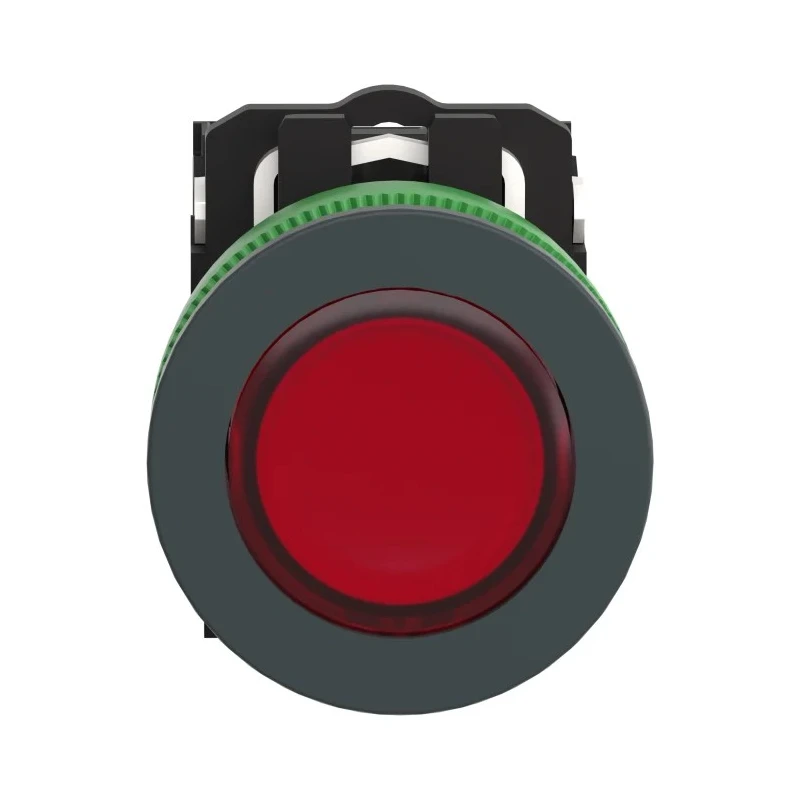

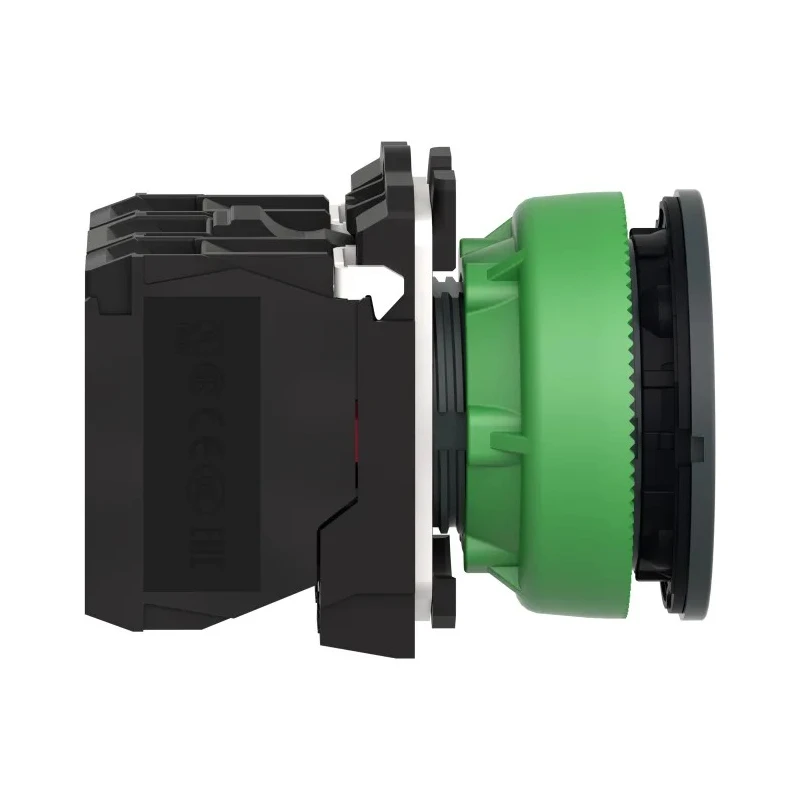

Schneider Electric Harmony Series Illuminated Push Button Switch, Spring Return, Panel Mount, 30 mm Cutout, SPDT XB5FW34B5

Schneider Electric XB5FW34B5 Harmony Series illuminated push button switch provides reliable manual control in industrial and commercial environments. This flush-mounted push button features a spring return mechanism ensuring the switch returns to its default position after actuation. The unit has a robust construction incorporating antibacterial properties and a plain lens illuminated by a universal red LED source for clear visibility.

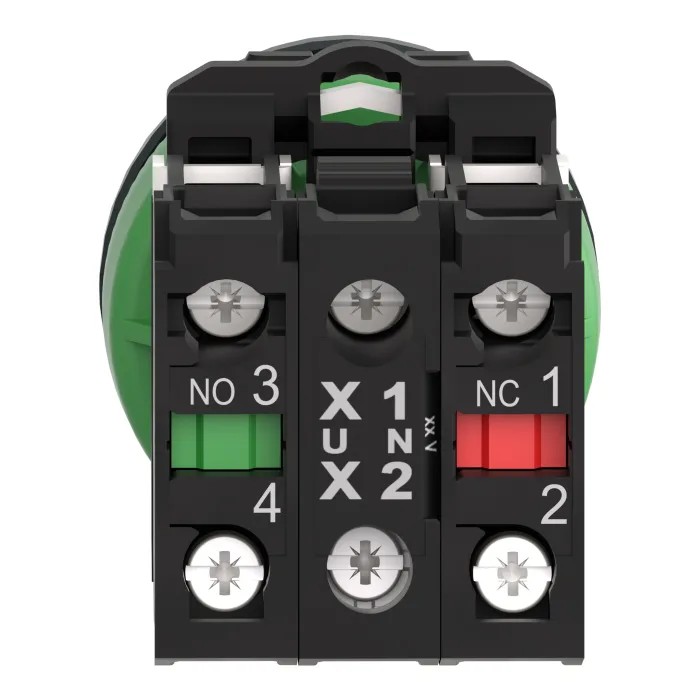

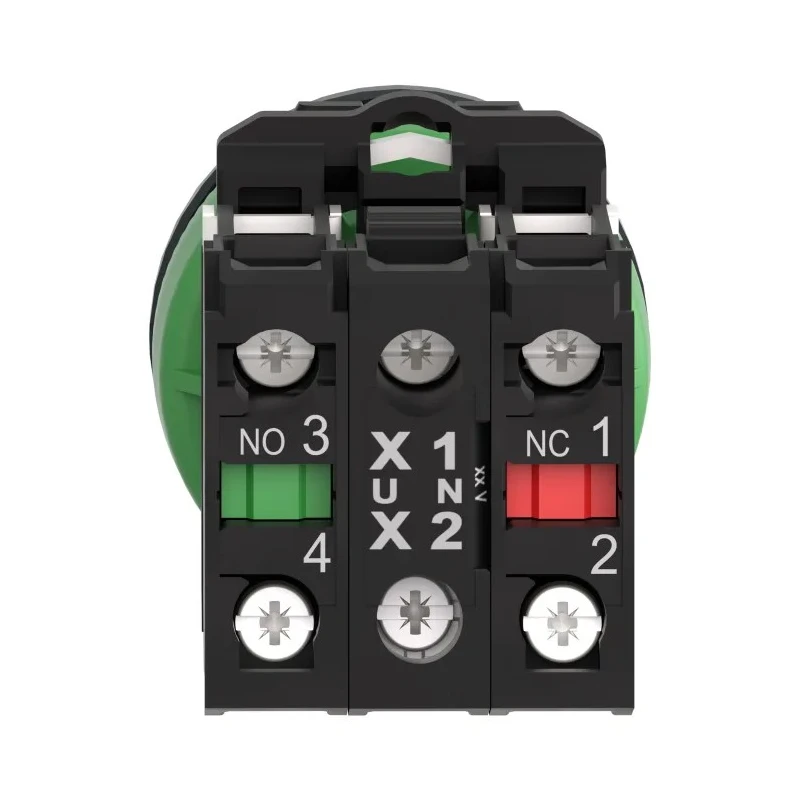

The device is designed for a panel cutout diameter of 30 mm and measures 42 mm in height and 36.6 mm in width. Its actuator is round-shaped with a red color, and the switch operates with a SPDT (1 NO/1 NC) slow break contact configuration. The terminal connection is screw clamp style, facilitating secure wiring and vibration resistance with shake-proof screws.

Equipped with IP66, IP67, IP69, and IP69K ingress protection ratings, the push button withstands solid objects, dust, water ingress, and high-pressure cleaning jets, making it suitable for harsh conditions such as in food processing plants and marine applications. The operating temperature range from -40°C to +70°C supports functionality across diverse climate zones.

This push button switch meets international standards including EN/IEC 60947-1, UL 508, CSA C22.2 No 14, JIS C8201 series, and other certifications, assuring global compliance and safety. The compact size and lightweight design (52 grams) allow easy installation into panels via standard 30.5 mm diameter cutouts using a cross head screwdriver. Accessories for customization and mounting are available separately.

The product is ideal for automation control, electrical signaling, and manual operations in industrial, manufacturing, building, infrastructure, and food & beverage applications. The presence of repairable parts enhances sustainability and lifecycle management.

This push button switch offers high chemical robustness and shock resistance for reliable performance. The round red actuator with spring return provides ergonomic and visual feedback for operators. Screw clamp terminals enable secure connections and prevent vibration-related disconnections.

IP66 to IP69K protection classes ensure durability against dust, water jets, and washdowns. Wide operating temperature range supports use in extreme environmental conditions. Compliance with multiple international standards assures safety and interoperability.

Compact size and light weight facilitate easy panel mounting and integration. Compatible with various connection types and accessory mounting kits for flexibility. Suitable for food processing, marine, building automation, and industrial manufacturing sectors.
