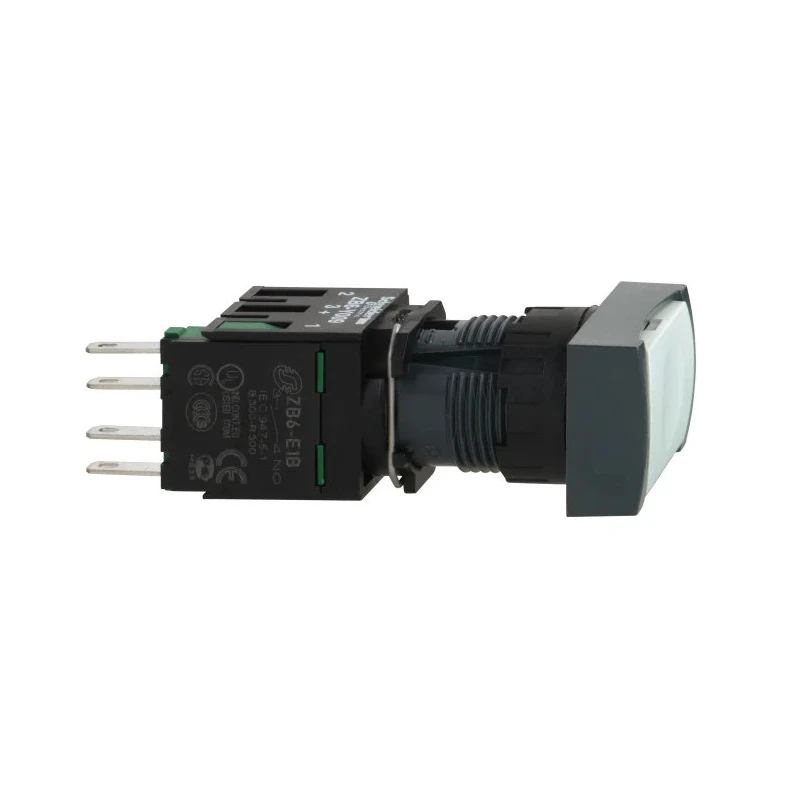

Schneider Electric Harmony XB6 Series Push Button Switch Spring Return Panel Mount 16 mm Cutout 1 NO White LED IP65 XB6DA11B

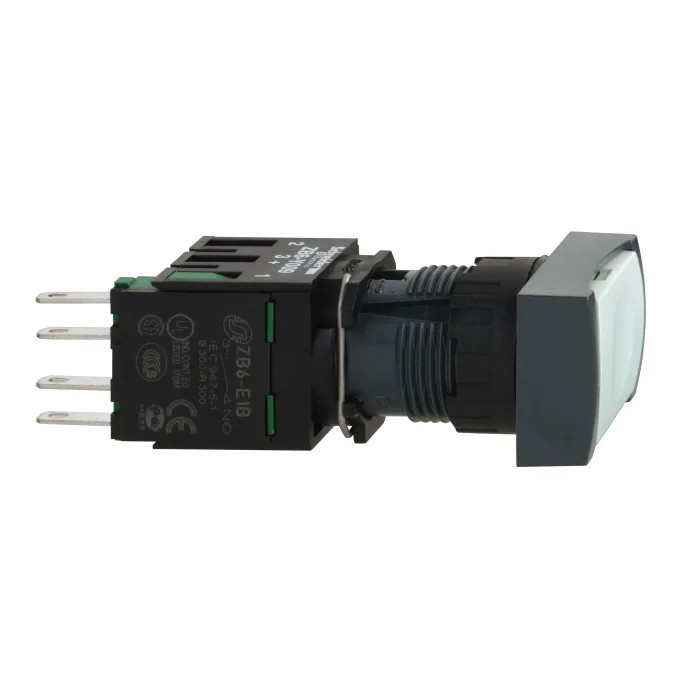

Schneider Electric XB6DA11B Harmony XB6 Series Push Button Switch features a white rectangular actuator with spring return operation, intended for panel mounting applications requiring a 16 mm cutout. It incorporates a single normally open (1 NO) contact suitable for use in electrical control circuits and automation systems. The switch includes white LED illumination for enhanced visibility and status indication.

This push button switch is rated for AC voltages up to 240V and DC voltages up to 250V, supporting diverse electrical environments with reliable contact performance. The terminal options include quick connect and solder tag types, allowing flexible connection methods.

With an IP65 ingress protection rating, it offers strong resistance against dust ingress and water jets, making it ideal for industrial, commercial, and panel-based electrical applications exposed to harsh conditions. The operating temperature range spans from -25°C to 70°C, ensuring durability in varying climates.

Dimensionally, the switch measures 57 mm in length, 24 mm in width, and 18 mm in height, facilitating easy integration into control panels. It adheres to key international standards such as EN/IEC 60947-5-1, JIS C 4520, CSA C22.2 No 14, UL 508, guaranteeing quality and safety compliance.

Features a spring return switch operation ensuring automatic reset. Operates with a rectangular white actuator and white LED illumination. Designed for panel mounting with a 16 mm cutout size. Contact configuration includes 1 normally open (1 NO) contact.

Rated for AC voltages up to 240V and DC voltages up to 250V. Quick connect and solder tag terminal types for versatile wiring. IP65 rated for dust-tight and water jet protection. Wide operating temperature range from -25°C to 70°C.

Complies with standards EN/IEC 60947-5-1, JIS C 4520, CSA C22.2 No 14, UL 508, among others. Compact dimensions: 57 mm length, 24 mm width, 18 mm height.

This Schneider Electric Harmony XB6 push button switch is ideal for use in industrial automation, electrical panel control, HVAC systems, manufacturing plants, and other electrical installations that require reliable manual control with enhanced durability and compliance with multiple international standards.
