Recom Switching Power Supply 2 Output 15V DC, 10 W, 85-305V AC Input RAC10-15DK/277

Free Delivery in India | Lowest Global Shipping Charges

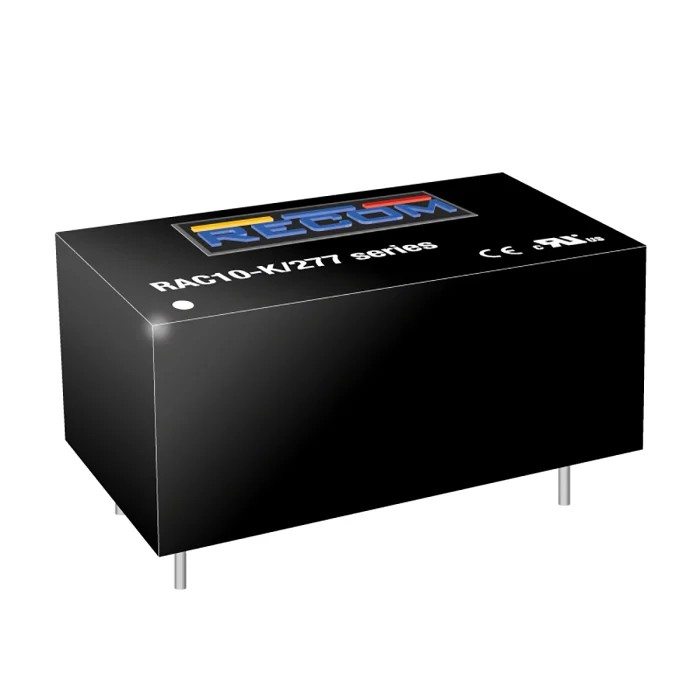

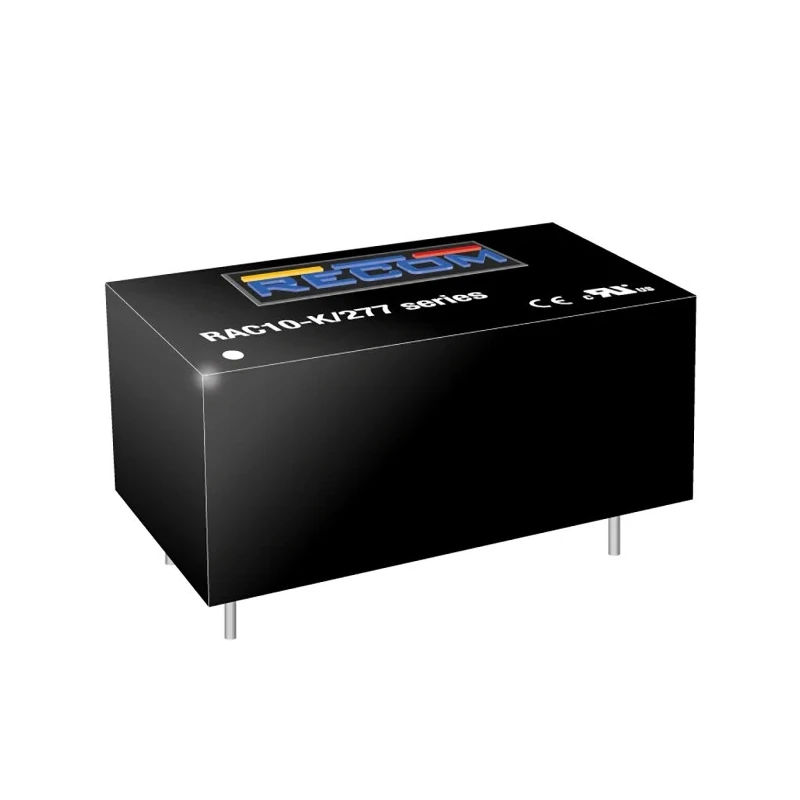

Recom Switching Power Supply 2 Output 15V DC, 10 W, 85-305V AC Input RAC10-15DK/277

Name: Recom Switching Power Supply 2 Output 15V DC, 10 W, 85-305V AC Input RAC10-15DK/277
Brand: Recom
SKU: 419657
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Recom Condition New

Specifications

Country of Origin	China
Brand	Recom
Power	10W
Efficiency	83%
Length	52.5mm
Model	RAC10-15DK/277
Depth	23mm
Gross Weight	65g
Width	27.4mm
Mount Type	PCB
Series	RAC10-K/277
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-40°C
Number of outputs	2
Maximum Input Voltage	305V ac
Maximum Output Voltage	15V dc
SMPS Output Current	340, -340mA
Minimum Input Voltage	85V ac

Key Features

Input voltage range from 85 V to 305 V AC for versatile application.
Two outputs providing ±15 V DC ideal for low-powered systems.
Compact PCB mount design measuring 52.5 mm length, 27.4 mm width, and 23 mm depth.
Operating temperature range from -40°C to 80°C suitable for industrial environments.
High 83% efficiency minimizes energy loss during operation.
Lightweight design at 65 grams reduces load on systems.
Complies with multiple standards including EN 61000 series and UL 60950-1.
Flame-retardant housing enhances workplace safety.

Product Description

Recom RAC10-15DK/277 switching power supply offers a highly efficient and compact solution for converting AC input voltage between 85 V and 305 V into 15 V DC outputs. This unit is designed with two outputs providing ±15 V DC at a power rating of 10 W, making it ideal for powering low-power devices and systems.

The robust PCB mount form factor with dimensions 52.5 mm (L) x 27.4 mm (W) x 23 mm (D) enables installation in confined spaces. Weighing only 65 grams, the power supply adds minimal strain to the system.

Its operational temperature range of -40°C to 80°C ensures suitability for demanding industrial, medical, and telecommunications applications requiring durable and stable power delivery. The housing is flame-retardant, extinguishing flames within 10 seconds to ensure workplace safety.

This switching power supply meets rigorous standards including EN 61000-4-3, CAN/CSA C22.2 No. 60950-1-07, EN 55022 Class B, EN 60950-1, UL 60950-1, and RoHS compliance, ensuring reliable, safe, and environmentally responsible operation.

Applications include medical equipment, testing and measurement devices, and telecommunications systems where stable dual output DC voltage is critical. Input voltage range from 85 V to 305 V AC. Dual outputs delivering ±15 V DC at 10 W power.

PCB mount type with compact form factor for small installation spaces. Operating temperature range from -40°C to 80°C for harsh environments. High efficiency of 83% reduces energy wastage. Low weight of 65 grams facilitates easy integration.

Flame-retardant housing supports safety standards. Complies with multiple international safety and EMC standards. Suitable for medical, telecom, and measurement industries. Stable SMPS output current of ±340 mA.

Explore Recom switching power supplies and related power solutions at EnvMart for reliable and compact power management components tailored to industrial and electronic applications.
