EAO Illuminated Momentary Push Button Switch Panel Mount 22.3 mm Cutout SPDT Red LED IP65 IP67 240V 36V AC 82-6651.1114



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	India
Brand	EAO
Length	35.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Industrial	Machinery and factory equipment
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	CO
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
LED Colour	Red
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	36V ac
Vandal-resistant	Impact resistant
Exposed public areas	e.g. ticketing and vending machines
Lifting and moving	Elevators and people movers
Building management	Access control and security systems

Key Features

The actuator is silver and round in style providing excellent tactile feedback.
Rated for 240 V DC and 36 V AC contact voltage, with a switch contact current of 3 A.
IP65 and IP67 rated for high protection against dust and water ingress.
Designed for excellent durability with a long service life exceeding 1 million cycles.
Vandal-resistant and impact-resistant construction for exposed public areas.
Operates in a temperature range of -30°C to 70°C suitable for industrial environments.
Ideal for applications including ticketing, vending machines, machinery, elevators, building access control, medical and food industry equipment.

Product Description

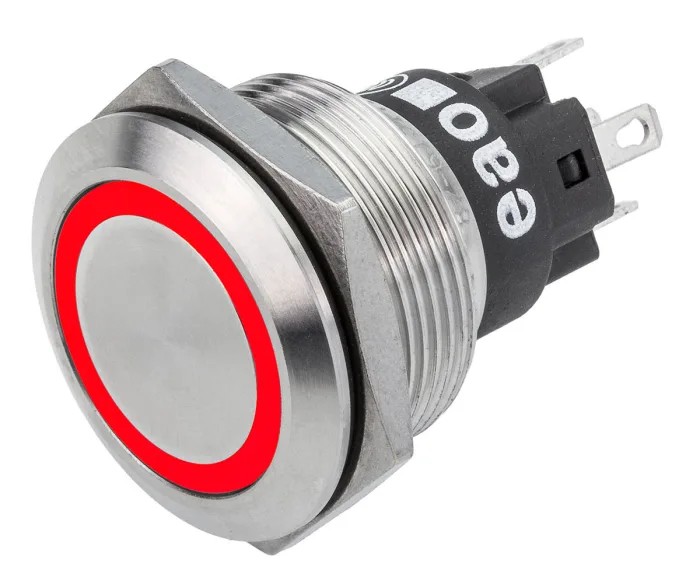

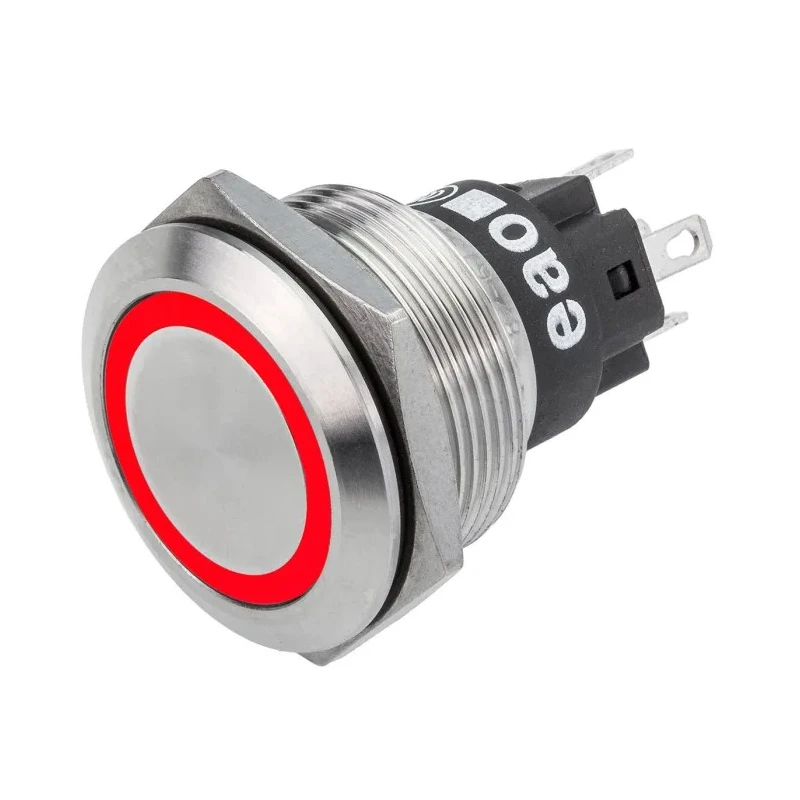

EAO 82-6651.1114 is an illuminated momentary push button switch designed for panel mounting with a precise 22.3 mm cutout. Featuring a Single Pole Double Throw (SPDT) contact configuration and a red LED for clear indication, this push button switch delivers reliable operation and tactile feedback in harsh environments.

The switch actuator is a silver round style, crafted for ergonomic use and enhanced durability. It supports contact voltages up to 240 V DC and 36 V AC with a maximum switch contact current of 3 A. It holds an IP65 and IP67 rating, ensuring resistance to dust and water ingress, making it suitable for exposed applications including outdoor public areas.

This switch is manufactured to high standards with CB, CCC, cUL, and UL approvals ensuring compliance with global safety norms. Its vandal and impact-resistant design withstands tough industrial use, achieving a service life exceeding one million switching operations.

Operating temperature ranges from -30°C to 70°C allowing deployment in diverse environments such as industrial machinery, factory equipment, elevators, and building management access control systems. Specialized corrosion-resistant versions are available for medical and food industry applications, enhancing reliability in demanding conditions.

The actuator is a silver round type providing excellent tactile feedback and ergonomic operation. Push button switch supports 240 V DC and 36 V AC with a 3 A contact current rating. IP65 and IP67 ingress protection ratings offer high durability against dust and water.

Robust vandal-resistant design suitable for exposed public and industrial environments. Compliant with CB, CCC, cUL, and UL standards ensuring quality and safety. Extended service life rated for over one million operation cycles.

Operable within -30°C to 70°C temperature range, adaptable for varied industrial and commercial uses.

This EAO push button switch is ideal for industrial control panels, public ticketing systems, vending machines, elevators, audio-video equipment, medical devices, and food processing units. It represents a durable and high-quality solution fitting a wide range of electrical control applications requiring illuminated switches with reliable momentary operation.

Explore more EAO Push Button Switches and control components in EnvMart’s comprehensive catalog to find the perfect fit for your industrial automation and electrical projects.
