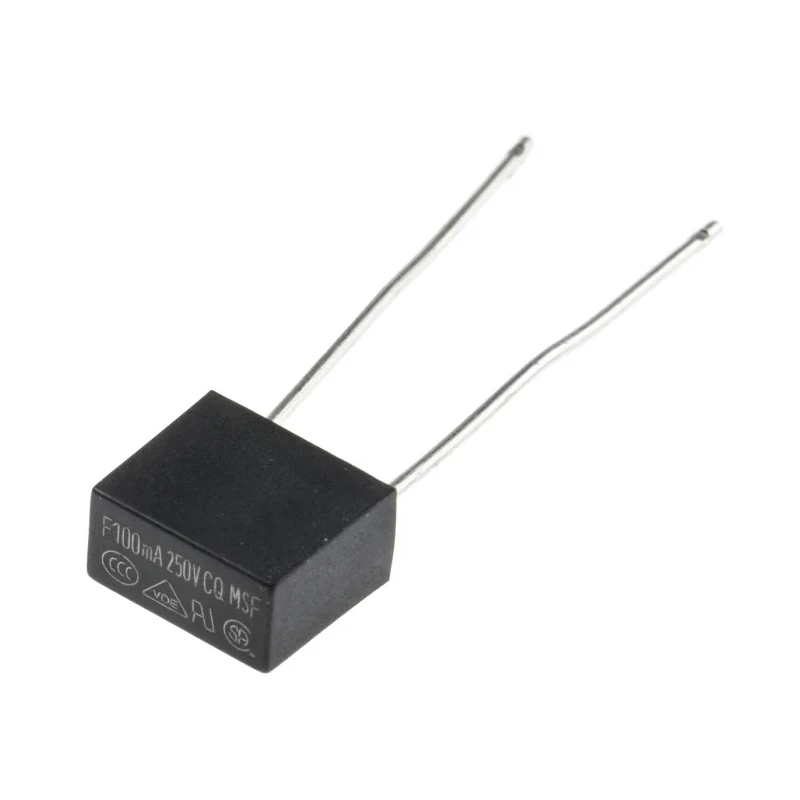

RS PRO Non-Resettable Fuse Radial 100mA 250V Fast Acting Thermoplastic Body 767-5074
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Diameter | 0.62mm |
| Brand | RS PRO |
| Body Material | Thermoplastic |
| Height | 7.7mm |
| Length | 8.35mm |
| Model | 767-5074 |
| Width | 4.3mm |
| Current Rating | 100mA |
| Series | RS PRO |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Lead Length | 22mm |
| Breaking Capacity | 35A |
| Standards/Approvals | CSA, RoHS |
| Fuse Characteristics | Fast Acting |
| Lead Orientation | Radial |
Key Features
- Current rating of 100mA for precise overcurrent protection.
- Fast acting fuse characteristics ensure rapid response to overload.
- Thermoplastic body material provides durability and electrical insulation.
- Radial lead orientation with 22mm lead length enables easy PCB mounting.
- Compact dimensions with length 8.35mm, width 4.3mm and height 7.7mm.
- Breaking capacity of 35A supports safety during fault conditions.
- Operating temperature range from -55°C up to 125°C for harsh environments.
- Conforms to CSA and RoHS standards, ensuring compliance and reliability.
Product Description
RS PRO 767-5074 Non-Resettable Fuse is a high-quality fast acting radial fuse rated at 100mA and 250V, ideal for protecting electrical circuits against overcurrent conditions. The fuse body is made of durable thermoplastic polyamide, ensuring excellent electrical insulation and mechanical strength. Its compact size with dimensions 8.35mm in length, 4.3mm width, and 7.7mm height support space-efficient PCB designs.
This radial fuse features 22mm leads with a diameter of 0.62mm, facilitating straightforward solder mounting on printed circuit boards. The fast acting fuse characteristic provides quick interception of fault currents, minimizing damage to sensitive components and enhancing overall system safety.
The fuse meets industry standards including CSA certification and RoHS compliance, guaranteeing environmental safety and product reliability. With a breaking capacity of 35A, it can safely interrupt fault currents and protect circuits effectively.
Designed for operation in a wide temperature range from -55°C to 125°C, this fuse performs reliably in demanding industrial, commercial, and consumer electronic applications. The radial lead orientation and thermoplastic body make it suitable for electronic assembly and repair tasks.
Applications include circuit protection in industrial automation systems, electrical control panels, consumer electronics, and other devices requiring reliable fast acting fuses. It is specifically engineered for PCB mounting in low current protective circuits.
Current rating of 100mA. Voltage rating of 250V. Fast acting fuse type. Thermoplastic polyamide body for insulation. Radial lead orientation with 22mm lead length. Compact dimensions supporting PCB integration. Breaking capacity 35A for safety.
Operating temperature from -55°C to 125°C. CSA certified and RoHS compliant. Manufactured in Taiwan, Province Of China. Choose RS PRO Non-Resettable Fuses for dependable, fast, and safe circuit protection to extend the operational lifespan of electrical and electronic equipment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this fuse is 100mA, providing precise overcurrent protection.
This fuse has a voltage rating of 250V, making it suitable for various electrical applications.
The dimensions of the fuse are 8.35mm in length, 4.3mm in width, and 7.7mm in height, allowing for compact PCB integration.
The breaking capacity of this non-resettable fuse is 35A, which supports safety during fault conditions.
The fuse body is made of thermoplastic polyamide, providing durability and electrical insulation.
The operating temperature range is from -55°C to 125°C, suitable for harsh environments.
The leads on this model are 22mm in length, facilitating easy PCB mounting.
This is a fast acting fuse, which ensures a rapid response to overload conditions.
The fuse conforms to CSA and RoHS standards, ensuring compliance and reliability.
The lead orientation is radial, which is designed for straightforward solder mounting on printed circuit boards.
This fuse is suitable for circuit protection in industrial automation systems, electrical control panels, and consumer electronics.
This model is manufactured in Taiwan, Province Of China.
